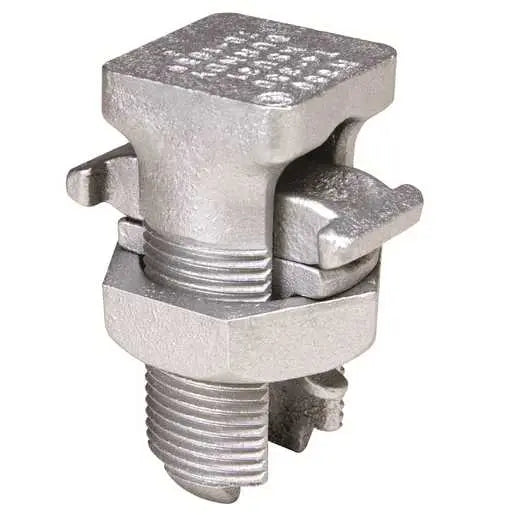

KSU31 - Burndy - 2.88" Tin Plated Split Bolt Connector with Spacer
Tin-plated, high-strength copper alloy SERVIT with spacer. Spacer separates dissimilar conductors and provides a long contact length that prevents high-pressure point contacts between run and tap conductors, 2.88 IN L.
- Tin-plated, high-strength copper alloy with a spacer
- Spacer separates dissimilar conductors and provides long contact length, preventing high-pressure point contacts between run and tap conductors
GENERAL SPECIFICATIONS
| Application | For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel |
| Catalog Number | KSU31 |
| Connector Type | Split Bolt |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 650 |
| Material | Copper |
| Plated | Y |
| Plating Type | Tin Plated |
| Sub Brand | UNIVERSAL SERVIT |
| Trade Name | SERVIT® |
| Type | KSU, Universal |
| UPC | 781810037003 |
| UPC 14 Digit GTIN | 00781810037003 |
Dimensions
| Dimension - Cross Flats inch | 1.69 in |
| Dimension - L Length Overall mm | 73 mm |
| Dimension - Length Overall inch | 3 |
| Dimension - Width inch | 1.36 in |
| Dimension - Width mm | 35 mm |
| Width | 1.36 in |
Conductor Related
| Conductor - AAAC 5005 Run | 195.7 (7) kcmil;246.9 (7) kcmil |
| Conductor - AAAC 5005 Run Range | 195.7 (7) kcmil-246.9 (7) kcmil |
| Conductor - AAAC 5005 Tap | 48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil;155.4 (7) kcmil;195.7 (7) kcmil;246.9 (7) kcmil |
| Conductor - AAAC 5005 Tap Range | 48.69 (7) kcmil-246.9 (7) kcmil |
| Conductor - AAAC 6201 Run | 195.7 (7) kcmil;246.9 (7) kcmil |
| Conductor - AAAC 6201 Run Range | 195.7 (7) kcmil-246.9 (7) kcmil |
| Conductor - AAAC 6201 Tap | 48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil;155.4 (7) kcmil;195.7 (7) kcmil;246.9 (7) kcmil |
| Conductor - AAAC 6201 Tap Range | 48.69 (7) kcmil-246.9 (7) kcmil |
| Conductor - ACSR Str Run | 3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG |
| Conductor - ACSR Str Run Range | 3/0 AWG - 4/0 AWG |
| Conductor - ACSR Str Tap | 4 (6/1) Swan AWG;4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG;1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG;3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG |
| Conductor - ACSR Str Tap Range | 4 AWG - 4/0 AWG |
| Conductor - AL Str Run | 4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil |
| Conductor - AL Str Run Range | 1/0AWG - 350 KCMIL |
| Conductor - AL Str Tap | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil |
| Conductor - AL Str Tap Range | 4 AWG - 350 KCMIL |
| Conductor - Copper Str Run | 4/0 AWG;250 kcmil;300 kcmil;350 kcmil |
| Conductor - Copper Str Run Range | 1/0AWG - 350 KCMIL |
| Conductor - Copper Str Tap | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil |
| Conductor - Copper Str Tap Range | 4 AWG - 350 KCMIL |
| Conductor - Galvanized Steel Str Size | 5/8 (19) in |
| Conductor - Galvanized Steel Str Size Range | 5/8 (19) in |
| Conductor Type |
|
Force Related
|
Installation Torque Recommended in-lb
|
650
|
Configuration
|
Connector Type
|
Split Bolt
|
Logistics
| Carton Quantity | 1 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1 |
