Description

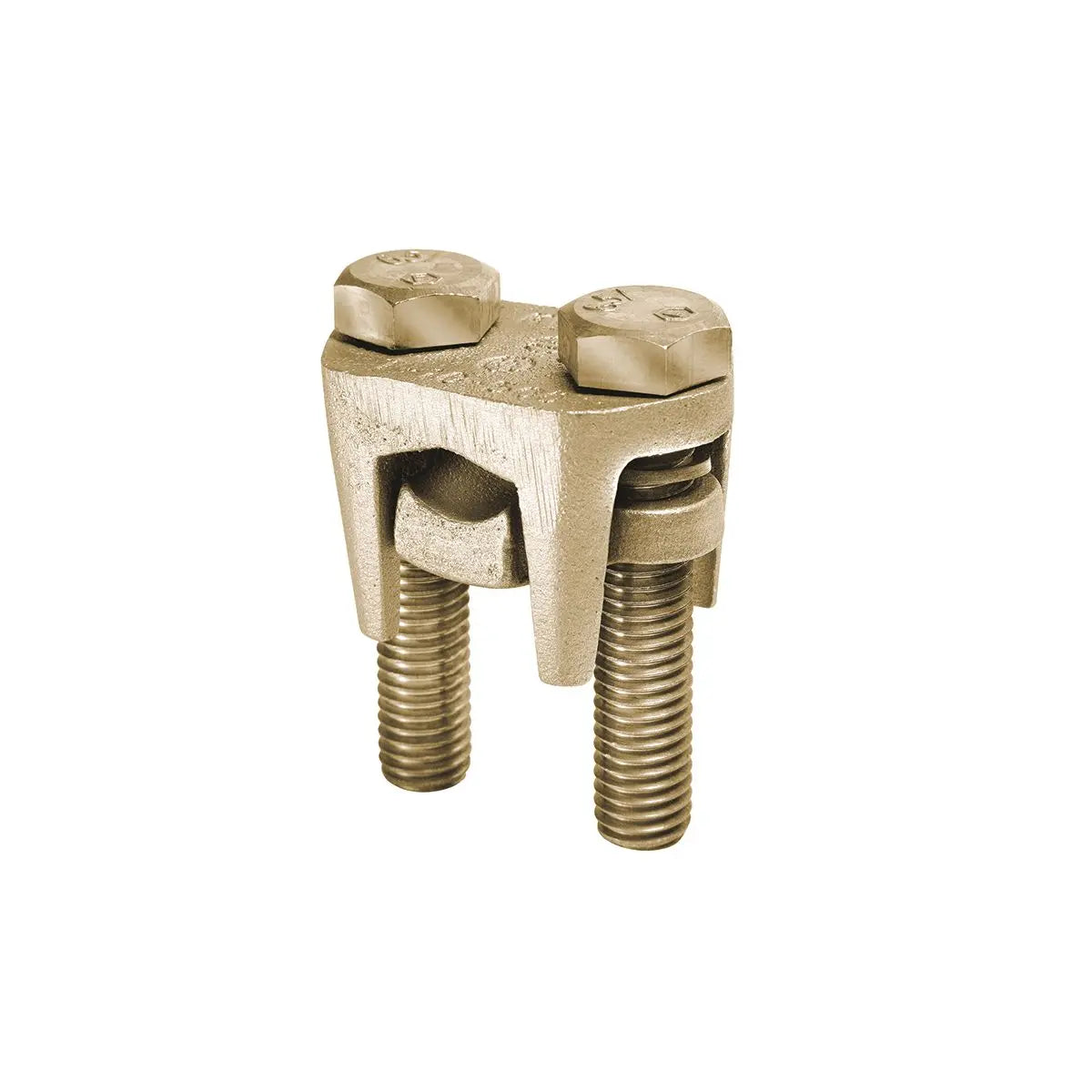

KVS31 - Burndy - 325" 2-Piece High Strength Copper Alloy Connector
Compact, two-piece, high strength, high copper alloy BURNDY OKLIP recommended for heavy duty connections. Neoprene rings hold DURIUM bolts in place during installation.Installed with ordinary wrench.Recommended tightening torque:325 in-lb.
Features: Compact, Two-Piece, High Strength, High Copper Alloy BURNDY OKLIP Recommended For Heavy Duty Connections, Neoprene Rings Hold DURIUM Bolts In Place During Installation, Installed With Ordinary Wrench, Conductor Type: Run And Tap: Copperweld, Commercial Stranded Copper, Solid Copperweld, Installation Torque: 325 IN-LB, Conductor Spacer: No
GENERAL SPECIFICATIONS
|
Application
|
For Copper, Copperweld
|
|
Catalog Number
|
KVS31
|
|
EU RoHS Indicator
|
Yes
|
|
Installation Torque Recommended in-lb
|
325 LBS/in
|
|
Material
|
Copper
|
|
Plated
|
N
|
|
Plating Type
|
unplated
|
|
Sub Brand
|
OKLIP
|
|
Trade Name
|
OKLIP™
|
|
Type
|
KVS, Compact
|
|
UPC
|
781810062791
|
|
UPC 14 Digit GTIN
|
00781810062791
|
Dimensions
|
Dimension - Height inch
|
2.38 in
|
|
Dimension - Height mm
|
60.45 mm
|
|
Dimension - Stud Size inch
|
1/2 in
|
|
Dimension - Width inch
|
2.12 in
|
Conductor Related
|
Conductor - Copper Str Run Range
|
250 kcmil- 350 kcmil
|
|
Conductor - Copper Str Tap Range
|
10 str. - 350 kcmil
|
|
Conductor Type
|
|
Force Related
|
Installation Torque Recommended in-lb |
325 LBS/in |
Logistics
| Carton Quantity | 11 |
|
Pallet Quantity |
2200 |
PRODUCT DATASHEET
