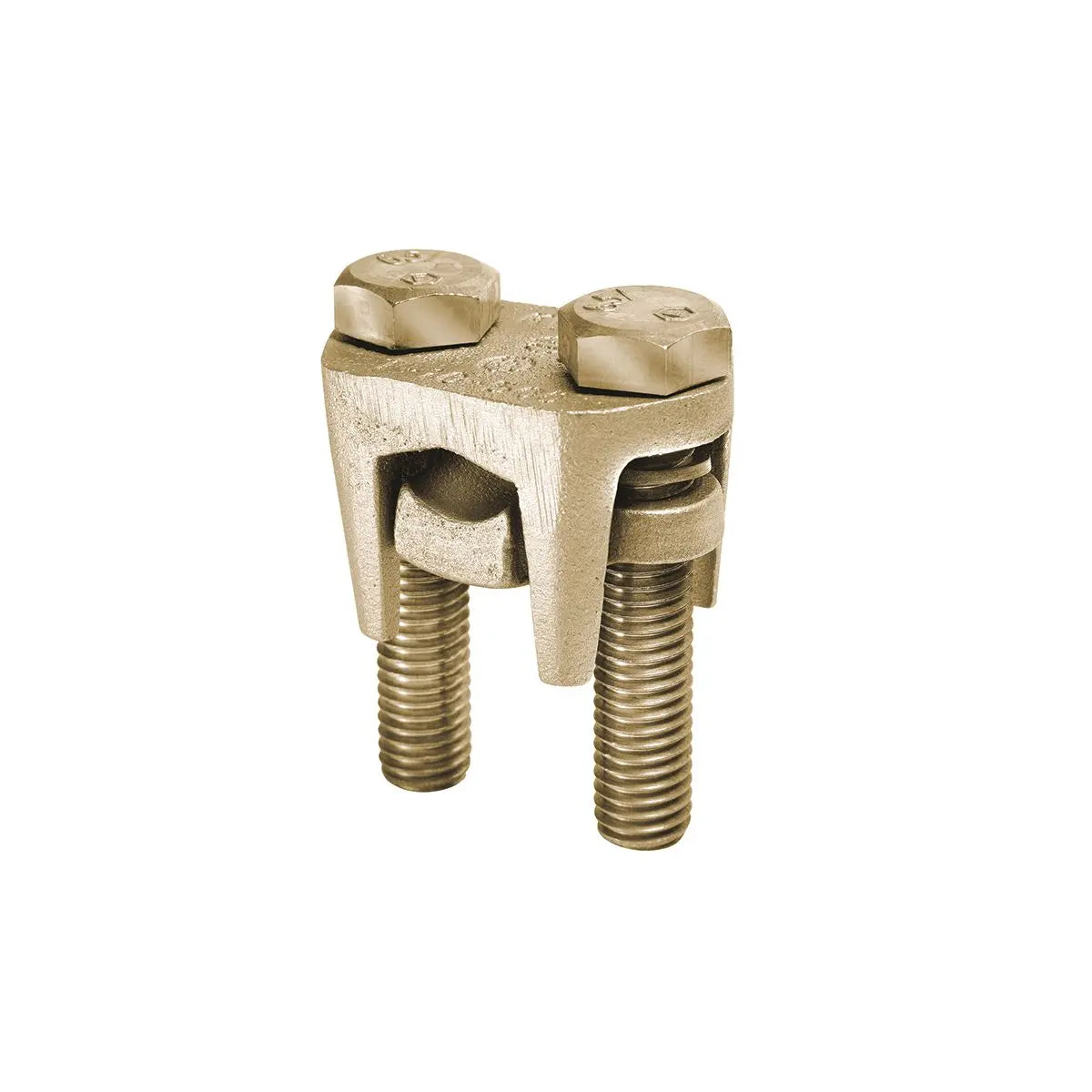

KVS34 - Burndy - 375" 2-Piece Service Connector with Neoprene Rings
Compact, two-piece, high strength, high copper alloy BURNDY OKLIP recommended for heavy duty connections. Neoprene rings hold DURIUM bolts in place during installation.Installed with ordinary wrench.Recommended tightening torque:375 in-lb.
Features: Compact, Two-Piece, High Strength, High Copper Alloy BURNDY OKLIP Recommended For Heavy Duty Connections, Neoprene Rings Hold DURIUM Bolts In Place During Installation, Installed With Ordinary Wrench, Conductor Type: Run And Tap: Copperweld, Commercial Stranded Copper, Solid Copperweld, Installation Torque: 375 IN-LB, Conductor Spacer: No
GENERAL SPECIFICATIONS
| Application |
For Copper, Copperweld |
| Catalog Number |
KVS34 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
375 LBS/in |
| Material |
Copper |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
OKLIP |
| Trade Name |
OKLIP(TM) |
| Type |
KVS, Compact |
| UPC |
781810063200 |
| UPC 14 Digit GTIN |
00781810063200 |
Dimensions
| Dimension - Height inch |
2.65 in |
| Dimension - Height mm |
67.31mm |
| Dimension - Stud Size inch |
1/2 in
|
| Dimension - Width inch |
2.20 in |
Conductor Related
| Conductor - Copper Str Run Range |
400 kcmil - 500 kcmil |
| Conductor - Copper Str Tap Range |
10 str. - 500 kcmil |
| Conductor Type |
- CU C Str-Run
- CU C Str-Tap
- CU Weld C Solid-Run
- CU Weld C Solid-Tap
|
Force Related
| Installation Torque Recommended in-lb
|
375 LBS/in |
Logistics
| Carton Quantity
|
12 |
| Pallet Quantity |
1620 |
PRODUCT DATASHEET
KVS34
