Description
GENERAL
| Application | For Copper And Copperweld, Heavy Duty Connections |

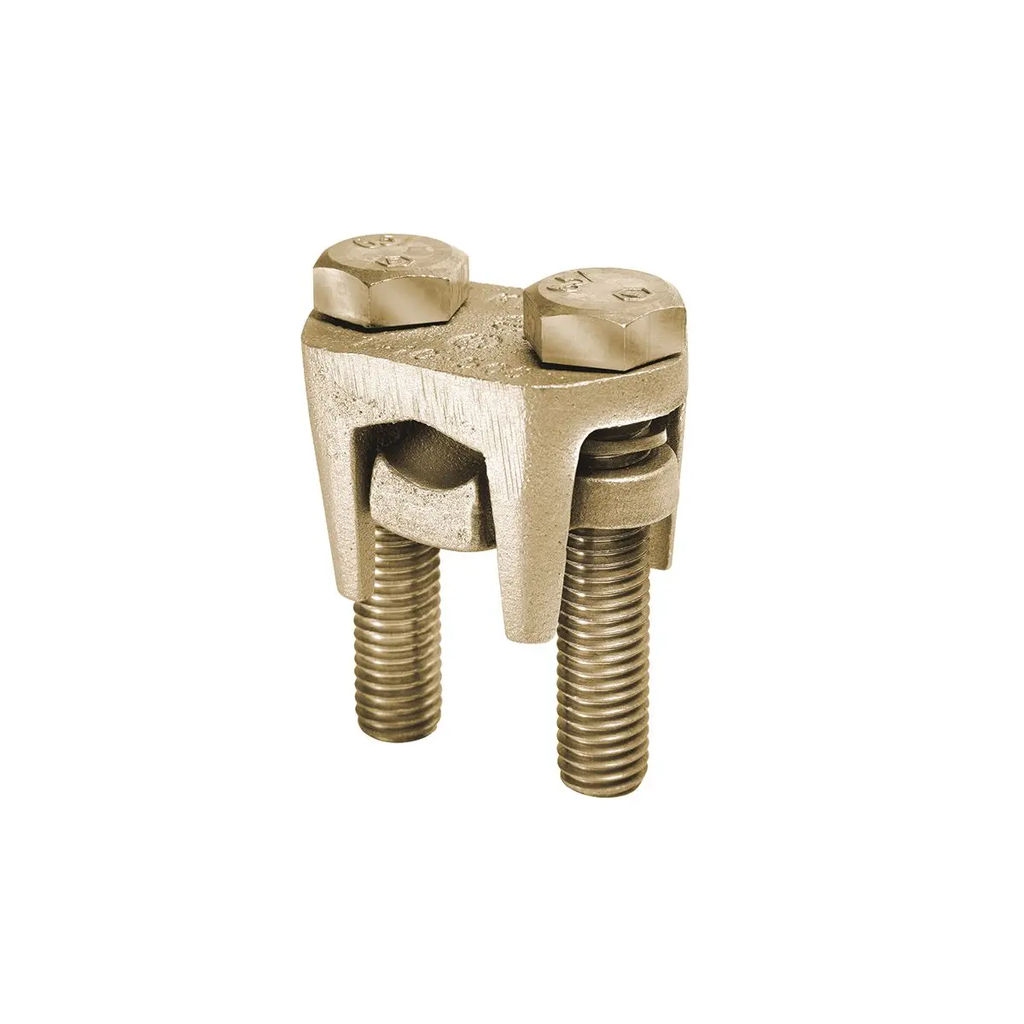

| Catalog Number | KVS40 |
| Installation Torque Recommended in-lb | 500 LBS/in |
| Material | Copper |
| Plated | No |
| Plating Type | Unplated |
| Product Family | Power Connectors>Split Bolts>KVS |
| Product Type | Mechanical |
| Sub Brand | OKLIP |
| Trade Name | OKLIP™ |
| Type | KVS |
| UPC | 781810063903 |
| UPC 14 Digit GTIN | 00781810063903 |
DIMENSIONS
| Dimension - Height inch | 3.19 in |
| Dimension - Height mm | 81.02 mm |
| Dimension - Stud Size inch | 1/2 in |
| Dimension - Width inch | 2.50 in |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CONDUCTOR RELATED
| Conductor - Copper Str Run Range | 400 - 800 kcmil |
| Conductor - Copper Str Tap Range | 3/0 str. - 800 kcmil |
| Conductor Type | CU C Str-Run CU C Str-Tap CU Weld C Solid-Run CU Weld C Solid-Tap |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | Contact Manufacturer |
| Certification - CSA Approved | No |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL486C |
| Standards - Industry Standards Met | UL486C |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 500 LBS/in |
LOGISTICS
| Carton Quantity | 10 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1440 |
Product Datasheet
KVS40
KVS40
