LAD7B10 - Schneider Electric - Square D Motor Control Part And Accessory

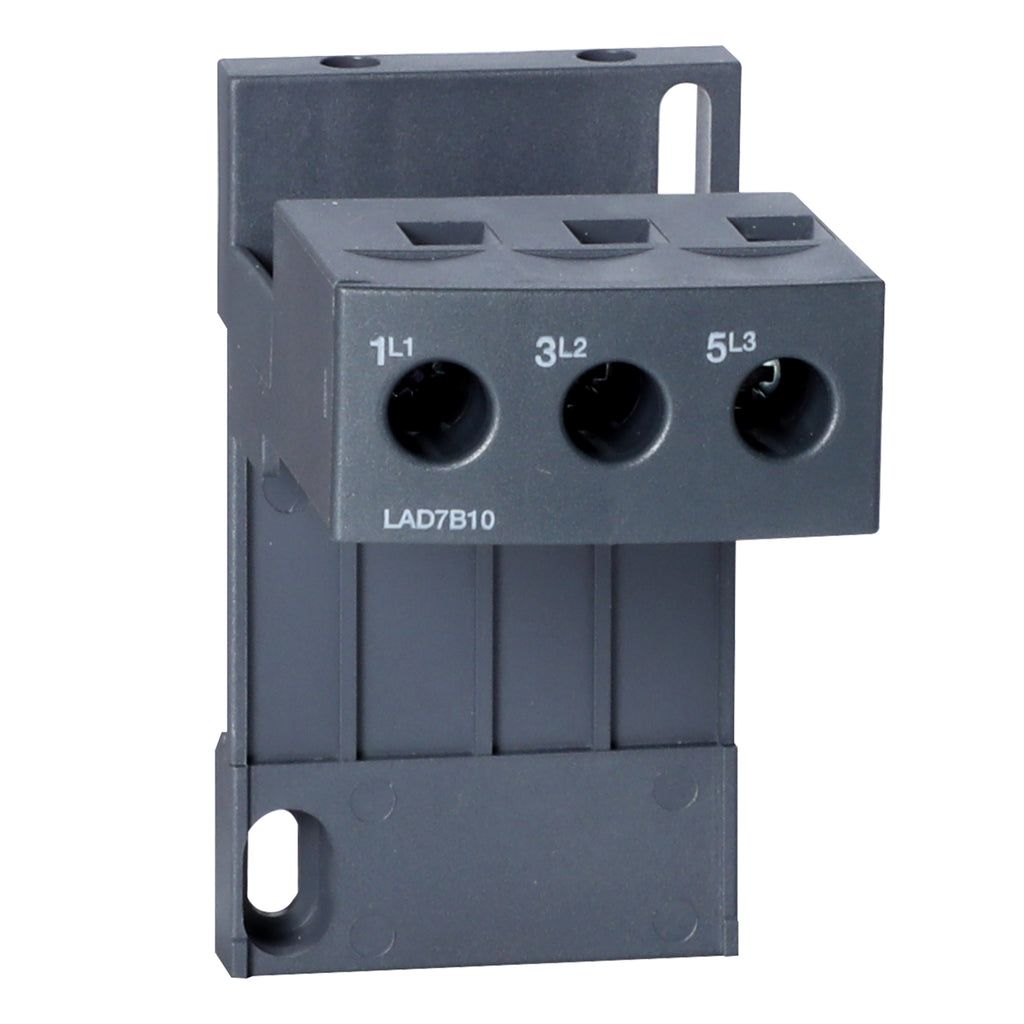

TeSys LRD overload relays can be mount separately from the contactor to make panel layout easier in some cases. To mount the overload relay separately and to have a connection terminal, this adaptor is used. This adaptor will work with LRD01 through LRD35 and LR3D01 through R3D35 overload relays. This adaptor bracket has screw clamp terminals.
GENERAL SPECIFICATIONS
Main
| Range |
TeSys |
| Product or Component Type |
Terminal block |
| Device short name |
LAD |
| Product Compatibility |
LRD01...35
LR3D01...D35 |
| Accessory / separate part category |
Connection accessory |
| Quantity per Set |
Set of 1 |
Complementary
| Connections - Terminals |
Screw terminals |
Ordering and shipping details
| Category |
US10I1222341 |
| Discount Schedule |
0I12 |
| GTIN |
3389110534290 |
| Returnability |
Yes |
| Country of origin |
CZ |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.9 in (4.7 cm) |
| Package 1 Width |
3.3 in (8.5 cm) |
| Package 1 Length |
3.0 in (7.5 cm) |
| Package weight(Lbs) |
2.5 oz (72.0 g) |
| Unit Type of Package 2 |
BB1 |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
3.2 in (8.1 cm) |
| Package 2 Width |
1.8 in (4.6 cm) |
| Package 2 Length |
2.8 in (7.2 cm) |
| Package 2 Weight |
28.9 oz (820 g) |
| Unit Type of Package 3 |
S02 |
| Number of Units in Package 3 |
30 |
| Package 3 Height |
5.9 in (15 cm) |
| Package 3 Width |
11.8 in (30 cm) |
| Package 3 Length |
15.7 in (40 cm) |
| Package 3 Weight |
5.456 lb(US) (2.475 kg) |
