Description

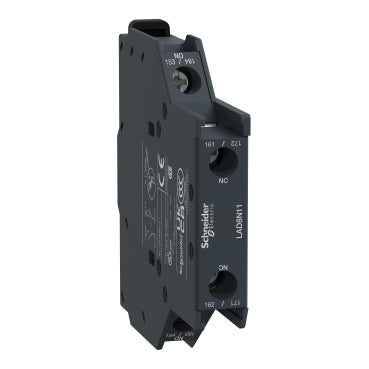

LAD8N11 - Schneider Electric - Square D Auxiliary Contact Block
TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. TeSys Deca contactors have been designed for perfect integration into control systems. Multi standards certified (IEC, UL, CSA, CCC, EAC). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.
GENERAL SPECIFICATIONS
| Main | |
| Range | TeSys |
| Product name | TeSys Deca |
| Product or Component Type | Auxiliary contact block |
| Range compatibility | TeSys Deca LC1D09…95 AC coil |
| TeSys Deca LC1D115/150 | |
| TeSys Deca LC1D40A…80A AC Coil | |
| TeSys Deca CAD AC coil | |
| TeSys F LC1F | |
| Mounting Location | Side |
| Pole contact composition | 1 NO + 1 NC |
| Contacts operation | Instantaneous |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15 |
| 1.04 A at 690 V AC-15 | |
| 0.55 A at 125 V DC-13 | |
| 0.1 A at 600 V DC-13 | |
| [Ui] rated insulation voltage | 690 V IEC 60947-5-1 |
| 600 V UL | |
| 600 V CSA | |
| [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) |
| Standards | EN/IEC 60947-5-1 |
| UL 60947-5-1 | |
| CSA C22.2 No 60947-5-1 | |
| IEC 60335-1:Clause 30.2 | |
| IEC 60335-2-40:Annex JJ | |
| UL 60335-2-40:Annex JJ | |
| Product Certifications | CB Scheme |
| UL | |
| CSA | |
| CCC | |
| EAC | |
| UKCA | |
| Complementary | |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 |
| 250 A DC conforming to IEC 60947-5-1 | |
| Permissible short-time rating | 100 A 1 s |
| 120 A 500 ms | |
| 140 A 100 ms | |
| Protection type | GG fuse 10 A |
| Mechanical durability | 30 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact |
| 1.5 ms on energisation no overlap between NC and NO contact | |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end |
| screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end | |
| screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end | |
| screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end | |
| screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)rigid without cable end | |
| screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)rigid without cable end | |
| Tightening torque | 15.05 lbf.in (1.7 N.m) flat Ø 6 mm |
| 15.05 lbf.in (1.7 N.m) Philips No 2 | |
| 15.05 lbf.in (1.7 N.m) pozidriv No 2 | |
| Height | 2.8 in (72 mm) |
| Width | 0.5 in (12.5 mm) |
| Depth | 2.8 in (71.3 mm) |
| Environment | |
| Environmental characteristic | Normal environment |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH IEC 60068 |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) |
| Operating altitude | 9842.52 ft (3000 m) |
| Ordering and shipping details | |
| Category | US10I1222341 |
| Discount Schedule | 0I12 |
| GTIN | 3389110384673 |
| Returnability | Yes |
| Country of origin | ID |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.142 in (2.900 cm) |
| Package 1 Width | 2.874 in (7.300 cm) |
| Package 1 Length | 3.189 in (8.100 cm) |
| Package weight(Lbs) | 2.116 oz (60.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 9.092 lb(US) (4.124 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 960 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 174.165 lb(US) (79.000 kg) |
