LAD9R1 - Schneider Electric - Square D Auxiliary Contact Block

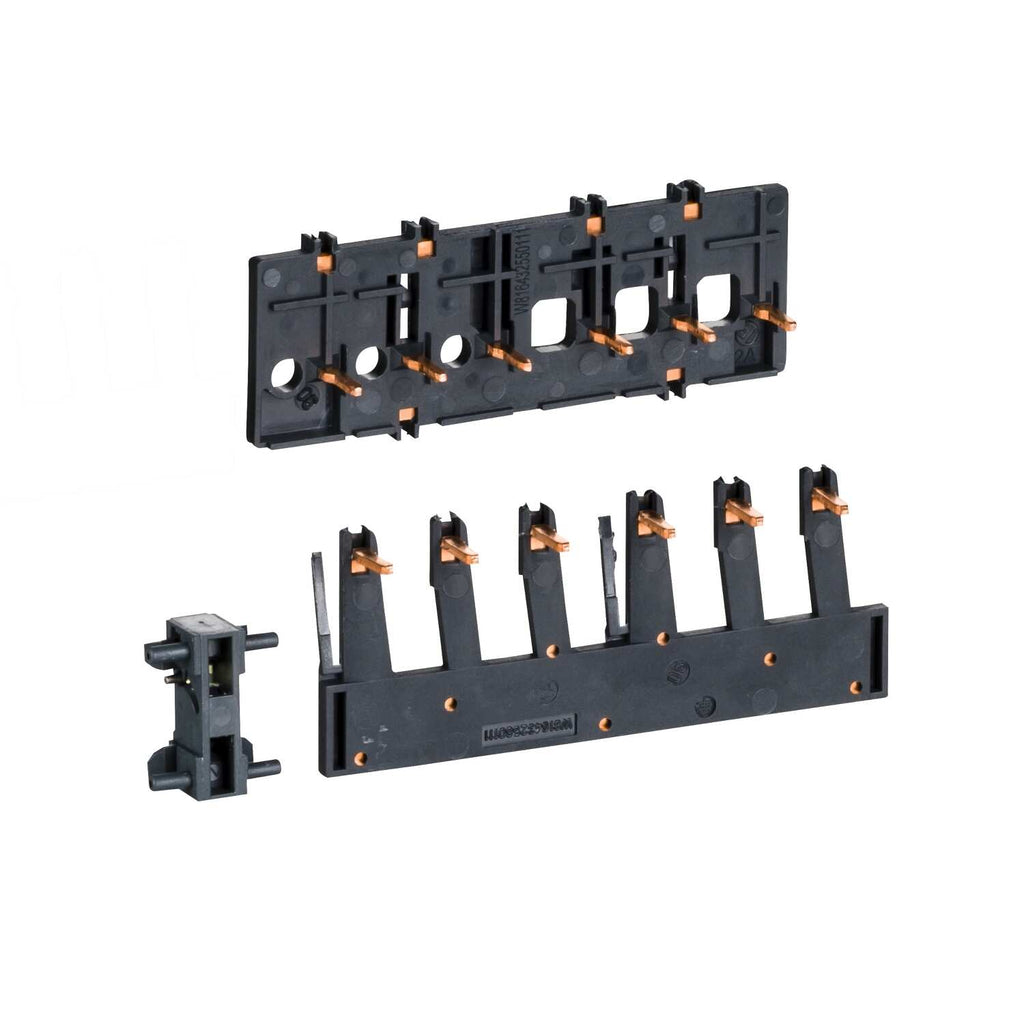

TeSys Deca kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2 (without electrical interlocking), a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.
GENERAL SPECIFICATIONS
| Range of Product | TeSys Deca |
|---|---|
| Range | TeSys Linergy |
| Device short name | LAD9 |
| Product or Component Type | Kits for reversing contactor |
| Poles description | 3P |
| Range compatibility | TeSys TeSys D contactor TeSys TeSys Deca |
| Product Compatibility | LC1D09 LC1D12 LC1D18 LC1D25 LC1D32 LC1D38 |
| Kit composition | Mechanical interlock Set of power connection |
|---|---|
| Net Weight | 0.099 lb(US) (0.045 kg) |
| Category | US10I1222341 |
|---|---|
| Discount Schedule | 0I12 |
| GTIN | 3389110393972 |
| Returnability | Yes |
| Country of origin | CZ |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.59 in (1.500 cm) |
| Package 1 Width | 2.17 in (5.500 cm) |
| Package 1 Length | 4.33 in (11.000 cm) |
| Package 1 Weight | 2.152 oz (61.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.70 in (9.400 cm) |
| Package 2 Width | 3.94 in (10.000 cm) |
| Package 2 Length | 5.91 in (15.000 cm) |
| Package 2 Weight | 22.963 oz (651.000 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 140 |
| Package 3 Height | 11.81 in (30.000 cm) |
| Package 3 Width | 11.81 in (30.000 cm) |
| Package 3 Length | 15.75 in (40.000 cm) |
| Package 3 Weight | 20.876 lb(US) (9.469 kg) |
