LAD9R1V - Schneider Electric - Square D Reversing Mechanical Interlock Kit

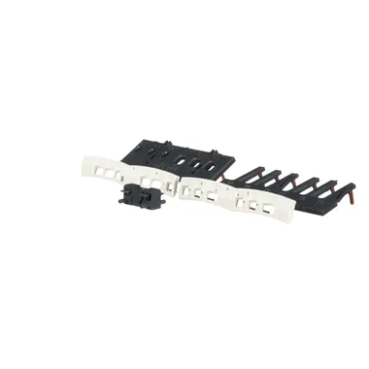

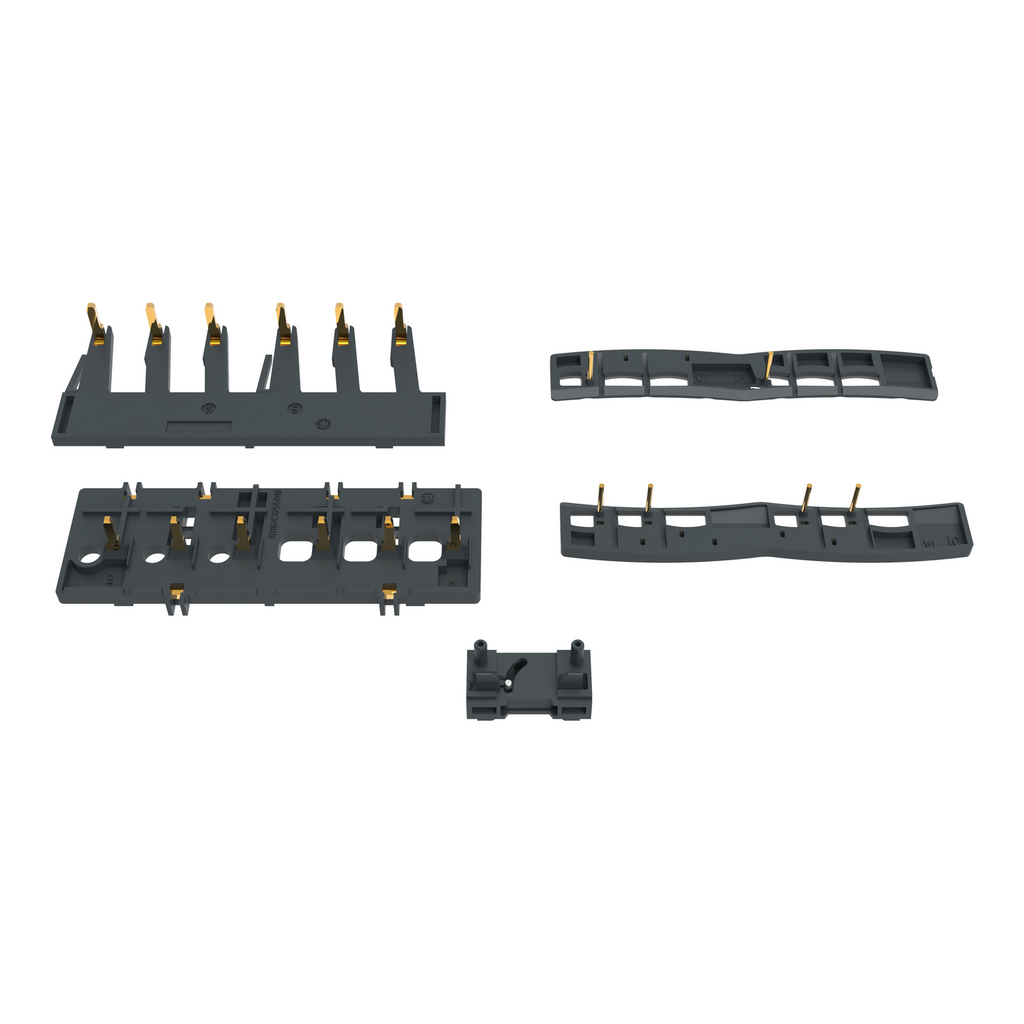

TeSys Deca kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2, an electrical interlocking LAD9V1, a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.
GENERAL SPECIFICATIONS
| Main | |
| Range of Product | TeSys Deca |
| Range | TeSys |
| Linergy | |
| Device short name | LAD9 |
| Product or Component Type | Kits for reversing contactor |
| Poles description | 3P |
| Range compatibility | TeSys TeSys D contactor |
| TeSys TeSys Deca | |
| Product Compatibility | LC1D09 |
| LC1D12 | |
| LC1D18 | |
| LC1D25 | |
| LC1D32 | |
| LC1D38 | |
| Complementary | |
| Kit composition | Electrical and mechanical interlock |
| Set of power connection | |
| Net Weight | 0.099 lb(US) (0.045 kg) |
| Ordering and shipping details | |
| Category | US10I1222341 |
| Discount Schedule | 0I12 |
| GTIN | 3389110392869 |
| Returnability | Yes |
| Country of origin | CZ |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.378 in (3.500 cm) |
| Package 1 Width | 3.150 in (8.000 cm) |
| Package 1 Length | 4.331 in (11.000 cm) |
| Package weight(Lbs) | 2.434 oz (69.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.780 in (9.600 cm) |
| Package 2 Width | 3.858 in (9.800 cm) |
| Package 2 Length | 5.906 in (15.000 cm) |
| Package 2 Weight | 25.608 oz (726.000 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 140 |
| Package 3 Height | 11.811 in (30.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 23.510 lb(US) (10.664 kg) |
