Description

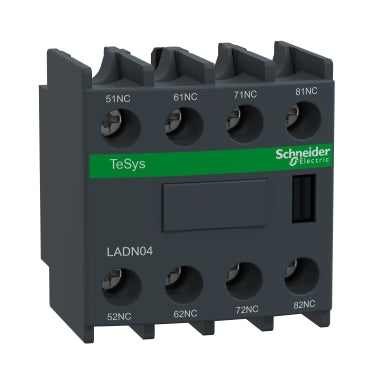

LADN04 - Schneider Electric - Square D Auxiliary Contact Block
GENERAL SPECIFICATIONS
| Main | |
| Range | TeSys |
| TeSys Deca | |
| Product name | TeSys Deca |
| Product or Component Type | Auxiliary contact block |
| Device short name | LADN |
| Range compatibility | TeSys D LC1D |
| TeSys D CAD | |
| TeSys F LC1F | |
| TeSys F CR1F | |
| TeSys Deca CAD | |
| TeSys Deca LC1D | |
| Mounting Location | Front |
| Pole contact composition | 4 NC |
| Contacts operation | Instantaneous |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15 |
| 1.04 A at 690 V AC-15 | |
| 0.55 A at 125 V DC-13 | |
| 0.1 A at 600 V DC-13 | |
| [Ui] rated insulation voltage | 690 V IEC 60947-5-1 |
| 600 V UL | |
| 600 V CSA | |
| [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) |
| Standards | EN/IEC 60947-5-1 |
| GB/T 14048.5 | |
| EN 50012 | |
| UL 60947-5-1 | |
| CSA C22.2 No 60947-5-1 | |
| IEC 60335-1:Clause 30.2 | |
| IEC 60335-2-40:Annex JJ | |
| UL 60335-2-40:Annex JJ | |
| Product Certifications | CB Scheme |
| UL | |
| CSA | |
| CCC | |
| EAC | |
| UKCA | |
| Complementary | |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 |
| 250 A DC conforming to IEC 60947-5-1 | |
| Permissible short-time rating | 100 A 1 s |
| 120 A 500 ms | |
| 140 A 100 ms | |
| Protection type | GG fuse 10 A |
| Mechanical durability | 30 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact |
| 1.5 ms on energisation no overlap between NC and NO contact | |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end |
| screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end | |
| screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end | |
| screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end | |
| screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)rigid without cable end | |
| screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)rigid without cable end | |
| Tightening torque | 15.05 lbf.in (1.7 N.m) flat Ø 6 mm |
| 15.05 lbf.in (1.7 N.m) Philips No 2 | |
| 15.05 lbf.in (1.7 N.m) pozidriv No 2 | |
| Height | 1.9 in (48 mm) |
| Width | 1.7 in (44 mm) |
| Depth | 1.7 in (42 mm) |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| color | Dark grey |
| Environment | |
| Environmental characteristic | Normal environment |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH IEC 60068 |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) |
| Operating altitude | 9842.52 ft (3000 m) |
| Ordering and shipping details | |
| Category | US10I1222341 |
| Discount Schedule | 0I12 |
| GTIN | 3389110383904 |
| Returnability | Yes |
| Country of origin | CZ |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.969 in (5.000 cm) |
| Package 1 Width | 1.654 in (4.200 cm) |
| Package 1 Length | 1.969 in (5.000 cm) |
| Package weight(Lbs) | 2.187 oz (62.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 160 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 23.144 lb(US) (10.498 kg) |
