Description

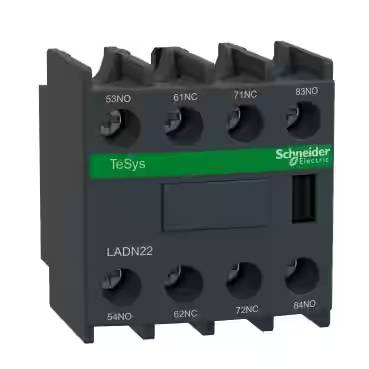

LADN22 - Schneider Electric - Square D Auxiliary Contact Block
TeSys D contactors have a variety of auxiliary contacts. This auxiliary contact mounts on the top of a contactor with rating from 9 amp to 150 amp. The two NO and two NC contacts can be used in the control circuit. TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for any type of application. TeSys D contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.
GENERAL SPECIFICATIONS
| Main | |
| Range | TeSys |
| TeSys Deca | |
| Product name | TeSys Deca |
| Product or Component Type | Auxiliary contact block |
| Device short name | LADN |
| Range compatibility | TeSys D CAD |
| TeSys D LC1D | |
| TeSys F LC1F | |
| TeSys F CR1F | |
| TeSys Deca CAD | |
| TeSys Deca LC1D | |
| Mounting Location | Front |
| Pole contact composition | 2 NO + 2 NC |
| Contacts operation | Instantaneous |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A120 V AC-15 |
| 1.04 A690 V AC-15 | |
| 0.55 A125 V DC-13 | |
| 0.1 A600 V DC-13 | |
| [Ui] rated insulation voltage | 690 V IEC 60947-5-1 |
| 600 V UL | |
| 600 V CSA | |
| [Ith] conventional free air thermal current | 10 A 140 °F (60 °C) |
| Standards | EN/IEC 60947-5-1 |
| GB/T 14048.5 | |
| Product Certifications | CB |
| UL | |
| CSA | |
| CCC | |
| UKCA | |
| Complementary | |
| Irms rated making capacity | 140 A AC IEC 60947-5-1 |
| 250 A DC IEC 60947-5-1 | |
| Permissible short-time rating | 100 A 140 °F (60 °C) 1 s |
| 120 A 140 °F (60 °C) 500 ms | |
| 140 A 140 °F (60 °C) 100 ms | |
| Protection type | GG fuse 10 A |
| Mechanical durability | 30 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact |
| 1.5 ms on energisation no overlap between NC and NO contact | |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end |
| screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end | |
| screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end | |
| screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end | |
| screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)rigid without cable end | |
| screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)rigid without cable end | |
| Tightening torque | 15.05 lbf.in (1.7 N.m) flat Ø 6 mm |
| 15.05 lbf.in (1.7 N.m) Philips No 2 | |
| 15.05 lbf.in (1.7 N.m) pozidriv No 2 | |
| Height | 1.89 in (48 mm) |
| Width | 1.73 in (44 mm) |
| Depth | 1.65 in (42 mm) |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| color | Dark grey |
| Environment | |
| Environmental characteristic | Normal environment |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH IEC 60068 |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) |
| Operating altitude | 9842.52 ft (3000 m) |
| Ordering and shipping details | |
| Category | 22341-CONTACTOR,D,K,&F ACCESS |
| Discount Schedule | I12 |
| GTIN | 3.38911E+12 |
| Returnability | Yes |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.97 in (5 cm) |
| Package 1 Width | 1.97 in (5 cm) |
| Package 1 Length | 1.73 in (4.4 cm) |
| Package 1 Weight | 2.12 oz (60 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 1.97 in (5 cm) |
| Package 2 Width | 3.39 in (8.6 cm) |
| Package 2 Length | 10.24 in (26 cm) |
| Package 2 Weight | 21.73 oz (616 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 11.81 in (30 cm) |
| Package 3 Width | 11.81 in (30 cm) |
| Package 3 Length | 15.75 in (40 cm) |
| Package 3 Weight | 22.83 lb(US) (10.356 kg) |
