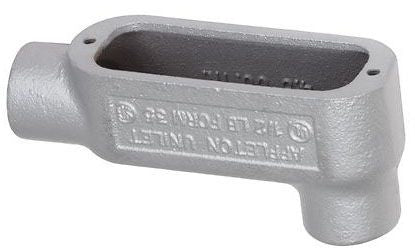

LB250A - Appleton - 2-1/2 Inch LB Conduit Body, Epoxy Coated Aluminum
Roll over image to zoom in Click on image to zoom
LB250A - Appleton - 2-1/2 Inch LB Conduit Body, Epoxy Coated Aluminum

LB250A - Appleton - 2-1/2 Inch LB Conduit Body, Epoxy Coated Aluminum

AppletonSKU: APPLB250A
Price:
$221.91
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Specifications

Access Opening Back
Configuration LB
Hub Location 90 Degree
Number of Hubs 2
Hub Size 2-1/2 Inch
Size 13.69 Inch Length x 5.25 Inch Height
Installation Threaded
Material Epoxy Powder Coated Copper-Free Sand Cast Aluminum (Body), Stainless Steel (Cover Screw)
Form Type Form 85
Approval UL 514A/B, CSA C22.2
Used On IMC/Rigid Conduit
Brand Name Unilets®, Form 85™
Additional Information Wire Size (3) 300 MCM; Capacity 139 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1
Product Datasheet
LB250A
