Description

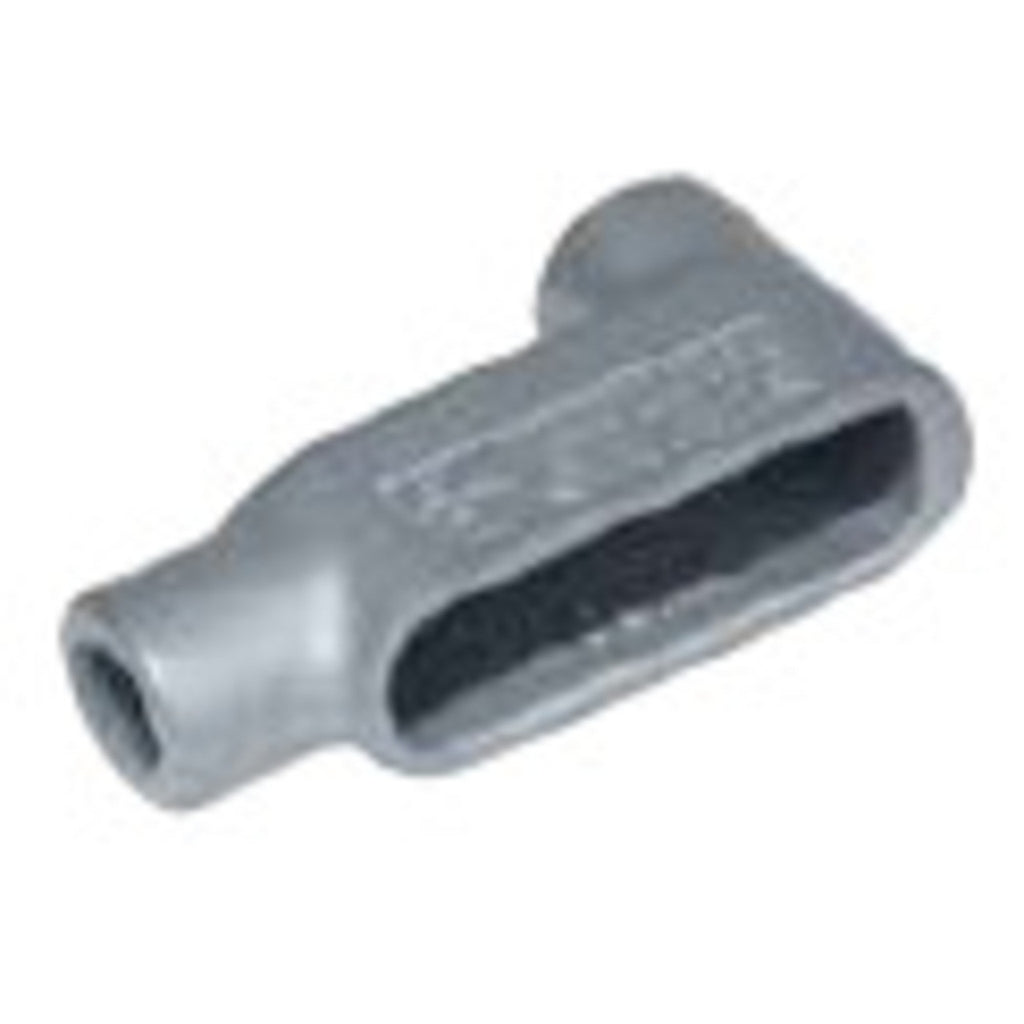

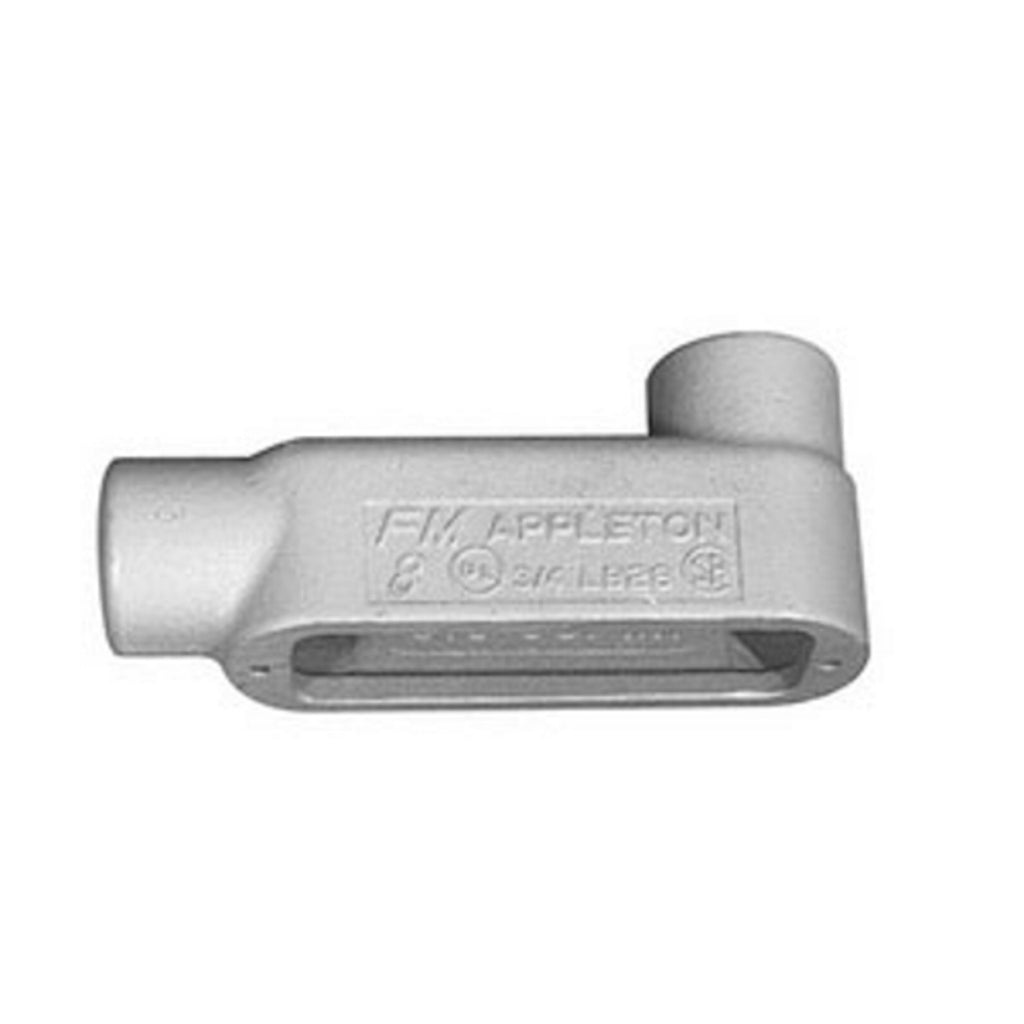

LB58 - Appleton - 1‑1/2" Form 8 Type LB Grayloy Iron Conduit Body
Grayloy iron LB body for 1½" conduit, Form 8 specification. Engineered for demanding installations needing large conductor volume. Used in hazardous or industrial areas. Long-lasting and rigid design resists deformation.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- Standard Materials and Finishes
- Grayloy-iron bodies and covers with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; stamped steel covers with zinc electroplate; stainless steel cover screws; neoprene gaskets
- Optional Finishes
- PVC coating available on select bodies and covers. See catalog pages for details
