| Main |
| Range |
TeSys |
| Range of Product |

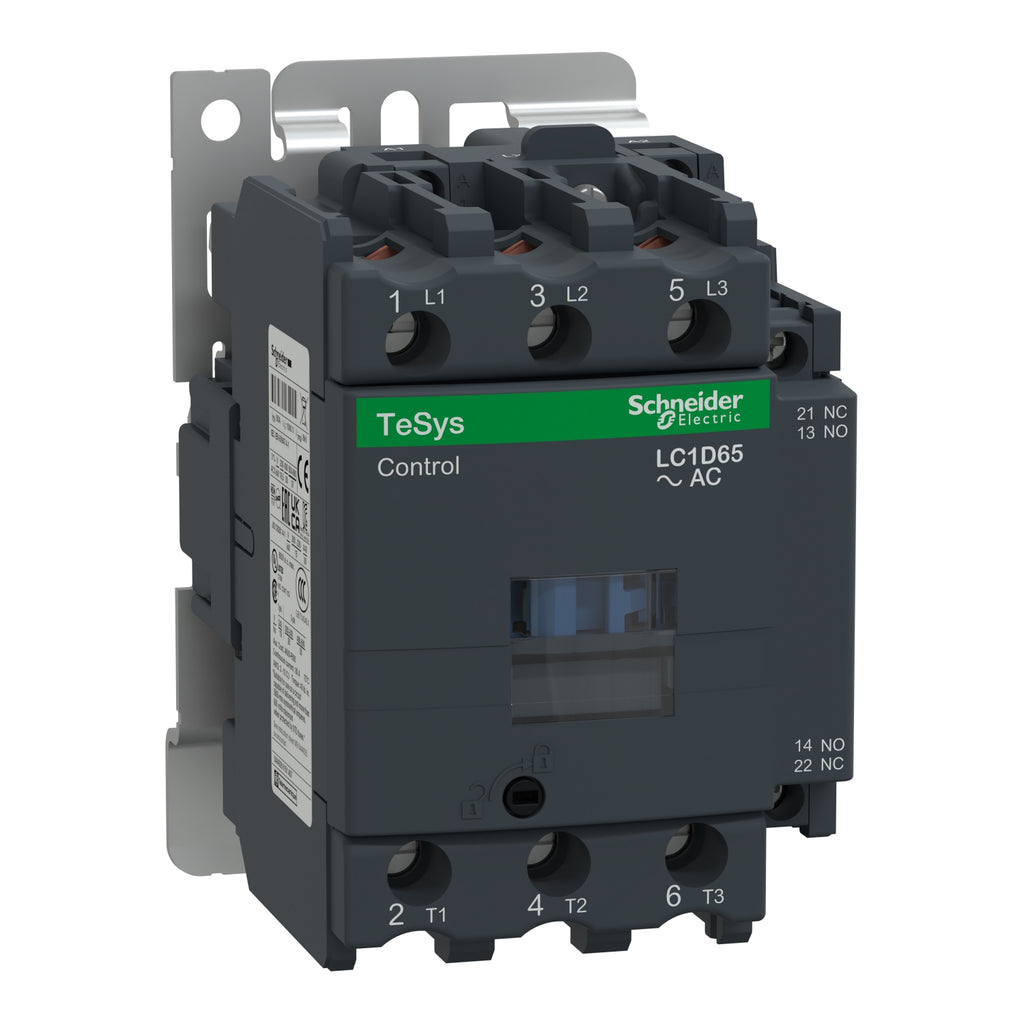

TeSys Deca |
| Product or Component Type |
Contactor |
| Device short name |
LC1D |
| Contactor application |
Motor control |
| Resistive load |
| Utilisation category |
AC-1 |
| AC-2 |
| AC-4 |
| AC-3 |
| Poles description |
3P |
| [Ue] rated operational voltage |
Power circuit <= 690 V AC 25...400 Hz |
| [Ie] rated operational current |
80 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit |
| 65 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit |
| [Uc] control circuit voltage |
120 V AC 50/60 Hz |
| Complementary |
| Motor power kW |
30 kW at 440 V AC 50/60 Hz (AC-3) |
| 11 kW at 400 V AC 50/60 Hz (AC-4) |
| 30 kW at 380...400 V AC 50/60 Hz (AC-3) |
| 30 kW at 415 V AC 50/60 Hz (AC-3) |
| 37 kW at 1000 V AC 50/60 Hz (AC-3) |
| 37 kW at 500 V AC 50/60 Hz (AC-3) |
| 37 kW at 660...690 V AC 50/60 Hz (AC-3) |
| 18.5 kW at 220...230 V AC 50/60 Hz (AC-3) |
| Maximum Horse Power Rating |
10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA |
| 10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL |
| 20 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to CSA |
| 20 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to UL |
| 20 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to CSA |
| 20 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to UL |
| 5 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA |
| 5 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL |
| 50 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to CSA |
| 50 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to UL |
| 50 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to CSA |
| 50 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to UL |
| Compatibility code |
LC1D |
| Pole contact composition |
3 NO |
| Protective cover |
With |
| [Ith] conventional free air thermal current |
10 A (at 140 °F (60 °C)) for control circuit |
| 80 A (at 140 °F (60 °C)) for power circuit |
| Irms rated making capacity |
140 A AC for control circuit conforming to IEC 60947-5-1 |
| 1000 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity |
1000 A at 440 V for power circuit conforming to IEC 60947 |
| Associated fuse rating |
10 A gG for control circuit conforming to IEC 60947-5-1 |
| 125 A gG at <= 690 V coordination type 1 for power circuit |
| 125 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance |
1 mOhm - Ith 80 A 50 Hz for power circuit |
| Power dissipation per pole |
6.4 W AC-1 |
| [Ui] rated insulation voltage |
Control circuit 600 V CSA |
| Control circuit 600 V UL |
| Power circuit 600 V CSA |
| Power circuit 600 V UL |
| Control circuit 690 V IEC 60947-1 |
| Power circuit 690 V IEC 60947-1 |
| Overvoltage category |
III |
| [Uimp] rated impulse withstand voltage |
8 kV IEC 60947 |
| Safety reliability level |
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 |
| B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Mechanical durability |
6 Mcycles |
| Control circuit type |
AC 50/60 Hz |
| Coil technology |
Without built-in bidirectional peak limiting diode suppressor |
| Control circuit voltage limits |
0.3...0.6 Uc (140 °F (60 °C)):drop-out AC 50/60 Hz |
| 0.8...1.1 Uc (140 °F (60 °C)):operational AC 50 Hz |
| 0.85...1.1 Uc (140 °F (60 °C)):operational AC 60 Hz |
| Inrush power in VA |
140 VA cos phi 0.75 (at 68 °F (20 °C)) |
| 160 VA cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in VA |
13 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| 15 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Heat dissipation |
4…5 W at 50/60 Hz for control circuit |
| Operating time |
12...26 ms closing |
| 4...19 ms opening |
| Maximum operating rate |
3600 cyc/h at 60 °C |
| Connections - terminals |
Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end |
| Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end |
| Control circuit: screw clamp terminals 1 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible without cable end |
| Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible without cable end |
| Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end |
| Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end |
| Power circuit: connector 1 0.004…0.05 in² (2.5…35 mm²) - cable stiffness: solid with cable end |
| Power circuit: connector 2 0.004…0.05 in² (2.5…35 mm²) - cable stiffness: solid with cable end |
| Power circuit: connector 1 0.004…0.05 in² (2.5…35 mm²) - cable stiffness: flexible without cable end |
| Power circuit: connector 2 0.004…0.04 in² (2.5…25 mm²) - cable stiffness: flexible without cable end |
| Power circuit: connector 1 0.004…0.05 in² (2.5…35 mm²) - cable stiffness: flexible with cable end |
| Power circuit: connector 2 0.004…0.05 in² (2.5…35 mm²) - cable stiffness: flexible with cable end |
| Tightening torque |
Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminal flat Ø 6 mm |
| Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminal Philips No 2 |
| Power circuit 44.3 lbf.in (5 N.m) screw clamp terminal flat Ø 6 mm |
| Power circuit 44.3 lbf.in (5 N.m) screw clamp terminal flat Ø 8 mm |
| Auxiliary contact composition |
1 NO + 1 NC |
| Auxiliary contacts type |
Mirror contact 1 NC IEC 60947-4-1 |
| Mechanically linked 1 NO + 1 NC IEC 60947-5-1 |
| Terminals description ISO n°1 |
(A1-A2)CO |
| (13-14)NO |
| (21-22)NC |
| Minimum switching voltage |
17 V for control circuit |
| Minimum switching current |
5 mA for control circuit |
| Insulation resistance |
> 10 MOhm for control circuit |
| Non-overlap time |
1.5 ms on de-energisation between NC and NO contacts |
| 1.5 ms on energisation between NC and NO contacts |
| Mounting Support |
Rail |
| Plate |
| Environment |
| Standards |
EN 60947-5-1 |
| CSA C22.2 No 14 |
| EN 60947-4-1 |
| UL 60947-4-1 |
| IEC 60947-4-1 |
| IEC 60947-5-1 |
| Product Certifications |
CCC |
| UL |
| BV |
| CSA |
| LROS (pending) |
| GOST |
| RINA |
| GL |
| DNV |
| IP degree of protection |
IP2X IEC 60529 |
| IP2X VDE 0106 |
| Climatic withstand |
IACS E10 exposure to damp heat |
| Permissible ambient air temperature around the device |
23…140 °F (-5…60 °C) |
| -40…158 °F (-40…70 °C) at Uc |
| Operating altitude |
9842.52 ft (3000 m) without derating |
| Fire resistance |
1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance |
V1 conforming to UL 94 |
| Mechanical robustness |
Shocks contactor opened 10 Gn for 11 ms) |
| Shocks contactor closed 15 Gn for 11 ms) |
| Vibrations contactor opened 2 Gn, 5...300 Hz) |
| Vibrations contactor closed 4 Gn, 5...300 Hz) |
| Height |
5 in (127 mm) |
| Width |
3.0 in (75 mm) |
| Depth |
4.7 in (119 mm) |
| Net Weight |
3.09 lb(US) (1.4 kg) |
| Ordering and shipping details |
| Category |
US10I1222357 |
| Discount Schedule |
0I12 |
| GTIN |
3389110436976 |
| Returnability |
Yes |
| Country of origin |
CZ |
| Packing Units |
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
5.512 in (14.000 cm) |
| Package 1 Width |
5.315 in (13.500 cm) |
| Package 1 Length |
3.740 in (9.500 cm) |
| Package weight(Lbs) |
3.172 lb(US) (1.439 kg) |
| Unit Type of Package 2 |
S02 |
| Number of Units in Package 2 |
5 |
| Package 2 Height |
5.906 in (15.000 cm) |
| Package 2 Width |
11.811 in (30.000 cm) |
| Package 2 Length |
15.748 in (40.000 cm) |
| Package 2 Weight |
16.486 lb(US) (7.478 kg) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
80 |
| Package 3 Height |
29.528 in (75.000 cm) |
| Package 3 Width |
23.622 in (60.000 cm) |
| Package 3 Length |
31.496 in (80.000 cm) |
| Package 3 Weight |
290.525 lb(US) (131.780 kg) |
