Description
| Main | |
|---|---|
| Range | TeSys |
| Range of Product | TeSys Deca |
| Product or Component Type | Contactor |
| Device short name | LC1D |
| Contactor application | Resistive loadMotor control |
| Utilisation category | AC-3AC-3eAC-4AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit <= 690 V AC 25...400 Hz |
| [Ie] rated operational current | 95 A (at <140 °F (60 °C)) at <= 440 V AC-3 for power circuit125 A (at <140 °F (60 °C)) at <= 1000 V AC-1 for power circuit95 A (at <140 °F (60 °C)) at <= 440 V AC-3e for power circuit |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Complementary | |
| Motor power kW | 25 kW at 220...230 V AC 50 Hz (AC-3)45 kW at 380...400 V AC 50 Hz (AC-3)45 kW at 415...440 V AC 50 Hz (AC-3)55 kW at 500 V AC 50 Hz (AC-3)45 kW at 660...690 V AC 50 Hz (AC-3)15 kW at 400 V AC 50 Hz (AC-4)25 kW at 220...230 V AC 50 Hz (AC-3e)45 kW at 380...400 V AC 50 Hz (AC-3e)45 kW at 415...440 V AC 50 Hz (AC-3e)55 kW at 500 V AC 50 Hz (AC-3e)45 kW at 660...690 V AC 50 Hz (AC-3e) |
| Maximum Horse Power Rating | 7.5 hp at 120 V AC 60 Hz for 1 phase motors15 hp at 230/240 V AC 60 Hz for 1 phase motors30 hp at 200/208 V AC 60 Hz for 3 phase motors30 hp at 230/240 V AC 60 Hz for 3 phase motors60 hp at 460/480 V AC 60 Hz for 3 phase motors60 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) for signalling circuit125 A (at 140 °F (60 °C)) for power circuit |
| Irms rated making capacity | 1100 A at 440 V AC for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 1100 A 104 °F (40 °C) - 1 s for power circuit800 A 104 °F (40 °C) - 10 s for power circuit400 A 104 °F (40 °C) - 1 min for power circuit135 A 104 °F (40 °C) - 10 min for power circuit140 A - 100 ms for signalling circuit120 A - 500 ms for signalling circuit100 A - 1 s for signalling circuit |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1200 A gG at <= 690 V coordination type 1 for power circuit160 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance | 0.8 mOhm - Ith 125 A 50 Hz for power circuit |
| Power dissipation per pole | 12.5 W AC-17.2 W AC-37.2 W AC-3e |
| [Ui] rated insulation voltage | Power circuit 1000 V IEC 60947-4-1Power circuit 600 V CSAPower circuit 600 V ULSignalling circuit 690 V IEC 60947-1Signalling circuit 600 V CSASignalling circuit 600 V UL |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947 |
| Safety reliability level | B10d = 1.3 Mcycles contactor with nominal load EN/ISO 13849-1B10d = 20 Mcycles contactor with mechanical load EN/ISO 13849-1 |
| Mechanical durability | 4 Mcycles |
| Electrical durability | 1.2 Mcycles 95 A AC-31.3 Mcycles 125 A AC-11.2 Mcycles 95 A AC-3e |
| Control circuit type | AC 50/60 Hz |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | 0.8...1.1 Uc (-40…131 °F (-40…55 °C)):operational AC 50 Hz0.85...1.1 Uc (-40…131 °F (-40…55 °C)):operational AC 60 Hz0.3...0.6 Uc (-40…158 °F (-40…70 °C)):drop-out AC 50/60 Hz1...1.1 Uc (131…158 °F (55…70 °C)):operational AC 50/60 Hz |
| Inrush power in VA | 245 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C))245 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in VA | 26 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C))26 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Heat dissipation | 6…10 W at 50/60 Hz |
| Operating time | 20...35 ms closing6...20 ms opening |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 1 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable endControl circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable endPower circuit: connector 1 0.006…0.08 in² (4…50 mm²) - cable stiffness: flexible without cable endPower circuit: connector 2 0.006…0.04 in² (4…25 mm²) - cable stiffness: flexible without cable endPower circuit: connector 1 0.006…0.08 in² (4…50 mm²) - cable stiffness: flexible with cable endPower circuit: connector 2 0.006…0.02 in² (4…16 mm²) - cable stiffness: flexible with cable endPower circuit: connector 1 0.006…0.08 in² (4…50 mm²) - cable stiffness: solid without cable endPower circuit: connector 2 0.006…0.04 in² (4…25 mm²) - cable stiffness: solid without cable end |
| Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mmControl circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals Philips No 2Power circuit 106.2 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mmPower circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm)Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2 |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1Mirror contact 1 NC IEC 60947-4-1 |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact |
| Mounting Support | PlateRail |
| Environment | |
| Standards | EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1CSA C22.2 No 14UL 60947-4-1IEC 60335-2-40:Annex JJUL 60335-2-40:Annex JJIEC 60335-1:Clause 30.2 |
| Product Certifications | CCCULCB SchemeCSACEUKCAMarineEAC |
| IP degree of protection | IP20 front face IEC 60529 |
| Protective treatment | THIEC 60068-2-30 |
| Climatic withstand | IACS E10 exposure to damp heat |
| Permissible ambient air temperature around the device | -40…140 °F (-40…60 °C)140…158 °F (60…70 °C) with derating |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor closed 10 Gn for 11 ms) |
| Height | 5 in (127 mm) |
| Width | 3.3 in (85 mm) |
| Depth | 5.1 in (130 mm) |
| Product Weight | 3.55 lb(US) (1.61 kg) |
| Ordering and shipping details | |
| Category | US1CTR121252 |
| Discount Schedule | CTR1 |
| GTIN | 3389110451269 |
| Returnability | Yes |
| Country of origin | CZ |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.102 in (15.500 cm) |
| Package 1 Width | 3.740 in (9.500 cm) |
| Package 1 Length | 5.315 in (13.500 cm) |
| Package weight(Lbs) | 3.527 lb(US) (1.600 kg) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 29.145 lb(US) (13.220 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 31.496 in (80.000 cm) |
| Package 3 Length | 23.622 in (60.000 cm) |
| Package 3 Weight | 250.798 lb(US) (113.760 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

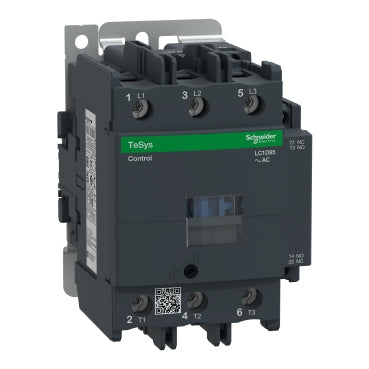

LC1D95G7
LC1D95G7
