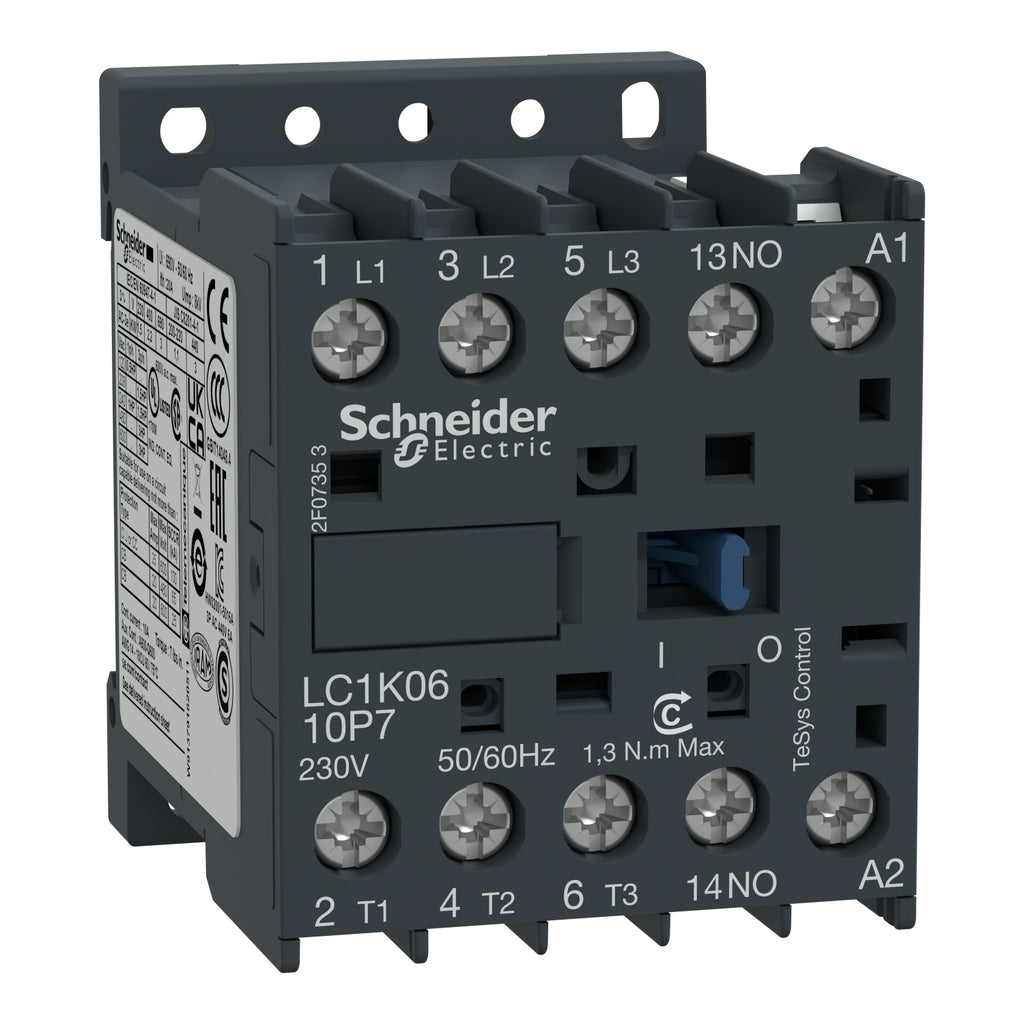

| Range |
TeSys |
| Product or Component Type |
Contactor |
| Device short name |
LC1K |
| Device Application |
Control |
| Contactor application |
Motor control |
| Complementary |
| Utilisation category |
AC-3 |
| AC-3e |
| AC-4 |
| Poles description |
3P |
| power pole contact composition |
3 NO |
| [Ue] rated operational voltage |
Power circuit <= 690 V AC <= 400 Hz |
| Signalling circuit <= 690 V AC <= 400 Hz |
| [Ie] rated operational current |
6 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit |
| 6 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit |
| Control circuit type |
AC 50/60 Hz |
| [Uc] control circuit voltage |
24 V AC 50/60 Hz |
| Motor power kW |
1.5 kW 220...230 V AC 50/60 Hz AC-3 |
| 2.2 kW 380...415 V AC 50/60 Hz AC-3 |
| 3 kW 440/690 V AC 50/60 Hz AC-3 |
| 1.5 kW 220...230 V AC 50/60 Hz AC-3e |
| 2.2 kW 380...415 V AC 50/60 Hz AC-3e |
| 3 kW 440/690 V AC 50/60 Hz AC-3e |
| 1.5 kW 220...230 V AC 50/60 Hz AC-4 |
| 2.2 kW 380...415 V AC 50/60 Hz AC-4 |
| 3 kW 440/690 V AC 50/60 Hz AC-4 |
| Auxiliary contact composition |
1 NO |
| [Uimp] rated impulse withstand voltage |
8 kV |
| Overvoltage category |
III |
| [Ith] conventional free air thermal current |
20 A (at 140 °F (60 °C)) for power circuit |
| 10 A (at 122 °F (50 °C)) for signalling circuit |
| Irms rated making capacity |
110 A AC for power circuit conforming to IEC 60947 |
| 110 A AC for signalling circuit conforming to IEC 60947 |
| Rated breaking capacity |
110 A at 220...230 V conforming to IEC 60947 |
| 110 A at 380...400 V conforming to IEC 60947 |
| 110 A at 415 V conforming to IEC 60947 |
| 110 A at 440 V conforming to IEC 60947 |
| 80 A at 500 V conforming to IEC 60947 |
| 70 A at 660...690 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current |
90 A 122 °F (50 °C) - 1 s for power circuit |
| 85 A 122 °F (50 °C) - 5 s for power circuit |
| 80 A 122 °F (50 °C) - 10 s for power circuit |
| 60 A 122 °F (50 °C) - 30 s for power circuit |
| 45 A 122 °F (50 °C) - 1 min for power circuit |
| 40 A 122 °F (50 °C) - 3 min for power circuit |
| 20 A 122 °F (50 °C) - >= 15 min for power circuit |
| 80 A - 1 s for signalling circuit |
| 90 A - 500 ms for signalling circuit |
| 110 A - 100 ms for signalling circuit |
| Associated fuse rating |
25 A gG at <= 440 V for power circuit |
| 25 A aM for power circuit |
| 10 A gG for signalling circuit conforming to IEC 60947 |
| 10 A gG for signalling circuit conforming to VDE 0660 |
| Average impedance |
3 mOhm - Ith 20 A 50 Hz for power circuit |
| [Ui] rated insulation voltage |
Power circuit 600 V UL 508 |
| Power circuit 690 V IEC 60947-4-1 |
| Signalling circuit 690 V IEC 60947-4-1 |
| Signalling circuit 690 V IEC 60947-5-1 |
| Signalling circuit 600 V UL 508 |
| Power circuit 600 V CSA C22.2 No 14 |
| Signalling circuit 600 V CSA C22.2 No 14 |
| Insulation resistance |
> 10 MOhm for signalling circuit |
| Inrush power in VA |
30 VA (at 68 °F (20 °C)) |
| Hold-in power consumption in VA |
4.5 VA (at 68 °F (20 °C)) |
| Heat dissipation |
1.3 W |
| Control circuit voltage limits |
Operational: 0.8...1.15 Uc (at <122 °F (50 °C)) |
| Drop-out: >= 0.20 Uc (at <122 °F (50 °C)) |
| Connections - terminals |
screw clamp terminals 1 0.002…0.006 in² (1.5…4 mm²)solid |
| screw clamp terminals 1 0.001…0.006 in² (0.75…4 mm²)flexible without cable end |
| screw clamp terminals 1 0.0005…0.004 in² (0.34…2.5 mm²)flexible with cable end |
| screw clamp terminals 2 0.002…0.006 in² (1.5…4 mm²)solid |
| screw clamp terminals 2 0.001…0.006 in² (0.75…4 mm²)flexible without cable end |
| screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²)flexible with cable end |
| Maximum operating rate |
3600 cyc/h |
| Coil technology |
Without built-in suppressor module |
| Auxiliary contacts type |
Instantaneous 1 NO |
| Signalling circuit frequency |
<= 400 Hz |
| Minimum switching current |
5 mA for signalling circuit |
| Minimum switching voltage |
17 V for signalling circuit |
| Mounting Support |
Rail |
| Plate |
| Tightening torque |
11.5 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 |
| 11.5 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm |
| 11.5 lbf.in (1.3 N.m) lugs-ring terminals pozidriv No 2 |
| Operating time |
10...20 ms coil de-energisation and NO opening |
| 10...20 ms coil energisation and NO closing |
| Safety reliability level |
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 |
| B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Non overlap distance |
0.02 in (0.5 mm) |
| Mechanical durability |
10 Mcycles |
| Electrical durability |
1.3 Mcycles 6 A AC-3 <= 440 V |
| 1.3 Mcycles 6 A AC-3e <= 440 V |
| 0.05 Mcycles 36 A AC-4 <= 440 V |
| Mechanical robustness |
Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 |
| Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 |
| Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 |
| Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 |
| Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 |
| Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 |
| Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 |
| Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 |
| Height |
2.3 in (58 mm) |
| Width |
1.8 in (45 mm) |
| Depth |
2.2 in (57 mm) |
| Product Weight |
0.40 lb(US) (0.18 kg) |
| Environment |
| Standards |
EN/IEC 60947-4-1 |
| GB/T 14048.4 |
| UL 60947-4-1 |
| CSA C22.2 No 60947-4-1 |
| JIS C8201-4-1 |
| IEC 60335-1:Clause 30.2 |
| IEC 60335-2-40:Annex JJ |
| UL 60335-2-40:Annex JJ |
| Product Certifications |
CB Scheme |
| CCC |
| UL |
| CSA |
| EAC |
| CE |
| UKCA |
| IP degree of protection |
IP2X VDE 0106 |
| Protective treatment |
TC IEC 60068 |
| TC DIN 50016 |
| Ambient Air Temperature for Storage |
-58…176 °F (-50…80 °C) |
| Operating altitude |
6561.68 ft (2000 m) without derating |
| Flame retardance |
V1 conforming to UL 94 |
| Requirement 2 conforming to NF F 16-101 |
| Requirement 2 conforming to NF F 16-102 |
| Ordering and shipping details |
| Category |
US10I1222326 |
| Discount Schedule |
0I12 |
| GTIN |
3389110365139 |
| Returnability |
Yes |
| Country of origin |
ID |
| Packing Units |
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.598 in (6.600 cm) |
| Package 1 Width |
1.890 in (4.800 cm) |
| Package 1 Length |
2.441 in (6.200 cm) |
| Package weight(Lbs) |
6.208 oz (176.000 g) |
| Unit Type of Package 2 |
S02 |
| Number of Units in Package 2 |
50 |
| Package 2 Height |
5.906 in (15.000 cm) |
| Package 2 Width |
11.811 in (30.000 cm) |
| Package 2 Length |
15.748 in (40.000 cm) |
| Package 2 Weight |
20.208 lb(US) (9.166 kg) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
400 |
| Package 3 Height |
17.717 in (45.000 cm) |
| Package 3 Width |
23.622 in (60.000 cm) |
| Package 3 Length |
31.496 in (80.000 cm) |
| Package 3 Weight |
183.733 lb(US) (83.340 kg) |
