Description
| Main | |
|---|---|
| Range | PowerPact |

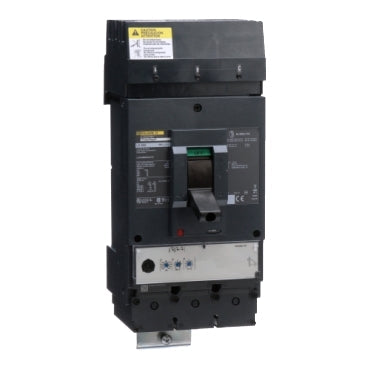

| Product name | PowerPact L |
| Device short name | L-Frame |
| Product or Component Type | Circuit breaker |
| Device Application | Distribution |
| Complementary | |
| Line Rated Current | 600 A |
| Number of Poles | 3P |
| Control Type | Toggle |
| Breaking capacity code | D |
| Breaking capacity | 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480 V AC 50/60 Hz UL 489 14 kA 600 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 |
| [Ue] rated operational voltage | 600 V AC 50/60 Hz IEC 60947-3 |
| Network Frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 25 kA 220/240 V AC 50/60 Hz IEC 60947-218 kA 380/440/415 V AC 50/60 Hz IEC 60947-214 kA 500/525 V AC 50/60 Hz IEC 60947-220 kA 250 V DC IEC 60947-220 kA 500 V DC IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Trip unit technology | Electronic, standard, MicroLogic 3.3, LI |
| Continuous current rating | 80 % |
| [Ui] rated insulation voltage | 750 V IEC 60947-2 |
| Trip unit name | MicroLogic 3.3 |
| Suitability for isolation | Yes IEC 60947-2 |
| Utilisation category | Category A |
| AWG gauge | 2 x AWG 2/0...500 kcmil aluminium/copper |
| Local signalling | Ready 1 LED green)Alarm 1 LED 90 % Ir orange)Alarm LED 105 % Ir red)Switched off (OFF) 1 trip indicator green) |
| Mounting mode | I-Line bracket) |
| Mounting Support | Bracket |
| Electrical connection | I-Line connection, lineLugs, load |
| Terminal identifier | AL600LF52K3 |
| Long time pick-up adjustment range | 0.25...1 x In |
| Mounting Height | 6 in (152.4 mm) |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1…0.4 in² (70…240 mm²) (2 x AWG 2/0...500 kcmil) |
| Number of slots | 2 auxiliary switch OF plug-in)1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in) |
| Power wire stripping length | 1.2 in (31 mm) |
| Color | Black |
| Height | 13.4 in (340 mm) |
| Width | 5.5 in (140 mm) |
| Depth | 4.3 in (110 mm) |
| Product Weight | 13.7 lb(US) (6.2 kg) |
| Phase connection | ABC |
| Communication interface | ModbusEthernet |
| Circuit breaker application | HACR rated |
| Environment | |
| Standards | ULCSANEMANOM-003-SCFI-2000IEC 60947-2 |
| Product certifications | ULCSANOM |
| IP degree of protection | Front cover IP40 |
| Pollution degree | 3 IEC 60947-1 |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -58…185 °F (-50…85 °C) |
| Operating altitude | < 6561.68 ft (2000 m) without derating5000 m with derating |
| Ordering and shipping details | |
| Category | US10DE201118 |
| Discount Schedule | 0DE2 |
| GTIN | 00785901986737 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 8.800 in (22.352 cm) |
| Package 1 Width | 14.00 in (35.56 cm) |
| Package 1 Length | 31.700 in (80.518 cm) |
| Package weight(Lbs) | 18.770 lb(US) (8.514 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
LDA36600U31X
