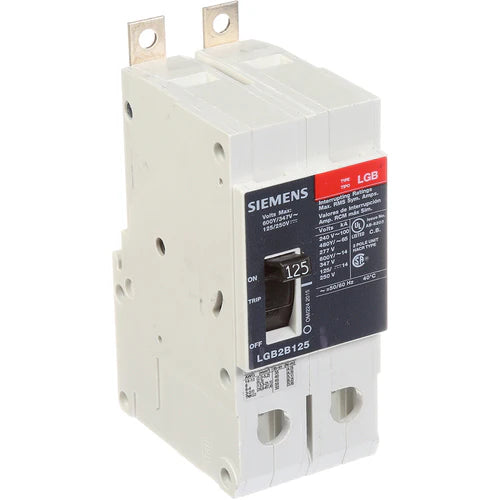

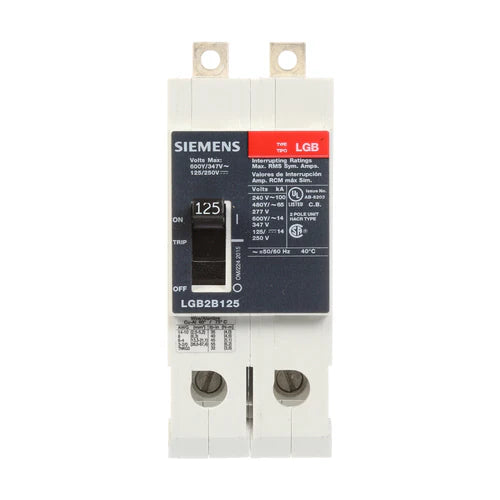

LGB2B125B - Siemens 125A 2P 600V LGB Molded Case Circuit Breaker
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 125A 2-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480Y/277V). SPECIAL FEATURES: LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE: 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 2 x 5.4 x 2.8.
TECHNICAL SPECIFICATIONS
Product related
| Article number |
US2:LGB2B125B |
| MFN |
LGB2B125B |
| UPC |
887621220204 |
| Commodity Code |
8536200020 |
Pricing related
Delivery related
| Export Control Regulations |
ECCN : EAR99 / AL : N |
| Standard delivery time |
18 Day/Days |
| Packaging dimensions (L x W x H) |
Not available |
| Net weight |
1.852 lb |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| Dangerous goods |
No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations |
Yes |
| Compliance with the substance restrictions according to RoHS directive |
not available |
| SCIP Number |
not available |
Siemens specific
| Product Group |
5362 |
| Catalog ID |
LV10.1 |
| Group Code |
P360 |
| Country of origin |
Mexico |
| Returnable Status |
No |
PRODUCT DATASHEET
LGB2B125B
