Description
| Main | |
|---|---|
| Product or Component Type | Circuit breaker |
| Trip Unit Technology | Thermal-magnetic |
| Complementary | |
| Line Rated Current | 350 A |
| Number of Poles | 3P |
| Breaking capacity code | H |
| Mounting Mode | I-Line |
| Magnetic Hold Current | 1750 A |
| Magnetic Tripping Current | 3500 A |
| Electrical connection | Lugs, loadI-Line connection, line |
| Terminal identifier | AL400LA |
| Height | 12.5 in (317.5 mm) |
| Width | 6 in (152.4 mm) |
| Depth | 4 in (101.6 mm) |
| Circuit breaker application | HACR rated |
| Environment | |
| Certifications | CSAUL Listed |
| Ordering and shipping details | |
| Category | US10DE201040 |
| Discount Schedule | 0DE2 |
| GTIN | 785901339427 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 9.400 in (23.876 cm) |
| Package 1 Width | 11.500 in (29.210 cm) |
| Package 1 Length | 17.400 in (44.196 cm) |
| Package weight(Lbs) | 18.250 lb(US) (8.278 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

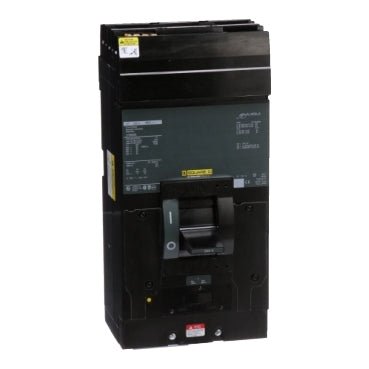

LH36350
LH36350
