Description

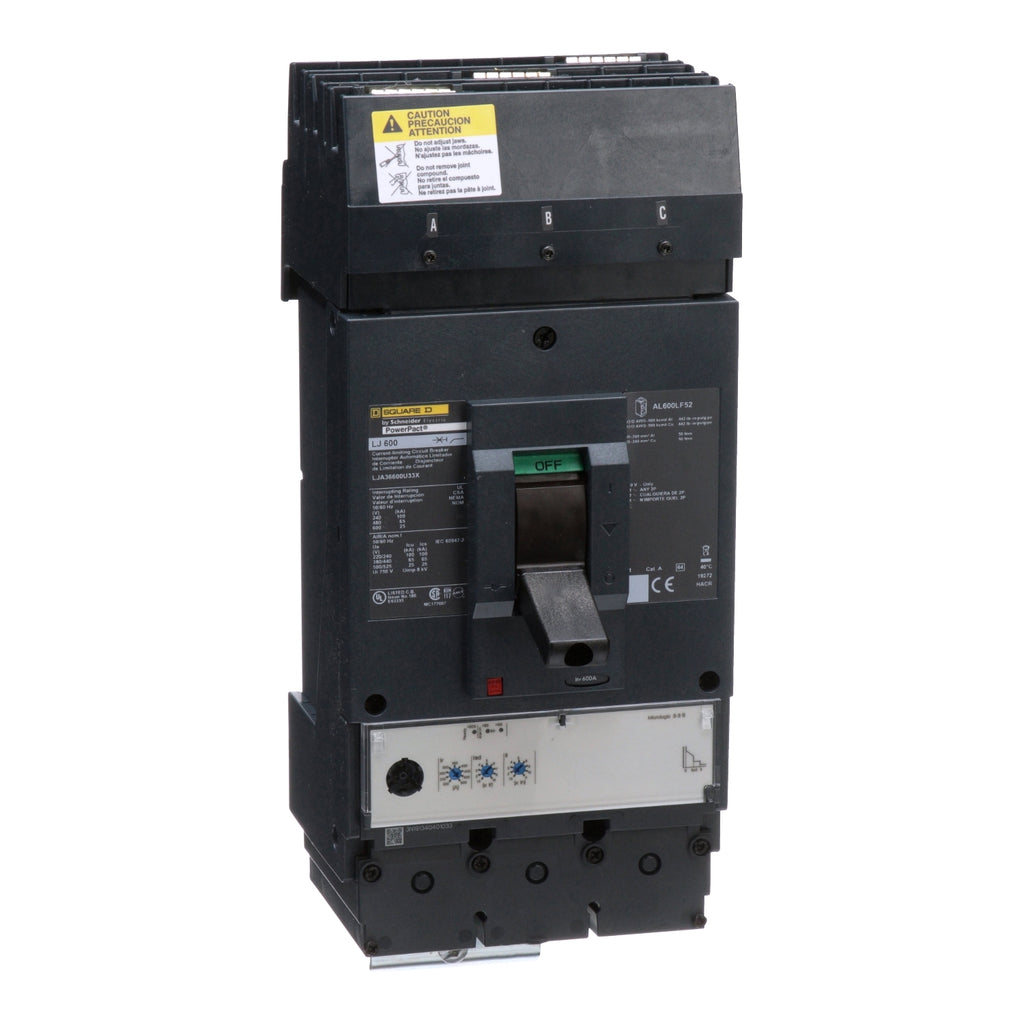

LJA36600U33X - Schneider Electric - I-Line Plug-In 600 Amp 3 Pole 600 Volt Square D Circuit Breaker
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
GENERAL SPECIFICATIONS
| Main | |
| Range | PowerPact |
| Product name | PowerPact L |
| Device short name | L-Frame |
| Product or Component Type | Circuit breaker |
| Device Application | Distribution |
| Complementary | |
| Line Rated Current | 600 A |
| Number of Poles | 3P |
| Control Type | Toggle |
| Breaking capacity code | J |
| Breaking capacity | 100 kA 240 V AC 50/60 Hz UL 489 |
| 65 kA 480 V AC 50/60 Hz UL 489 | |
| 25 kA 600 V AC 50/60 Hz UL 489 | |
| 20 kA 250 V DC UL 489 | |
| [Ue] rated operational voltage | 600 V AC 50/60 Hz IEC 60947-3 |
| Network Frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 |
| 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 | |
| 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 | |
| 20 kA 250 V DC IEC 60947-2 | |
| 20 kA 500 V DC IEC 60947-2 | |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Trip unit technology | Electronic, standard, MicroLogic 3.3 S, LSI |
| Continuous current rating | 80% |
| [Ui] rated insulation voltage | 750 V IEC 60947-2 |
| Trip unit name | MicroLogic 3.3 S |
| Protection technology | Current limiter |
| Suitability for isolation | Yes IEC 60947-2 |
| Utilisation category | Category A |
| AWG gauge | 2 x AWG 2/0...500 kcmil aluminium/copper |
| Local signalling | Ready 1 LED green) |
| Alarm 1 LED 90 % Ir orange) | |
| Alarm LED 105 % Ir red) | |
| Switched off (OFF) 1 trip indicator green) | |
| Mounting mode | I-Line bracket) |
| Mounting Support | Bracket |
| Electrical connection | I-Line connection, line |
| Lugs, load | |
| Terminal identifier | AL600LF52K3 |
| Long time pick-up adjustment range | 0.25...1 x In |
| Mounting Height | 6 in (152.4 mm) |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1…0.4 in² (70…240 mm²) (2 x AWG 2/0...500 kcmil) |
| Number of slots | 2 auxiliary switch OF plug-in) |
| 1 alarm switch SD plug-in) | |
| 1 overcurrent trip switch SDE plug-in) | |
| 1 voltage release MN or MX plug-in) | |
| Power wire stripping length | 1.2 in (31 mm) |
| Color | Black |
| Height | 13.4 in (340 mm) |
| Width | 5.5 in (140 mm) |
| Depth | 4.3 in (110 mm) |
| Net Weight | 13.7 lb(US) (6.2 kg) |
| Phase connection | ABC |
| Communication interface | Modbus |
| Ethernet | |
| Circuit breaker application | HACR rated |
| Environment | |
| Standards | UL |
| CSA | |
| NEMA | |
| NOM-003-SCFI-2000 | |
| IEC 60947-2 | |
| Product certifications | UL |
| CSA | |
| NOM | |
| IP degree of protection | Front cover IP40 |
| Pollution degree | 3 IEC 60947-1 |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -58…185 °F (-50…85 °C) |
| Operating altitude | < 6561.68 ft (2000 m) without derating |
| 5000 m with derating | |
| Ordering and shipping details | |
| Category | US10DE201118 |
| Discount Schedule | 0DE2 |
| GTIN | 785901803027 |
| Returnability | Yes |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 10.700 in (27.178 cm) |
| Package 1 Width | 11.300 in (28.702 cm) |
| Package 1 Length | 22.00 in (55.88 cm) |
| Package weight(Lbs) | 19.160 lb(US) (8.691 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 40.0 in (101.6 cm) |
| Package 2 Width | 36.00 in (91.44 cm) |
| Package 2 Length | 48.00 in (121.92 cm) |
| Package 2 Weight | 613.670 lb(US) (278.356 kg) |
PRODUCT DATASHEET
