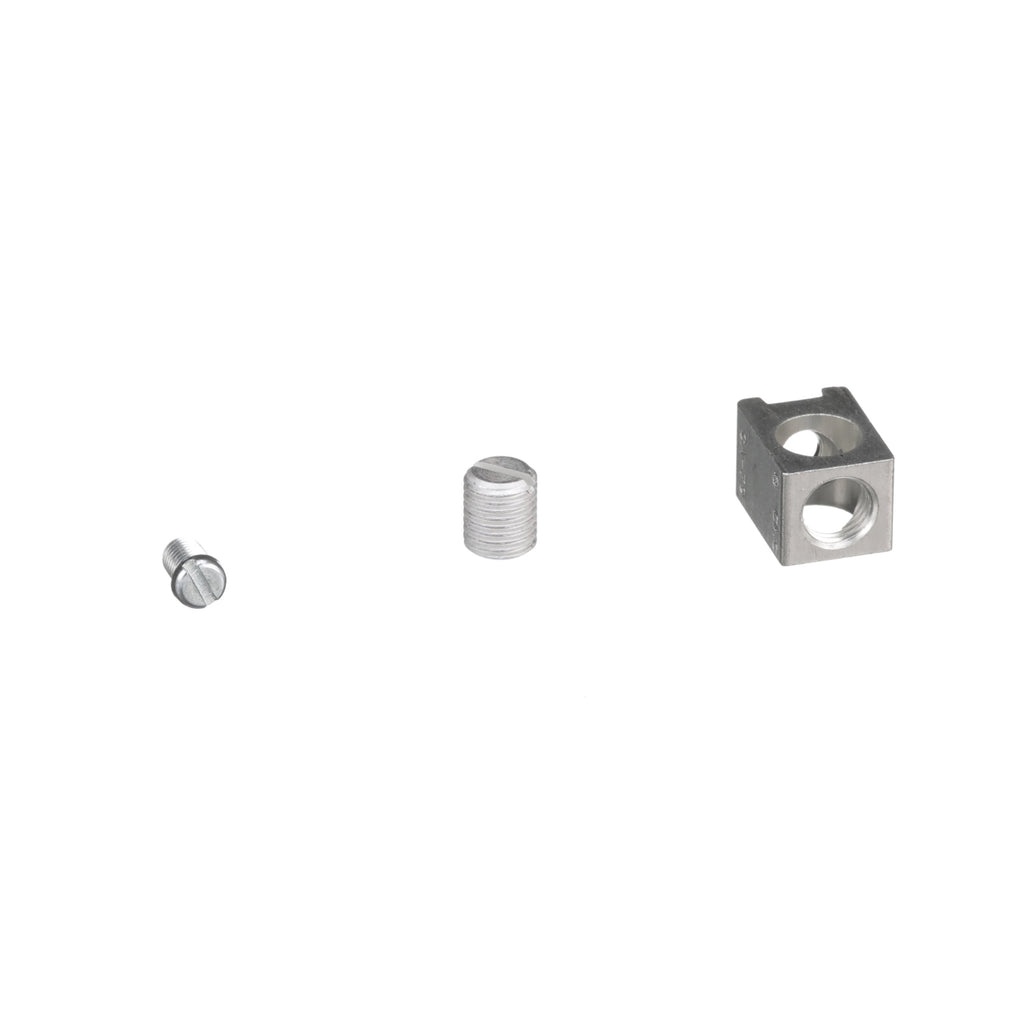

LK100AN - Schneider Electric - Square D Lug Terminal Kit
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. This part has been verified to adhere the data sheet specifications by the Underwriters Laboratories (UL) Listed and CSA.
GENERAL SPECIFICATIONS
Main
| product line |
QO |
| product type |
Lug kit |
Complementary
| ampere rating |
100 A |
| Tightening torque |
40 lb.in, AWG 6...AWG 2/0, aluminium/copper |
Ordering and shipping details
| Category |
US1DE3A00102 |
| Discount Schedule |
DE3A |
| GTIN |
785901065647 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.50 in (1.270 cm) |
| Package 1 Width |
6.30 in (16.002 cm) |
| Package 1 Length |
7.10 in (18.034 cm) |
| Package 1 Weight |
10.240 oz (290.299 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
3.90 in (9.906 cm) |
| Package 2 Width |
6.30 in (16.002 cm) |
| Package 2 Length |
7.00 in (17.780 cm) |
| Package 2 Weight |
9.280 oz (263.083 g) |
PRODUCT DATASHEET
LK100AN_Product Datasheet
