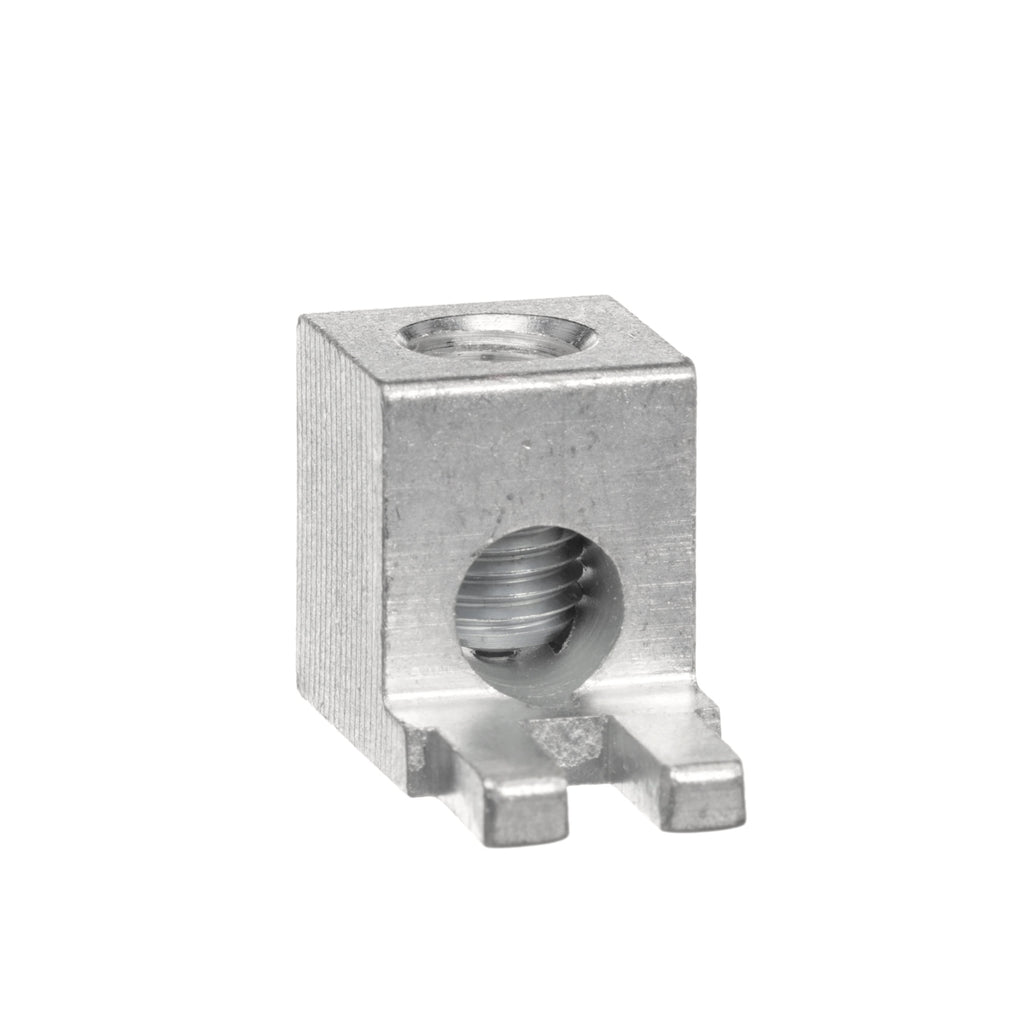

LK70AN - Schneider Electric - 70 Amp Square D Luig Kit
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. This part has been verified to adhere the data sheet specifications by the Underwriters Laboratories (UL) Listed and CSA.
GENERAL SPECIFICATIONS
| Main | |
| product line | QO |
| product type | Lug kit |
| Complementary | |
| ampere rating | 70 A |
| Tightening torque | 35 lb.in, AWG 14...AWG 10, aluminium/copper |
| Lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper | |
| Lugs 35 lb.in, AWG 12...AWG 10, aluminium | |
| 35 lb.in, AWG 12...AWG 10, aluminium | |
| Lugs 40 lb.in, AWG 8, aluminium/copper | |
| Lugs 45 lb.in, AWG 6...AWG 4, aluminium/copper | |
| 40 lb.in, AWG 8, aluminium/copper | |
| Lugs 50 lb.in, AWG 2, aluminium | |
| Terminal screw 30 lb.in | |
| 45 lb.in, AWG 6...AWG 4, aluminium/copper | |
| 50 lb.in, AWG 2, aluminium | |
| 30 lb.in | |
| Ordering and shipping details | |
| Category | US1DE3A00102 |
| Discount Schedule | DE3A |
| GTIN | 785901065654 |
| Returnability | Yes |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.700 in (1.778 cm) |
| Package 1 Width | 0.600 in (1.524 cm) |
| Package 1 Length | 1.100 in (2.794 cm) |
| Package weight(Lbs) | 0.640 oz (18.144 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.000 in (10.160 cm) |
| Package 2 Width | 6.500 in (16.510 cm) |
| Package 2 Length | 7.000 in (17.780 cm) |
| Package 2 Weight | 8.480 oz (240.404 g) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 2160 |
| Package 3 Height | 40.000 in (101.600 cm) |
| Package 3 Width | 40.000 in (101.600 cm) |
| Package 3 Length | 48.000 in (121.920 cm) |
| Package 3 Weight | 126.0009 lb(US) (57.153 kg) |
