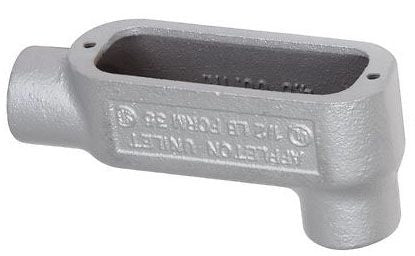

LL150M - Appleton - 1-1/2 Inch LL Conduit Body, Epoxy Coated Iron
Roll over image to zoom in Click on image to zoom
LL150M - Appleton - 1-1/2 Inch LL Conduit Body, Epoxy Coated Iron

LL150M - Appleton - 1-1/2 Inch LL Conduit Body, Epoxy Coated Iron

AppletonSKU: APPLL150M
Price:
$47.79
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Specifications

Access Opening Left Side
Configuration LL
Hub Location 90 Degree
Number of Hubs 2
Hub Size 1-1/2 Inch
Size 8.19 Inch Length x 3.75 Inch Height
Installation Threaded
Material Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw)
Form Type Form 35
Approval UL 514A/B, CSA C22.2
Used On IMC/Rigid Conduit
Brand Name Form 35™
Additional Information Wire Size (3) 1/0 AWG; Capacity 35.3 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1
Product Datasheet
LL150M
