Description
Specifications
| Access Opening | Left Side |
| Configuration | LL |
| Hub Location | 90 Degree |
| Number of Hubs | 2 |
| Hub Size | 4 Inch |
| Size | 16.5 Inch Length x 7.19 Inch Height |
| Installation | Threaded |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw) |
| Form Type | Form 35 |
| Approval | UL 514A/B, CSA C22.2 |
| Used On | IMC/Rigid Conduit |
| Brand Name | Form 35™ |
| Additional Information | Wire Size (3) 350 MCM; Capacity 330 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
Product Datasheet

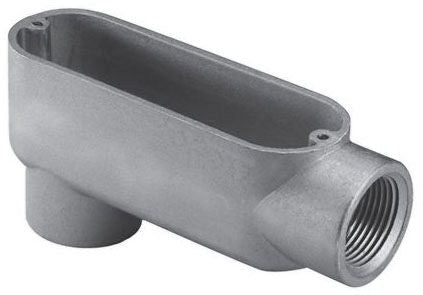

LL400M
LL400M
