Description

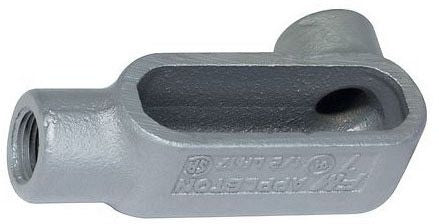

LL57SA - Appleton - RIGID CONDUIT OUTLEY BODY
EPOXY POWDER COATED COPPER-FREE CAST ALUMINUM (BODY), STAINLESS STEEL (COVER SCREW) MATERIAL; 7.13 INCH LENGTH X 3.5 INCH WIDTH SIZE; IMC/RIGID CONDUIT USED ON; 1-1/2 INCH HUB SIZE; THREADED INSTALLATION; LL CONFIGURATION; 2 HUB(S); UL 514A/B, CSA C22.2 APPROVAL; 90 DEGREE HUB LOCATION; FORM 7 FORM TYPE; LEFT SIDE ACCESS OPENING; FM7[TM] BRAND; WIRE SIZE (3) 2 AWG; CAPACITY 28 CUBIC INCH; ENCLOSURE RATING CLASS I DIV 2; APPLICATION COMMERCIAL/INDUSTRIAL, HAZARDOUS LOCATION; APPLICABLE STANDARD NEC/CEC, NEMA FB-1
GENERAL SPECIFICATIONS
| Access Opening | Left Side |
| Configuration | LL |
| Hub Location | 90 Degree |
| Number of Hubs | 2 |
| Hub Size | 1-1/2 Inch |
| Size | 7.13 Inch Length x 3.5 Inch Width |
| Installation | Threaded |
| Material | Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) |
| Form Type | Form 7 |
| Approval | UL 514A/B, CSA C22.2 |
| Used On | IMC/Rigid Conduit |
| Brand Name | FM7™ |
| Additional Information | Wire Size (3) 2 AWG; Capacity 28 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
