Description

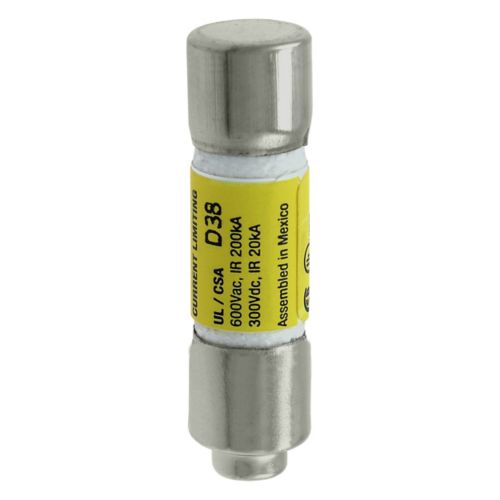

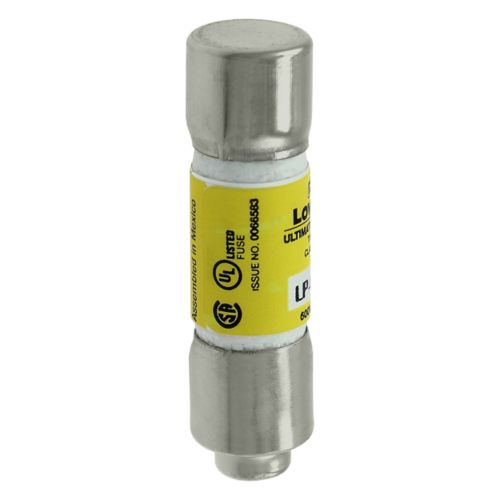

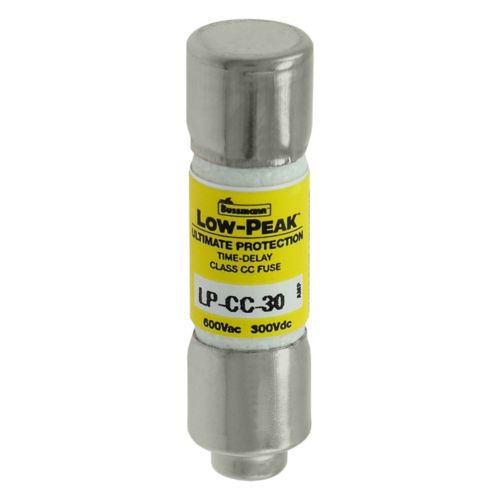

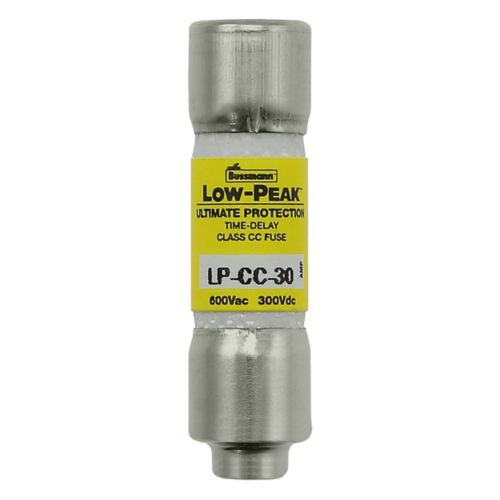

LP-CC-30 - Eaton Bussmann Series - LP-CC Fuse
Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 30 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
GENERAL SPECIFICATIONS
| Product Name | Eaton Bussmann series LP-CC fuse |
| Catalog Number | LP-CC-30 |
| UPC | 051712180313 |
| EAN | 5027590063814 |
| Product Length/Depth | 0.41 in |
| Product Height | 1.5 in |
| Product Width | 0.41 in |
| Product Weight | 0.15 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Certifications | UL Listed CSA Certified |
| Product Type | Fuse |
