| SKU |
LPJ-500SP |
| descriptionLabel |

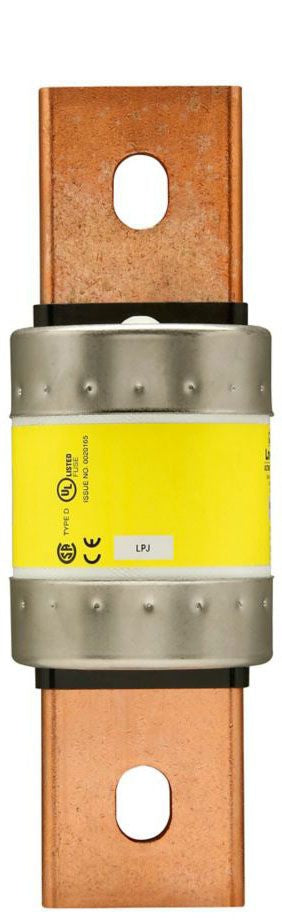

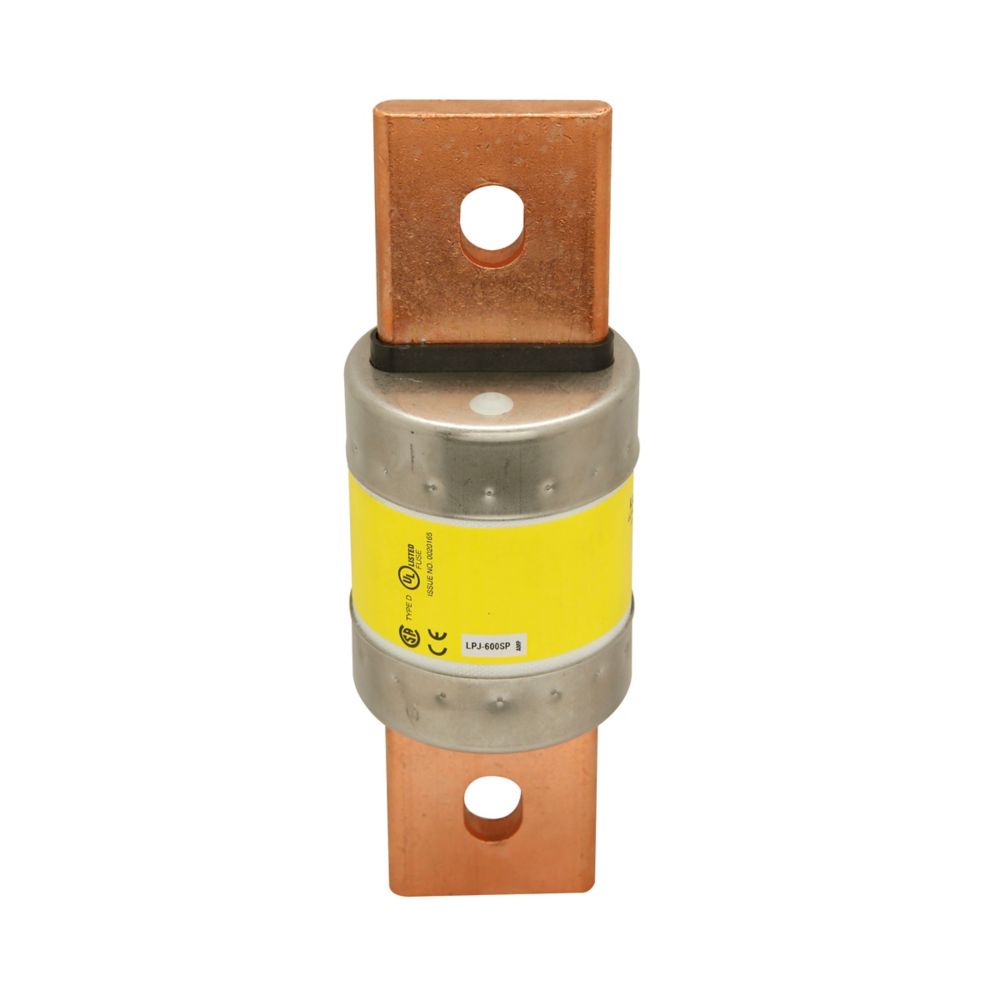

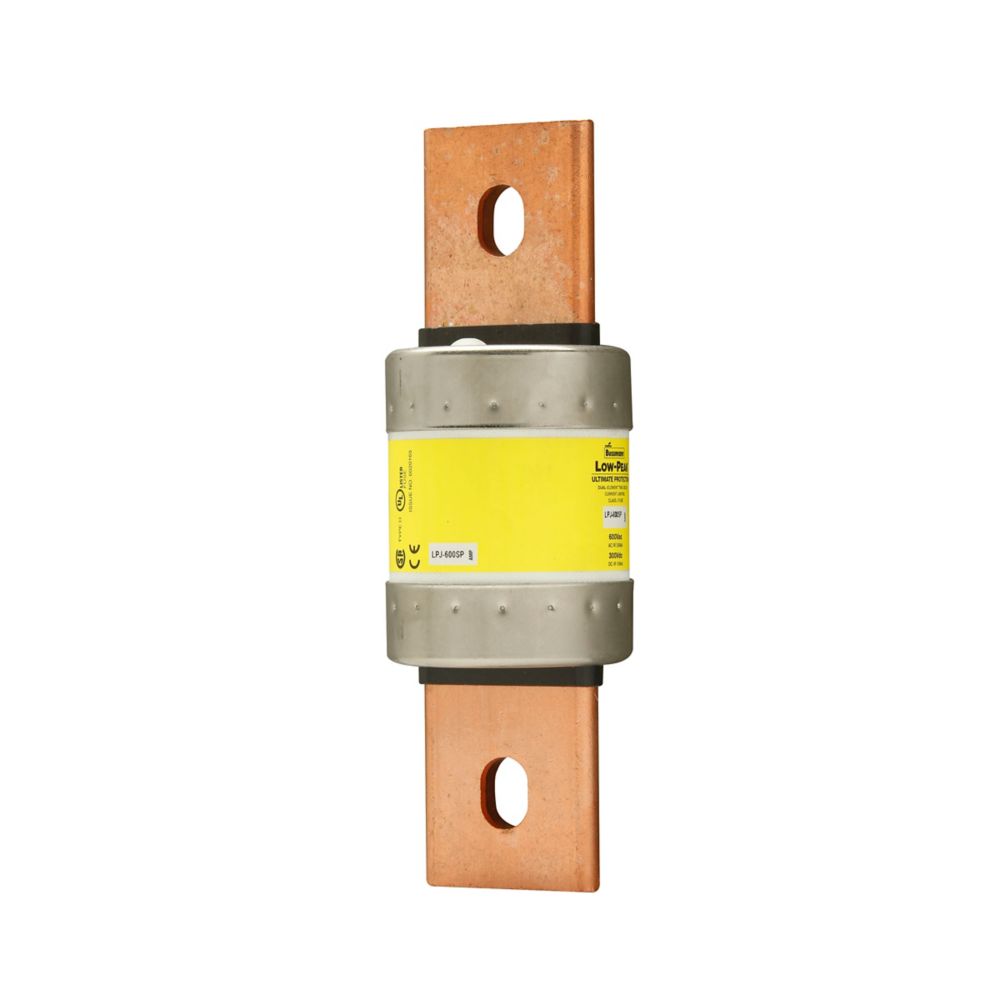

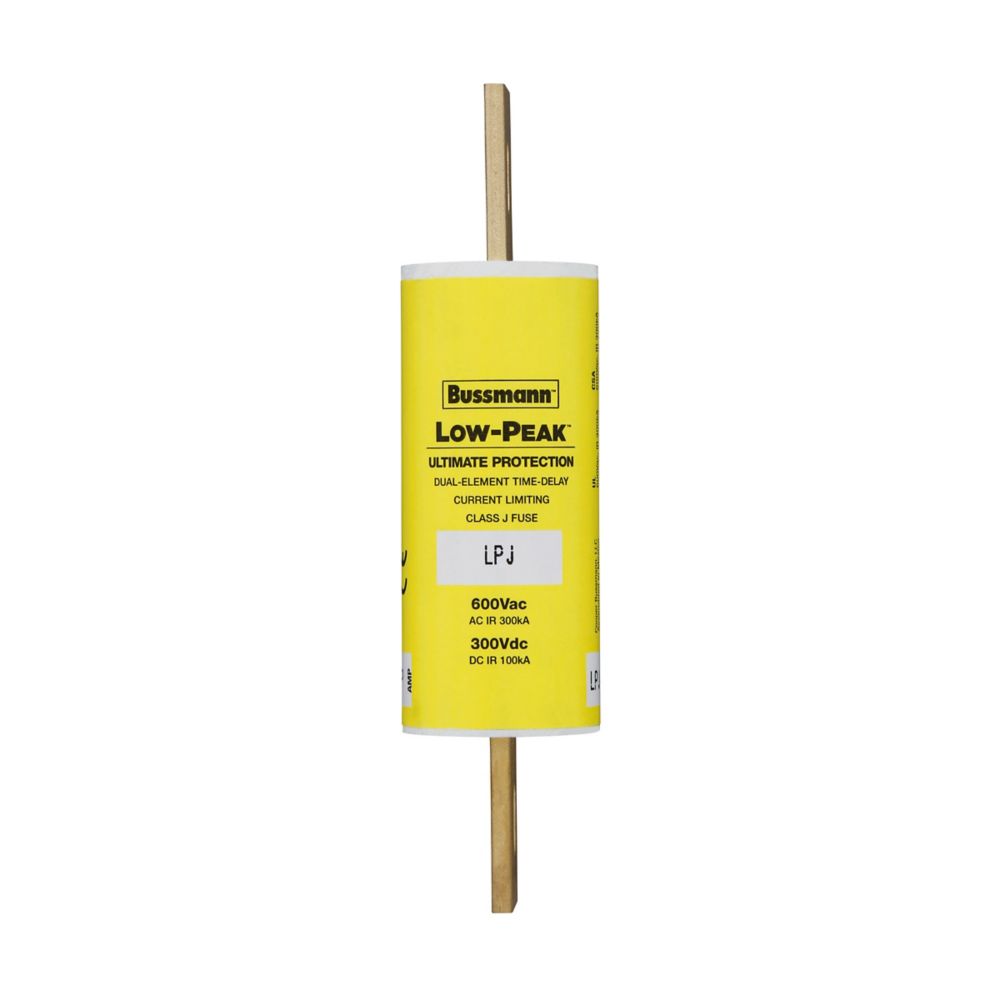

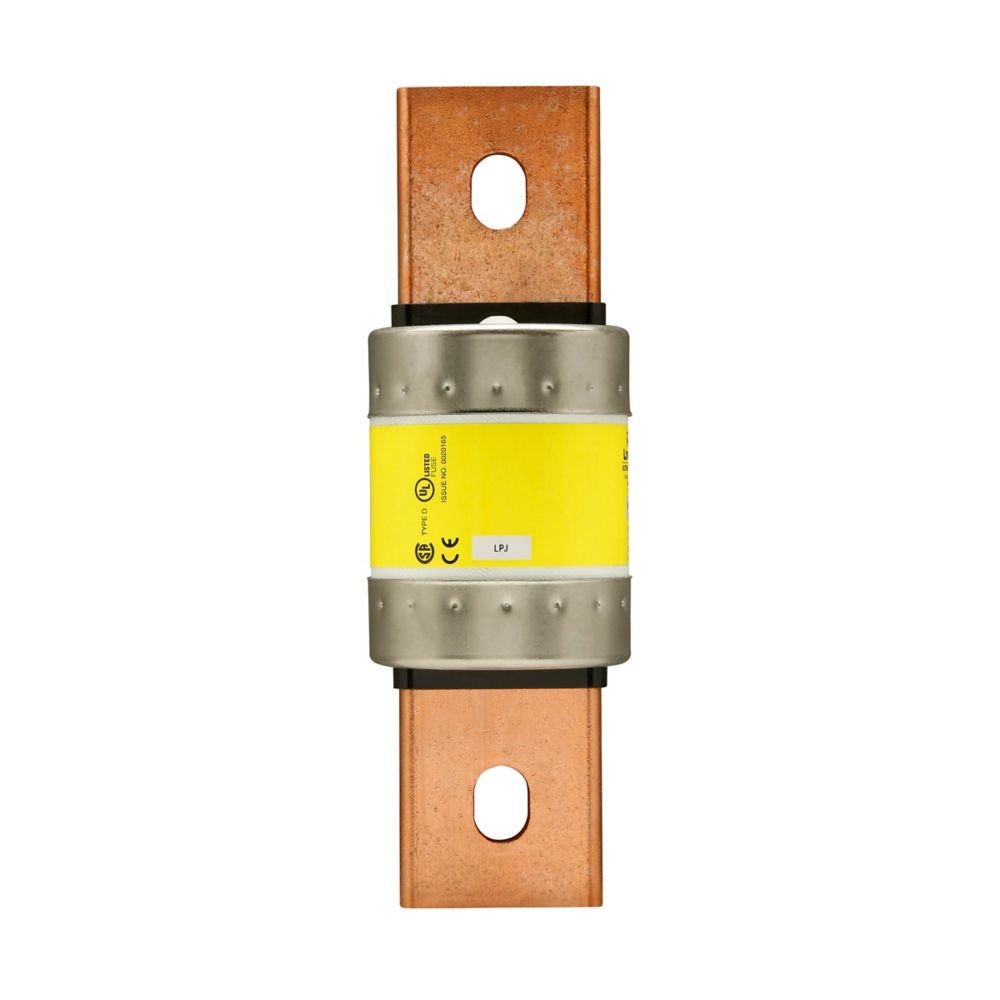

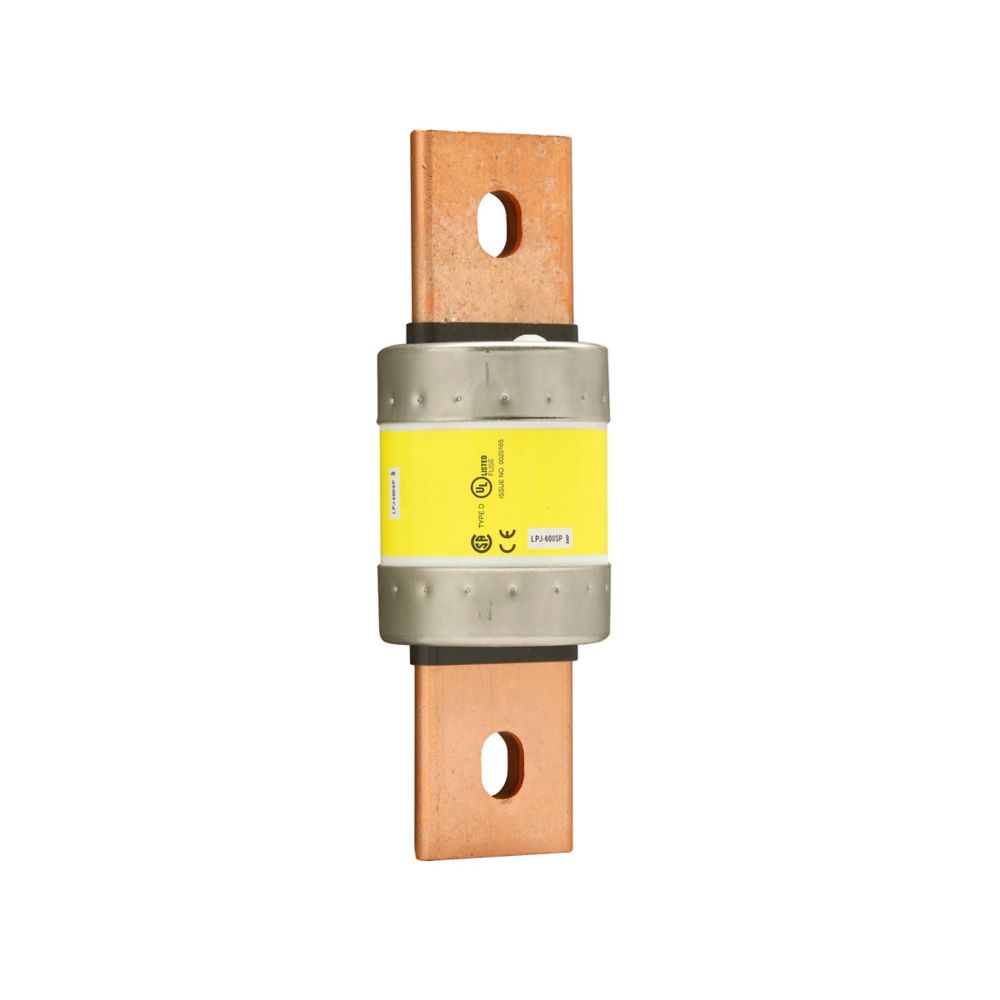

Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 500 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc |
| Product Name |
Eaton Bussmann series LPJ fuse |
| Catalog Number |
LPJ-500SP |
| UPC |
051712522861 |
| Product Length/Depth |
8 in |
| Product Height |
2.5 in |
| Product Width |
2.5 in |
| Product Weight |
1.39 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Product Type |
Fuse |
| Amperage Rating |
500 A |
| Interrupt rating |
100 kAIC Vdc 300 kAIC at 600 Vac |
| Response time |
10 sec at 500% |
| Voltage rating |
600 Vac, 300 Vdc |
| Fuse type |
Time delay Current-limiting |
| Number of elements |
Dual |
| Packaging type |
Standard |
| Class |
Class J |
| Connection |
Bolted blade end x bolted blade end |
| Fuse indicator |
Non-indicating |
| Special features |
Indicating, High in-rush current motor protection |
