Description

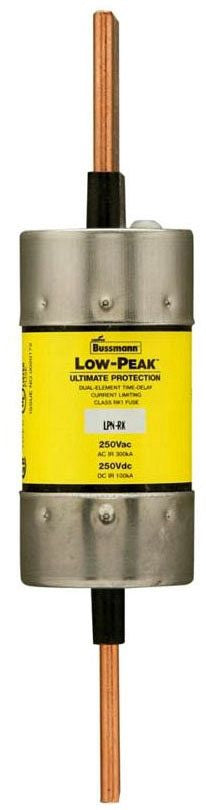

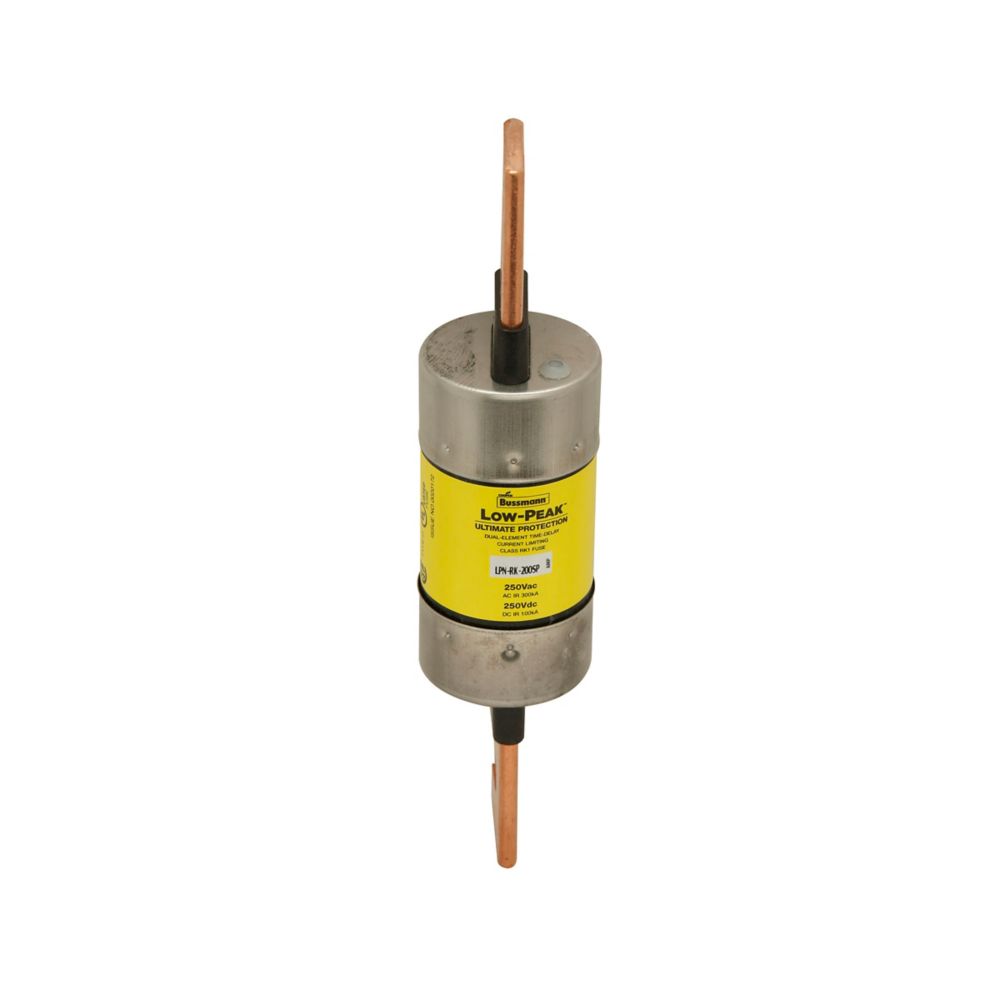

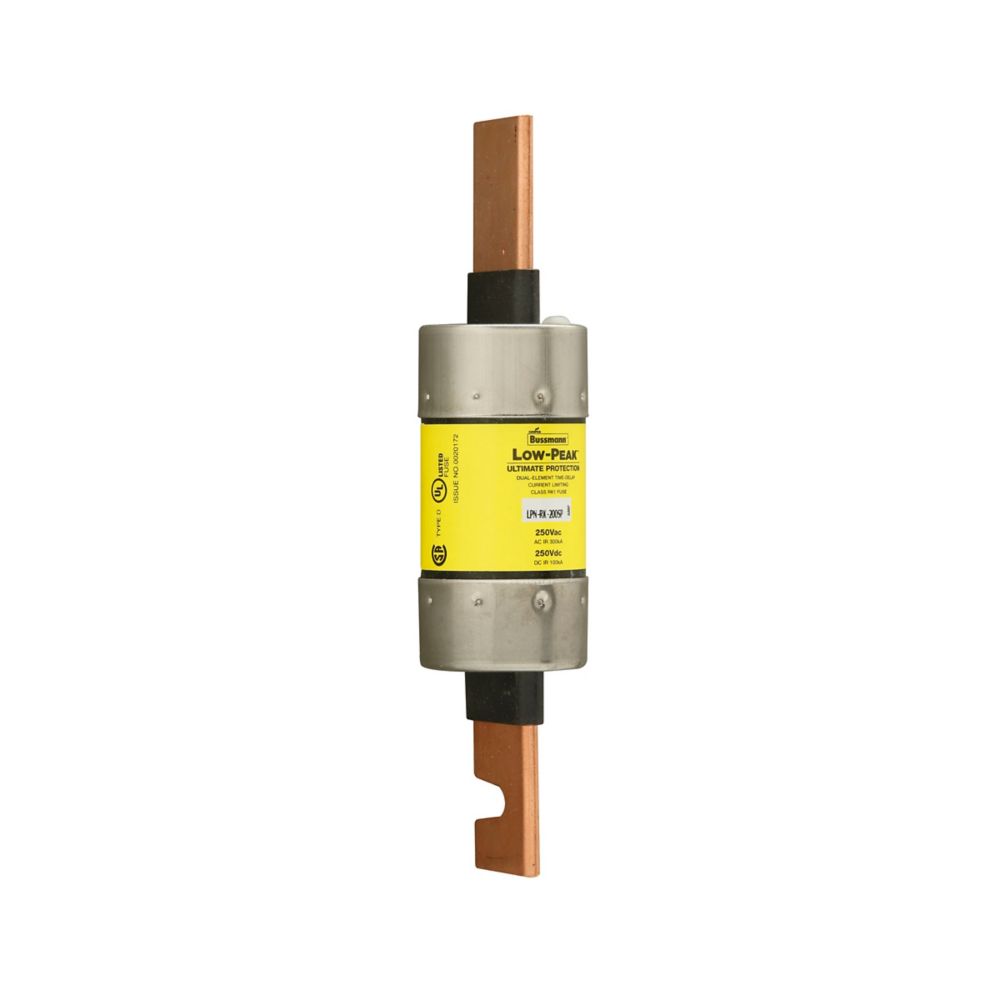

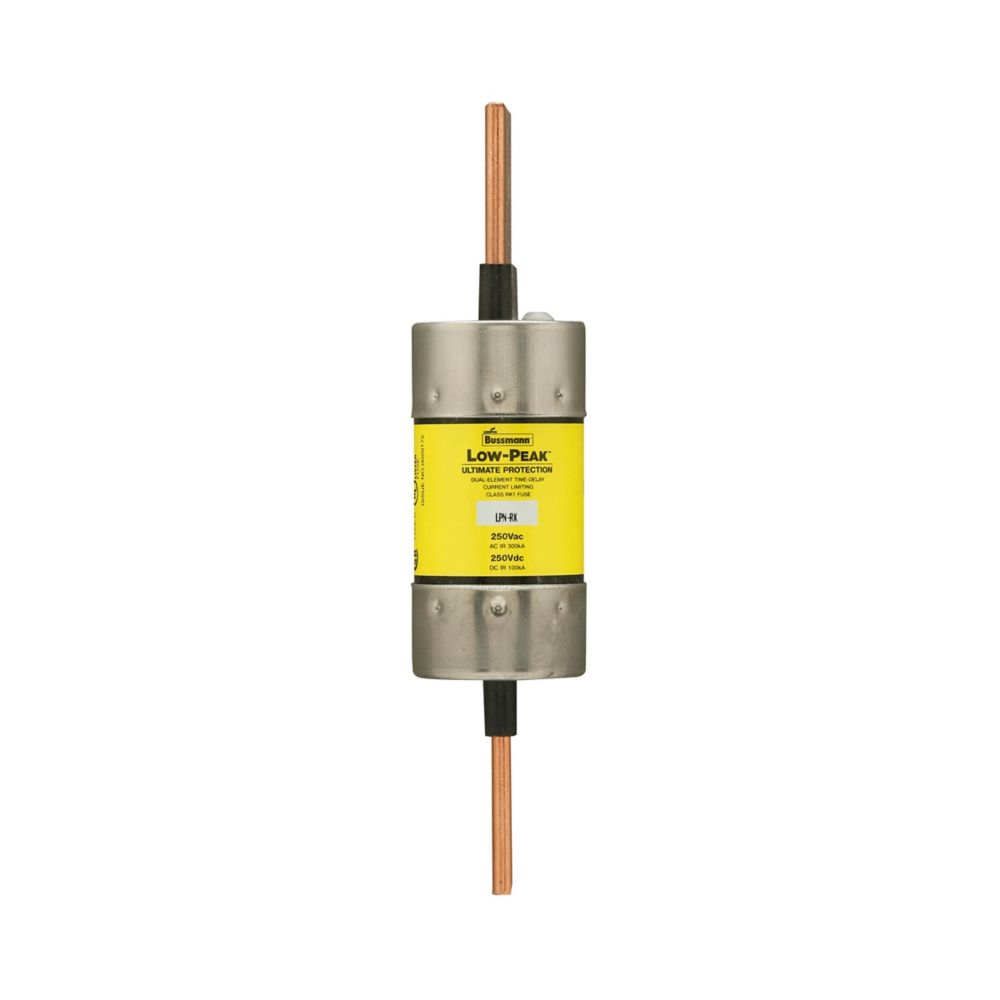

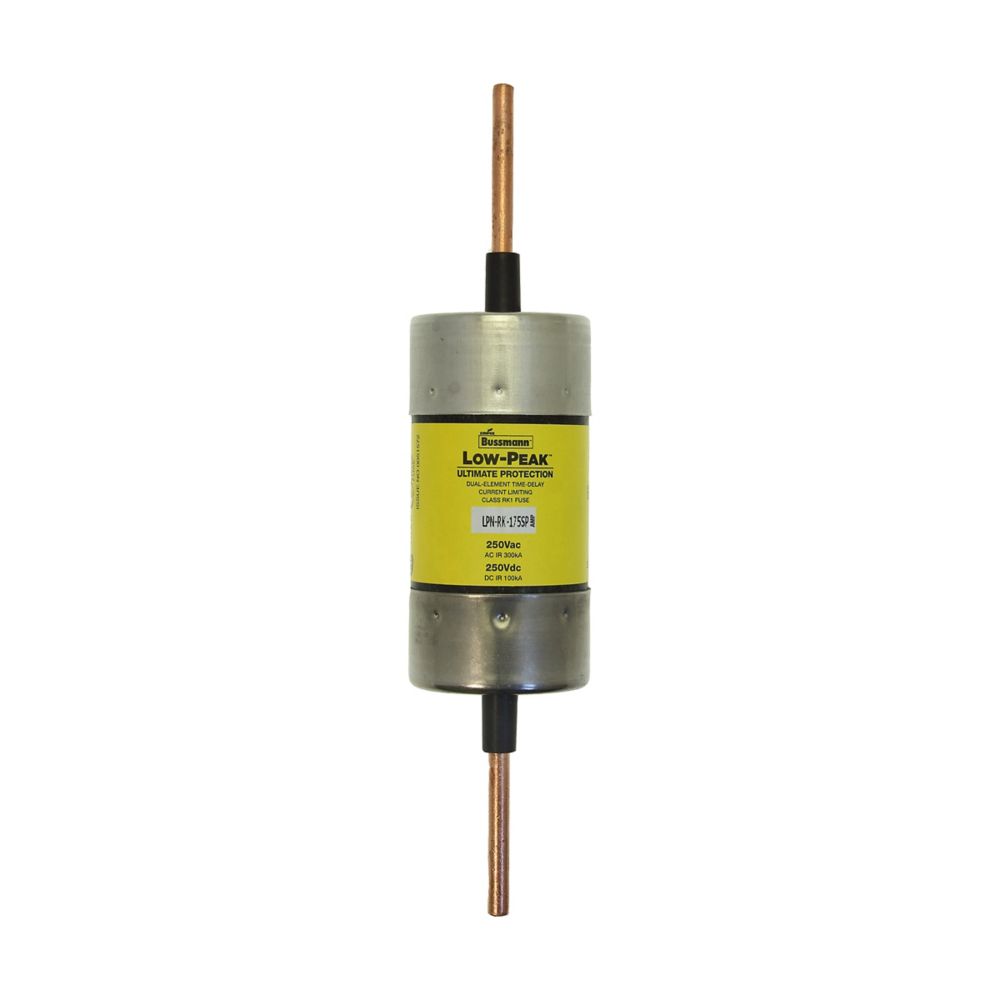

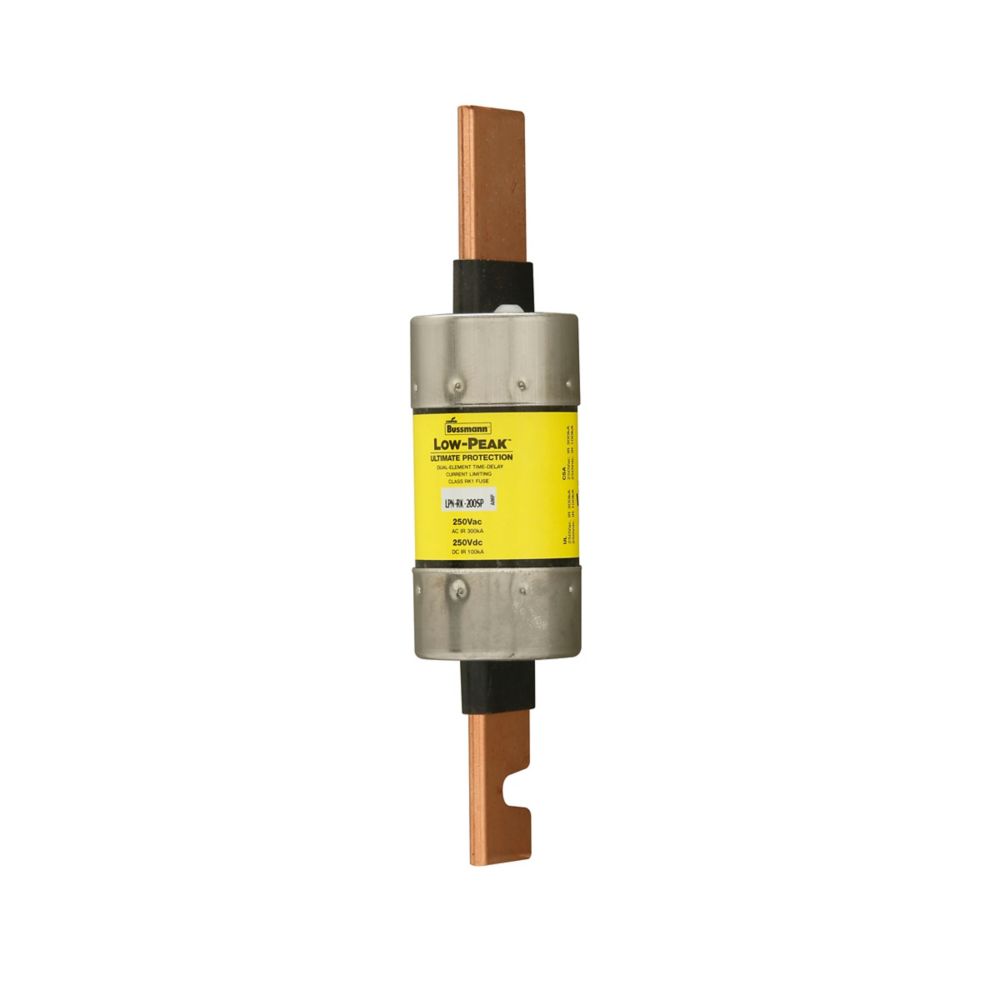

LPN-RK-150SP - Eaton Bussmann Series - Eaton Bussmann series LPN-RK fuse
| SKU | LPN-RK-150SP |
| descriptionLabel | Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 150 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc |
| Product Name | Eaton Bussmann series LPN-RK fuse |
| Catalog Number | LPN-RK-150SP |
| UPC | 051712538480 |
| Product Length/Depth | 7.13 in |
| Product Height | 1.61 in |
| Product Width | 1.61 in |
| Product Weight | 0.69 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Product Type | Fuse |
| Amperage Rating | 150 A |
| Interrupt rating | 300 kAIC at 250 Vac 100 kAIC at 250 Vdc |
| Voltage rating | 250 Vac, 250 Vdc |
| Fuse type | Time delay Current-limiting |
| Number of elements | Dual |
| Packaging type | Standard |
| Class | Class RK1 |
| Connection | Blade end x blade end |
| Fuse indicator | Non-indicating |
| Quantity | 1 |
| Special features | Non-indicating, High in-rush current motor protection |
