| SKU |
LPN-RK-25SP |
| descriptionLabel |

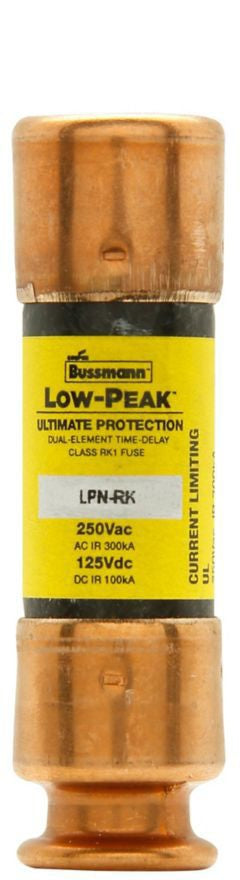

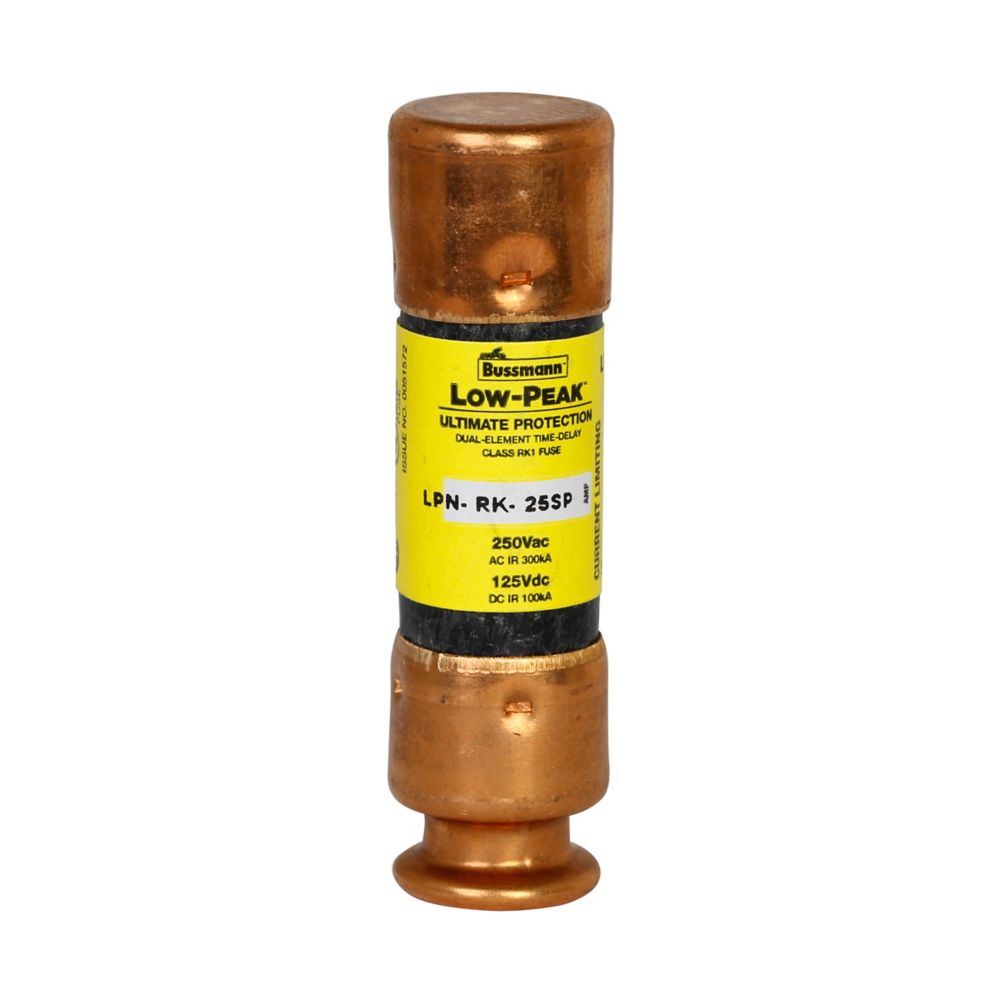

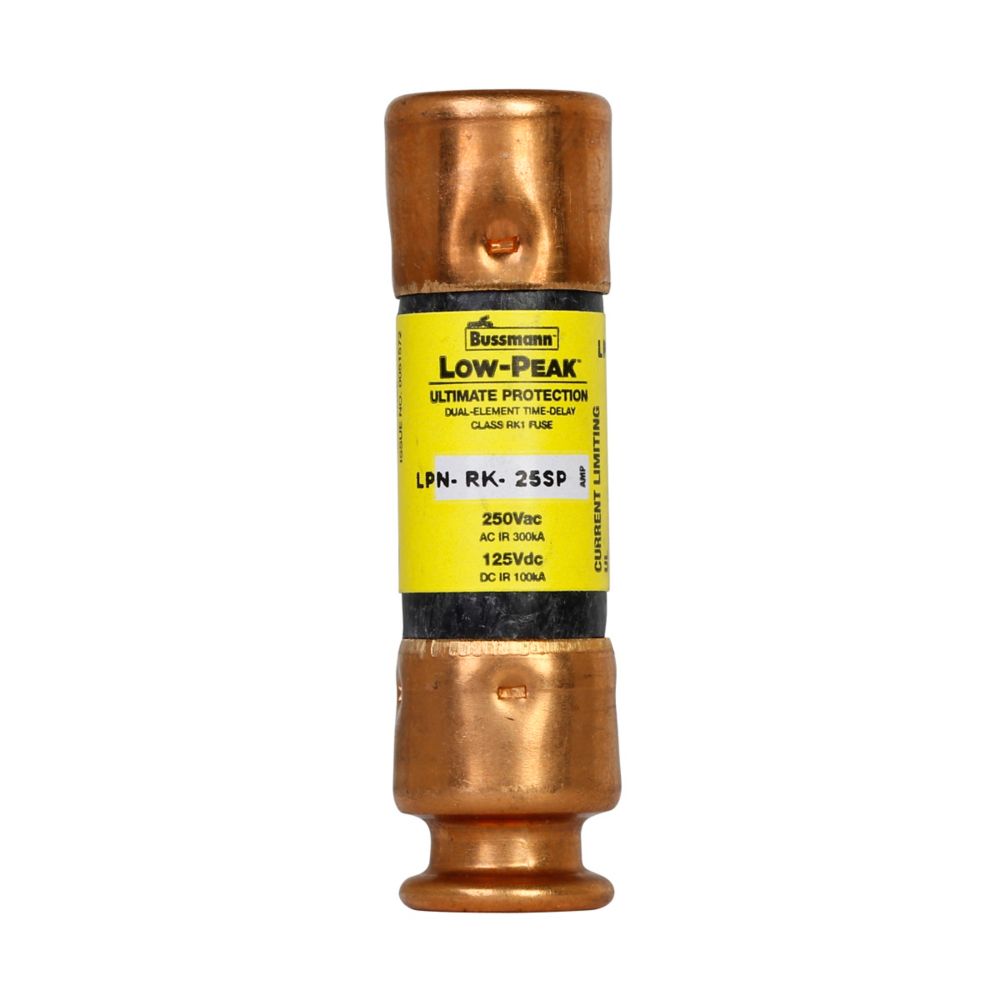

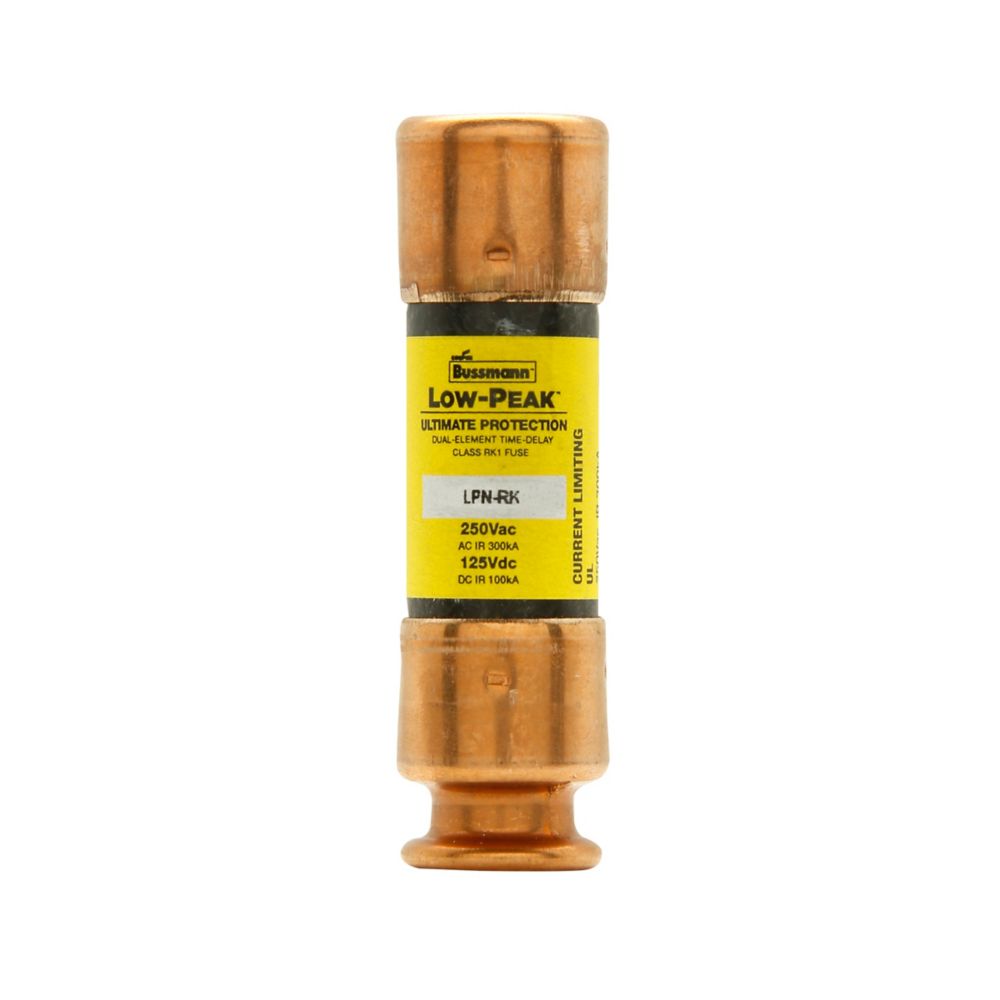

Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 25 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc |
| Product Name |
Eaton Bussmann series LPN-RK fuse |
| Catalog Number |
LPN-RK-25SP |
| UPC |
051712538350 |
| EAN |
5027590091602 |
| Product Length/Depth |
2 in |
| Product Height |
0.56 in |
| Product Width |
0.56 in |
| Product Weight |
0.5 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked |
| Product Type |
Fuse |
| Amperage Rating |
25 A |
| Interrupt rating |
100 kAIC at 250 Vdc 300 kAIC at 250 Vac |
| Response time |
8 sec at 500% |
| Voltage rating |
250 Vac, 250 Vdc |
| Fuse type |
Time delay Current-limiting |
| Number of elements |
Dual |
| Packaging type |
Standard |
| Class |
Class RK1 |
| Connection |
Ferrule end x ferrule end |
| Fuse indicator |
Non-indicating |
| Quantity |
10 |
| Special features |
Non-indicating, High in-rush current motor protection |
