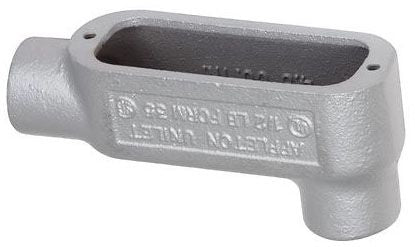

LR100M - Appleton - 1 Inch Malleable Iron Form 35 LR-Type Conduit Outlet Body
ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED MALLEABLE IRON (BODY), STAINLESS STEEL (COVER SCREW) MATERIAL; 6.25 INCH LENGTH X 2.56 INCH WIDTH SIZE; IMC/RIGID CONDUIT USED ON; 1 INCH HUB SIZE; THREADED INSTALLATION; LR CONFIGURATION; 2 HUB(S); UL 514A/B, CSA C22.2 APPROVAL; 90 DEGREE HUB LOCATION; FORM 35 FORM TYPE; RIGHT SIDE ACCESS OPENING; FORM 35[TM] BRAND; WIRE SIZE (3) 4 AWG; CAPACITY 12.5 CUBIC INCH; ENCLOSURE RATING CLASS I DIV 2; APPLICATION COMMERCIAL/INDUSTRIAL, HAZARDOUS LOCATION; APPLICABLE STANDARD NEC/CEC, NEMA FB-1
GENERAL SPECIFICATIONS
| Access Opening | Right Side |
| Configuration | LR |
| Hub Location | 90 Degree |
| Number of Hubs | 2 |
| Hub Size | 1 Inch |
| Size | 6.25 Inch Length x 2.56 Inch Width |
| Installation | Threaded |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw) |
| Form Type | Form 35 |
| Approval | UL 514A/B, CSA C22.2 |
| Used On | IMC/Rigid Conduit |
| Brand Name | Form 35™ |
| Additional Information | Wire Size (3) 4 AWG; Capacity 12.5 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
