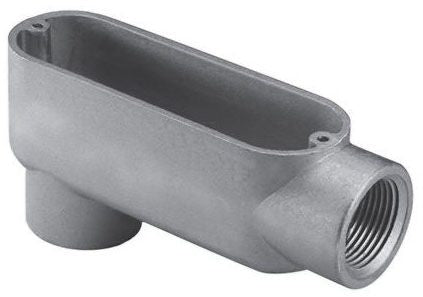

LR125A - Appleton - 1-1/4 Inch LR Conduit Body, Epoxy Coated Aluminum
Roll over image to zoom in Click on image to zoom
LR125A - Appleton - 1-1/4 Inch LR Conduit Body, Epoxy Coated Aluminum

LR125A - Appleton - 1-1/4 Inch LR Conduit Body, Epoxy Coated Aluminum

AppletonSKU: APPLR125A
Price:
$43.52
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Specifications

Access Opening Right Side
Configuration LR
Hub Location 90 Degree
Number of Hubs 2
Hub Size 1-1/4 Inch
Size 7.88 Inch Length x 3.50 Inch Width
Installation Threaded
Material Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw)
Form Type Form 85
Approval UL 514A/B, CSA C22.2
Used On IMC/Rigid Conduit
Brand Name Unilets®, Form 85™
Additional Information Wire Size (3) 2 AWG; Capacity 34.8 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1
Product Datasheet
LR125A
