Description
Specifications
| Access Opening | Right Side |
| Configuration | LR |
| Hub Location | 90 Degree |
| Number of Hubs | 2 |
| Hub Size | 1/2 Inch |
| Size | 4.31 Inch Length x 2 Inch Width |
| Installation | Threaded |
| Material | Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) |
| Form Type | Form 85 |
| Approval | UL 514A/B, CSA C22.2 |
| Used On | IMC/Rigid Conduit |
| Brand Name | Unilets®, Form 85™ |
| Additional Information | Capacity 4 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
Product Datasheet

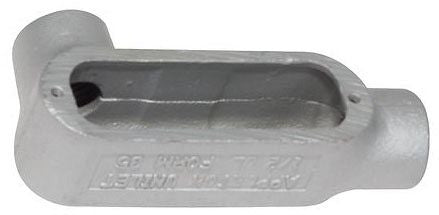

LR50A
LR50A
