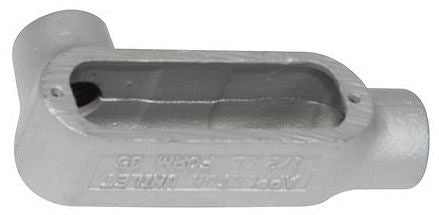

LR78 - Appleton - 2-1/2 Inch LR Conduit Body, Epoxy Coated Iron
Roll over image to zoom in Click on image to zoom
LR78 - Appleton - 2-1/2 Inch LR Conduit Body, Epoxy Coated Iron

LR78 - Appleton - 2-1/2 Inch LR Conduit Body, Epoxy Coated Iron

AppletonSKU: APPLR78
Price:
$204.87
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Specifications

Access Opening Right Side
Configuration LR
Hub Location 90 Degree
Number of Hubs 2
Hub Size 2-1/2 Inch
Size 13.94 Inch Length x 6.69 Inch Width
Installation Threaded
Material Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw)
Form Type Form 8
Approval UL 514A/B, CSA C22.2
Used On IMC/Rigid Conduit
Brand Name FM8™
Additional Information Wire Size (3) 300 MCM; Capacity 200 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1
Product Datasheet
LR78
