Description
| Main | |
|---|---|
| Range | TeSysTeSys Deca |
| Product name | TeSys LRDTeSys Deca |
| Product or Component Type | Differential thermal overload relay |
| Device short name | LRD |
| Relay application | Motor protection |
| Product Compatibility | LC1D40ALC1D65ALC1D50A |
| Network type | ACDC |
| Thermal overload class | Class 10A IEC 60947-4-1 |
| Thermal protection adjustment range | 23…32 A |
| [Ui] rated insulation voltage | Power circuit 600 V CSAPower circuit 600 V ULPower circuit 690 V IEC 60947-4-1 |
| Complementary | |
| Network Frequency | 0...400 Hz |
| Mounting support | Plate, with specific accessoriesRail, with specific accessoriesUnder contactor |
| Tripping threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A signalling circuit |
| Permissible current | 0.95 A 380 V AC-15 signalling circuit0.06 A 440 V DC-13 signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control type | Red push-button stopBlue push-button reset |
| Temperature compensation | -4…140 °F (-20…60 °C) |
| Connections - terminals | Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible without cable endControl circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible with cable endControl circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) solid without cable endPower circuit EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) flexible without cable endPower circuit EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) flexible with cable endPower circuit EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) solid without cable end |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminalsPower circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors |
| Height | 4.8 in (123 mm) |
| Width | 2.2 in (55 mm) |
| Depth | 4.8 in (123 mm) |
| Product Weight | 0.827 lb(US) (0.375 kg) |
| Environment | |
| Climatic withstand | IACS E10 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) without derating IEC 60947-4-1 |
| Ambient Air Temperature for Storage | -76…158 °F (-60…70 °C) |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Shocks15 Gn for 11 ms IEC 60068-2-7Vibrations4 gn IEC 60068-2-6 |
| Dielectric strength | 1.89 kV 50 Hz IEC 60947-1 |
| Standards | EN/IEC 60947-4-1EN/IEC 60947-5-1UL 60947-4-1UL 60947-5-1CSA C22.2 No 60947-4-1CSA C22.2 No 60947-5-1GB/T 14048.4GB/T 14048.5EN 50495 |
| Product Certifications | IECULCSACCCEACDNV-GLRMRSEU-RO MRLROS (Lloyds register of shipping)ATEX INERISUKCA |
| Ordering and shipping details | |
| Category | US1CTR121252 |
| Discount Schedule | CTR1 |
| GTIN | 3389119215480 |
| Returnability | Yes |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.559 in (6.500 cm) |
| Package 1 Width | 4.094 in (10.400 cm) |
| Package 1 Length | 5.433 in (13.800 cm) |
| Package weight(Lbs) | 13.862 oz (393.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 13 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 11.892 lb(US) (5.394 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 208 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 207.270 lb(US) (94.016 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

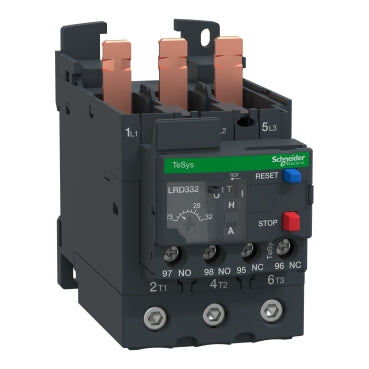

LRD332
