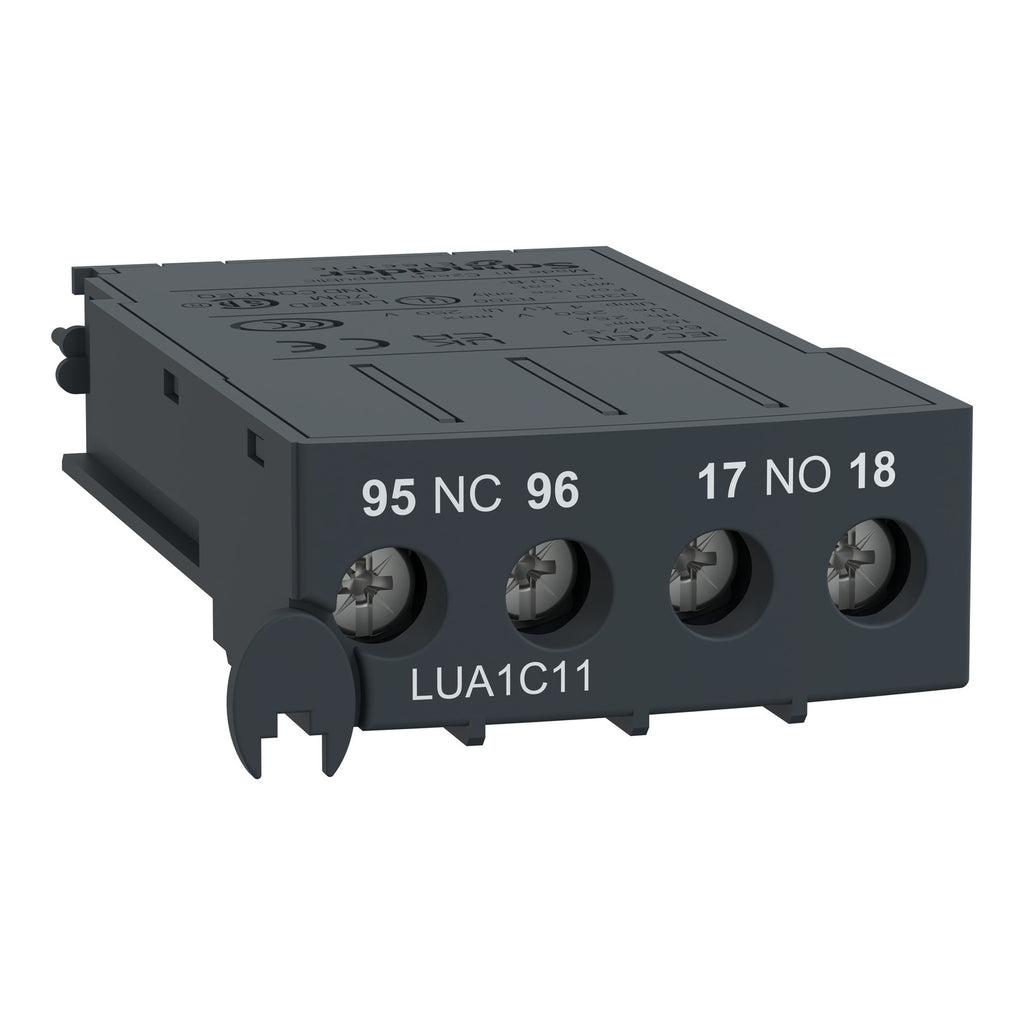

LUA1C11 - Schneider Electric - Square D TeSys Ultra Signalling Auxiliary Contacts
TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 1NO contact for open/close status (OF contact) and 1NC contact for tripping status (SD contact), rated up to 5A 250V AC/DC. To be inserted in the provided location of the power base.
GENERAL SPECIFICATIONS
| Range | TeSys |
|---|---|
| Device short name | LUA1 |
| Product or Component Type | Auxiliary contact |
| Auxiliary contact composition | 1 NO + 1 NC |
|---|---|
| Signalling function | Fault signalling Indicating rotary knob in ready position |
| [Ue] rated operational voltage | <= 250 V AC <= 250 V DC |
| [Ui] rated insulation voltage | 250 V CSA 250 V IEC 60947-5-1 250 V UL |
| [Ith] conventional free air thermal current | 2.5 A |
| Minimum switching voltage | 17 V |
| minimum switching current | 5 mA |
| Net Weight | 0.07 lb(US) (0.03 kg) |
| Connections - terminals | screw clamp terminals |
| Category | US10I1122399 |
|---|---|
| Discount Schedule | 0I11 |
| GTIN | 3389110367317 |
| Returnability | Yes |
| Country of origin | CZ |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.79 in (2.0 cm) |
| Package 1 Width | 2.36 in (6.0 cm) |
| Package 1 Length | 3.94 in (10.0 cm) |
| Package 1 Weight | 0.8 oz (24 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 5.91 in (15 cm) |
| Package 2 Width | 5.91 in (15 cm) |
| Package 2 Length | 15.75 in (40 cm) |
| Package 2 Weight | 35.2 oz (998 g) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 960 |
| Package 3 Height | 29.53 in (75.0 cm) |
| Package 3 Width | 23.62 in (60.0 cm) |
| Package 3 Length | 31.50 in (80.0 cm) |
| Package 3 Weight | 82.54 lb(US) (37.44 kg) |
