Description

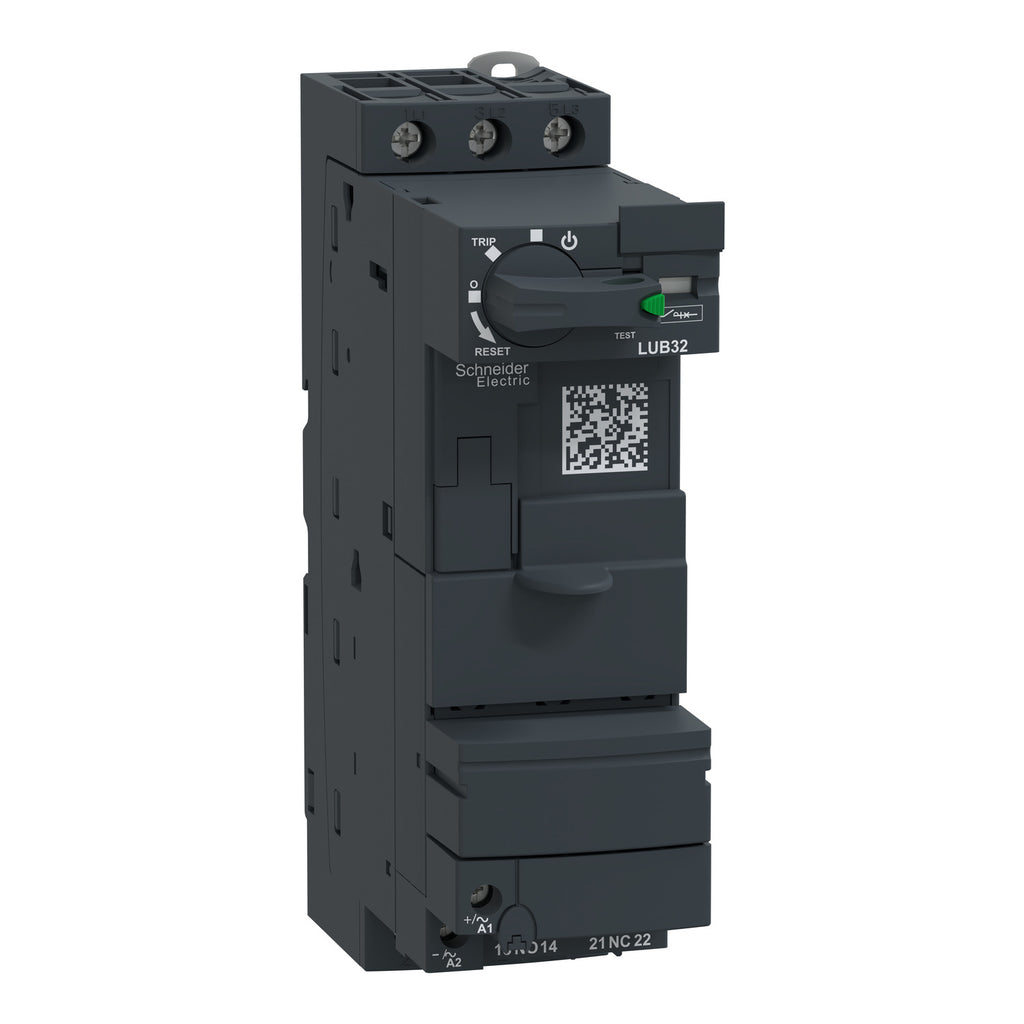

LUB32- Schneider Electric - 32 Amp Square D TeSys Ultra Power Base
TeSys U standard power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).
GENERAL SPECIFICATIONS
| Main | |
| Range | TeSys |
| Product name | TeSys Ultra |
| Device short name | LUB |
| Product or Component Type | Non reversing power base |
| Device Application | Motor control |
| Motor protection | |
| Poles description | 3P |
| Suitability for isolation | Yes |
| [Ue] rated operational voltage | 690 V AC power circuit |
| Network frequency | 40...60 Hz |
| [Ith] conventional free air thermal current | 32 A |
| [Ie] rated operational current | 32 A <= 440 V |
| 23 A 500 V | |
| 21 A 690 V | |
| Utilisation category | AC-43 |
| AC-44 | |
| AC-41 | |
| [Ics] rated service breaking capacity | 50 kA 230 V |
| 50 kA 440 V | |
| 10 kA 500 V | |
| 4 kA 690 V | |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | Linked contacts 1 NO + 1 NC) IEC 60947-4-1 |
| Mirror contact 1 NC) IEC 60947-1 | |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| 24 V DC | |
| 48...72 V AC 50/60 Hz | |
| 48...72 V DC | |
| 110...240 V AC 50/60 Hz | |
| 110...220 V DC | |
| Complementary | |
| Typical current consumption | 200 mA 24 V DC I maximum while closing with LUCM |
| 220 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD | |
| 220 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD | |
| 25 mA 110...220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD | |
| 25 mA 110...240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD | |
| 280 mA 110...220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD | |
| 280 mA 110...240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD | |
| 280 mA 48...72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD | |
| 280 mA 48...72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD | |
| 45 mA 48...72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD | |
| 45 mA 48...72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD | |
| 75 mA 24 V DC I rms sealed with LUCM | |
| 80 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD | |
| 90 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD | |
| Heat dissipation | 3 W control circuit with LUCA, LUCB, LUCC, LUCD |
| 1.8 W control circuit with LUCM | |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 |
| B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 | |
| Operating time | 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit |
| 50 ms >= 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit | |
| 60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit | |
| 70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit | |
| 65 ms closing with LUCM control circuit | |
| Mechanical durability | 15 Mcycles |
| maximum operating rate | 3600 cyc/h |
| Product Certifications | CE |
| UL | |
| CSA | |
| CCC | |
| EAC | |
| ASEFA | |
| ATEX | |
| Marine | |
| Standards | EN 60947-6-2 |
| IEC 60947-6-2 | |
| UL 60947-4-1, with phase barrier | |
| CSA C22.2 No 60947-4-1, with phase barrier | |
| [Ui] rated insulation voltage | 690 V IEC 60947-6-2 3) |
| 600 V UL 60947-4-1 | |
| 600 V CSA C22.2 No 60947-4-1 | |
| [Uimp] rated impulse withstand voltage | 6 kVIEC 60947-6-2 |
| Safe separation of circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N |
| 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N | |
| Fixing mode | Clipped (DIN rail) |
| Screw-fixed (plate) | |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end |
| Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end | |
| Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid | |
| Control circuit: screw clamp terminals 2 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid | |
| Power circuit: screw clamp terminals 1 cable(s) 0.002…0.02 in² (1…10 mm²) rigid | |
| Power circuit: screw clamp terminals 1 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end | |
| Power circuit: screw clamp terminals 1 cable(s) 0.004…0.02 in² (2.5…10 mm²) flexible without cable end | |
| Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end | |
| Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) rigid | |
| Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) flexible without cable end | |
| Tightening torque | Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) flat screwdriver 0.2 in (5 mm) |
| Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) Philips no 1 screwdriver 0.2 in (5 mm) | |
| Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) flat screwdriver 0.2 in (6 mm) | |
| Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm) | |
| Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) pozidriv No 2 screwdriver 0.2 in (6 mm) | |
| Width | 1.8 in (45 mm) |
| Height | 6.06 in (154 mm) |
| Depth | 5.0 in (126 mm) |
| Net Weight | 2.0 lb(US) (0.9 kg) |
| Compatibility code | LUB |
| Environment | |
| IP degree of protection | IP20 IEC 60947-1 front panel and wired terminals) |
| IP20 IEC 60947-1 other faces) | |
| IP40 IEC 60947-1 front panel outside connection zone) | |
| Protective treatment | TH IEC 60068 |
| Ambient air temperature for operation | -13…140 °F (-25…60 °C) with LUCM |
| -13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD | |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Fire resistance | 1760 °F (960 °C) parts supporting live components IEC 60695-2-12 |
| 1202 °F (650 °C) IEC 60695-2-12 | |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 10 gn power poles open IEC 60068-2-27 |
| 15 gn power poles closed IEC 60068-2-27 | |
| Vibration resistance | 2 gn 5…300 Hz) power poles open IEC 60068-2-27 |
| 4 gn 5…300 Hz) power poles closed IEC 60068-2-27 | |
| Resistance to electrostatic discharge | 8 kV 3 in open air IEC 61000-4-2 |
| 8 kV 4 on contact IEC 61000-4-2 | |
| Non-dissipating shock wave | 1 kV serial mode 24...240 V AC IEC 60947-6-2 |
| 1 kV serial mode 48...220 V DC IEC 60947-6-2 | |
| 2 kV common mode 24...240 V AC IEC 60947-6-2 | |
| 2 kV common mode 48...220 V DC IEC 60947-6-2 | |
| Resistance to fast transients | 2 kV 3 serial link IEC 61000-4-4 |
| 4 kV 4 all circuits except for serial link IEC 61000-4-4 | |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 3 IEC 61000-4-3 |
| Immunity to radioelectric fields | 10 V IEC 61000-4-6 |
| Immunity to microbreaks | 3 ms control circuit |
| Immunity to voltage dips | 70 % / 500 ms IEC 61000-4-11 |
| Ordering and shipping details | |
| Category | US10I1122396 |
| Discount Schedule | 0I11 |
| GTIN | 3389110362787 |
| Returnability | Yes |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.165 in (5.500 cm) |
| Package 1 Width | 5.433 in (13.800 cm) |
| Package 1 Length | 6.654 in (16.900 cm) |
| Package weight(Lbs) | 29.877 oz (847.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 19.268 lb(US) (8.740 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 325.932 lb(US) (147.840 kg) |
