Description

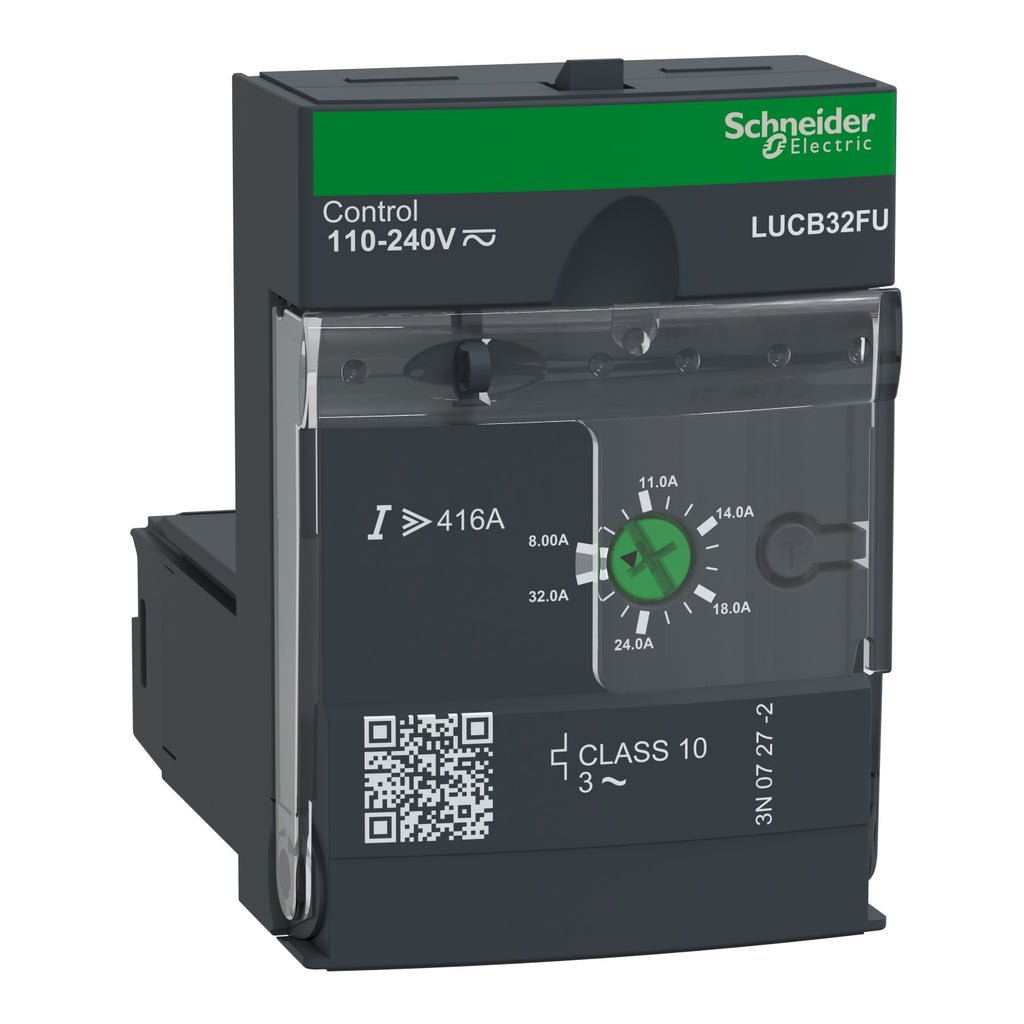

LUCB32FU - Schneider Electric - Square D TeSys Ultra Advanced Control Unit
TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
GENERAL SPECIFICATIONS
| Range | TeSys |
| Range of Product | TeSys Ultra |
| Product name | TeSys Ultra |
| Device short name | LUCB |
| Product or Component Type | Advanced control unit |
| Device Application | Motor control |
| Motor protection | |
| Product Specific Application | Basic protection and advanced functions, communication |
| main function available | Manual reset |
| Protection against overload and short-circuit | |
| Earth fault protection | |
| Protection against phase failure and phase imbalance | |
| Product compatibility | Power base LUB32 |
| Power base LUB38 | |
| Power base LUB320 | |
| Power base LUB380 | |
| Reversing contactor breaker LU2B32FU | |
| Reversing contactor breaker LU2B38FU | |
| [Ue] rated operational voltage | 690 V AC |
| Network frequency | 40...60 Hz |
| Load type | 3-phase motor self-cooled |
| Utilisation category | AC-44 |
| AC-43 | |
| AC-41 | |
| Motor power kW | 15 kW 400...440 V AC 50/60 Hz |
| 15 kW 500 V AC 50/60 Hz | |
| 18.5 kW 690 V AC 50/60 Hz | |
| rated motor current adjustment range | 8…32 A |
| Thermal overload class | Class 10 40…60 Hz -13…158 °F (-25…70 °C) IEC 60947-6-2 |
| Class 10 40…60 Hz -13…158 °F (-25…70 °C) UL 508 | |
| Tripping threshold | 14.2 x Ir +/- 20 % |
| Phase failure sensitivity | Yes |
| [Uc] control circuit voltage | 110...240 V AC |
| 110...220 V DC | |
| Complementary | |
| Control circuit voltage limits | 88...264 V AC 110...240 V in operation |
| 88...242 V DC 110...220 V in operation | |
| 55 V AC 110...240 V drop-out | |
| 55 V DC 110...220 V drop-out | |
| Typical current consumption | 280 mA 110...240 V AC I maximum while closing with LUB32 |
| 280 mA 110...240 V AC I maximum while closing with LUB38 | |
| 280 mA 110...220 V DC I maximum while closing with LUB32 | |
| 280 mA 110...220 V DC I maximum while closing with LUB38 | |
| 25 mA 110...240 V AC I rms sealed with LUB32 | |
| 25 mA 110...240 V AC I rms sealed with LUB38 | |
| 25 mA 110...220 V DC I rms sealed with LUB32 | |
| 25 mA 110...220 V DC I rms sealed with LUB38 | |
| Heat dissipation | 3 W control circuit with LUB32 |
| 3 W control circuit with LUB38 | |
| Operating time | 35 ms opening with LUB32 control circuit |
| 35 ms opening with LUB38 control circuit | |
| 50 ms closing with LUB32 control circuit | |
| 50 ms closing with LUB38 control circuit | |
| Reset | Manual reset |
| Standards | EN 60947-6-2 |
| IEC 60947-6-2 | |
| UL 60947-4-1, with phase barrier | |
| CSA C22.2 No 60947-4-1, with phase barrier | |
| Product Certifications | CE |
| UL | |
| CSA | |
| CCC | |
| EAC | |
| ASEFA | |
| ATEX | |
| Marine | |
| [Ui] rated insulation voltage | 690 V IEC 60947-6-2 |
| 600 V UL 60947-4-1 | |
| 600 V CSA C22.2 No 60947-4-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-6-2 |
| Safe separation of circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 |
| 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 | |
| Fixing mode | Plug-in (front face) |
| Width | 1.8 in (45 mm) |
| Height | 2.6 in (66 mm) |
| Depth | 2.4 in (60 mm) |
| Compatibility code | LUCB |
| Environment | |
| IP degree of protection | IP20 front panel and wired terminals IEC 60947-1 |
| IP20 other faces IEC 60947-1 | |
| IP40 front panel outside connection zone IEC 60947-1 | |
| Protective treatment | TH IEC 60068 |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Fire resistance | 1760 °F (960 °C) parts supporting live components IEC 60695-2-12 |
| 1202 °F (650 °C) IEC 60695-2-12 | |
| Shock resistance | 10 gn power poles open IEC 60068-2-27 |
| 15 gn power poles closed IEC 60068-2-27 | |
| Vibration resistance | 2 gn 5…300 Hz power poles open IEC 60068-2-6 |
| 4 gn 5…300 Hz power poles closed IEC 60068-2-6 | |
| Resistance to electrostatic discharge | 8 kV 3 in open air IEC 61000-4-2 |
| 8 kV 4 on contact IEC 61000-4-2 | |
| Non-dissipating shock wave | 1 kV serial mode IEC 60947-6-2 |
| 2 kV common mode IEC 60947-6-2 | |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 3 IEC 61000-4-3 |
| Resistance to fast transients | 2 kV 3 serial link IEC 61000-4-4 |
| 4 kV 4 all circuits except for serial link IEC 61000-4-4 | |
| Immunity to radioelectric fields | 10 V IEC 61000-4-6 |
| Immunity to microbreaks | 3 ms |
| Immunity to voltage dips | 70 % / 500 ms IEC 61000-4-11 |
| Ordering and shipping details | |
| Category | US10I1122397 |
| Discount Schedule | 0I11 |
| GTIN | 3389110364453 |
| Returnability | Yes |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.969 in (5.000 cm) |
| Package 1 Width | 3.150 in (8.000 cm) |
| Package 1 Length | 3.346 in (8.500 cm) |
| Package weight(Lbs) | 4.550 oz (129.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 23 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 7.106 lb(US) (3.223 kg) |
