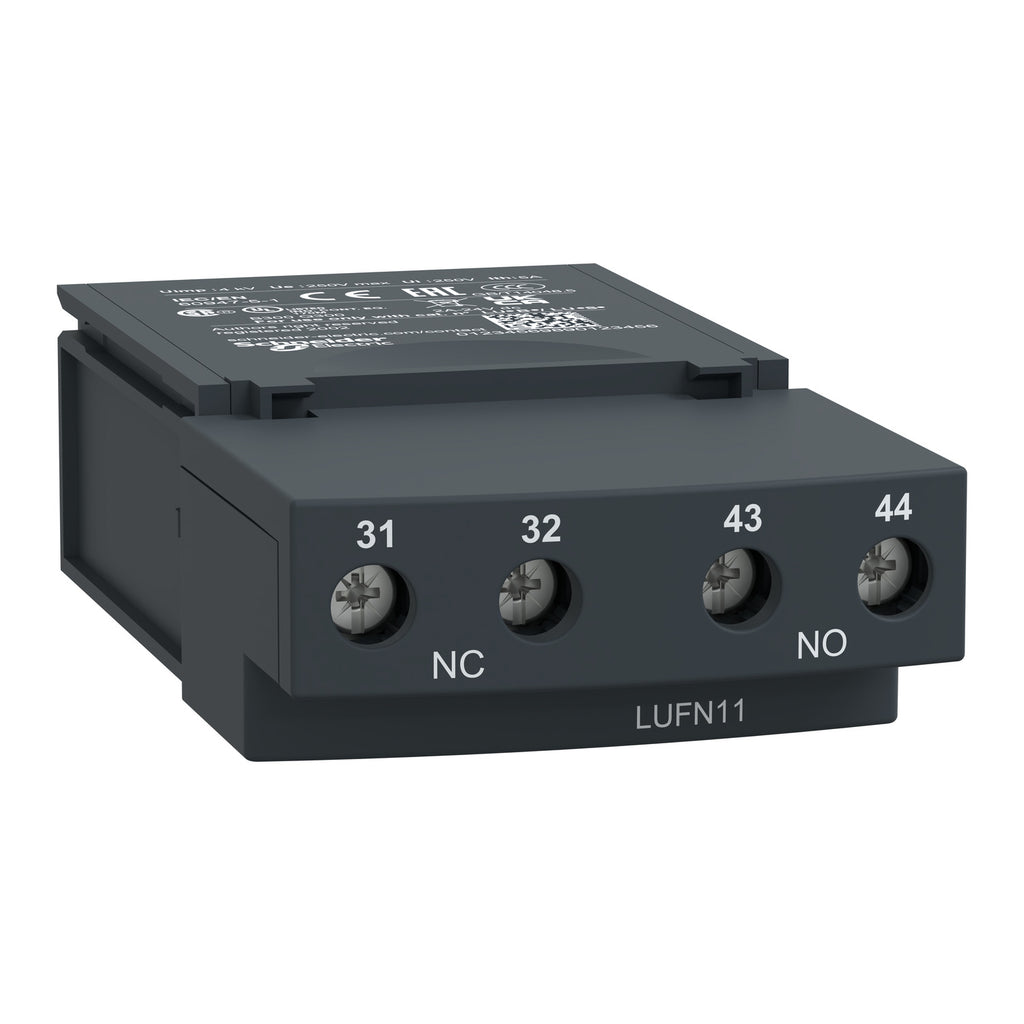

LUFN11 - Schneider Electric - Square D TeSys Ultra1 Auxiliary Contact Module
TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 1NO+1NC instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
GENERAL SPECIFICATIONS
| Range | TeSys |
|---|---|
| Device short name | LUFN |
| Product or Component Type | Auxiliary contact |
| Auxiliary contact composition | 1 NO + 1 NC |
|---|---|
| [Ue] rated operational voltage | <= 250 V AC <= 250 V DC |
| [Ui] rated insulation voltage | 250 V CSA 250 V IEC 60947-5-1 250 V UL |
| [Ith] conventional free air thermal current | 5 A |
| Minimum switching voltage | 17 V |
| minimum switching current | 5 mA |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| Category | US10I1122399 |
|---|---|
| Discount Schedule | 0I11 |
| GTIN | 3389110365177 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.74 in (9.5 cm) |
| Package 1 Width | 1.30 in (3.3 cm) |
| Package 1 Length | 1.89 in (4.8 cm) |
| Package 1 Weight | 1.6 oz (46.0 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 5.91 in (15.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 6.852 lb(US) (3.108 kg) |
