Description
| Main | |
|---|---|
| Range | ComPact |
| Range of Product | ComPacT NSXm |
| Device short name | MX |
| Product or Component Type | Voltage release |
| Device Application | Control |
| Voltage release type | Opening coilShunt trip release |
| Control Type | Standard |
| [Uc] control circuit voltage | 110...130 V AC 50/60 Hz125 V DC |
| Range compatibility | ComPact ComPacT NSXmComPact ComPact NSXmPowerPact PowerPact B |
| Complementary | |
| Operating threshold | 0.7 Un opening |
| Response time | < 50 ms |
| Control signal type | ImpulseMaintained |
| Impulse duration | >= 20 ms |
| Auxiliary connection terminal | spring |
| Ordering and shipping details | |
| Category | US10DE201136 |
| Discount Schedule | 0DE2 |
| GTIN | 3606485413068 |
| Returnability | Yes |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.6 in (1.5 cm) |
| Package 1 Width | 2.2 in (5.7 cm) |
| Package 1 Length | 2.5 in (6.3 cm) |
| Package weight(Lbs) | 1.3 oz (36.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 11.8 in (30.0 cm) |
| Package 2 Width | 11.8 in (30.0 cm) |
| Package 2 Length | 15.7 in (40.0 cm) |
| Package 2 Weight | 17.2 lb(US) (7.8 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |

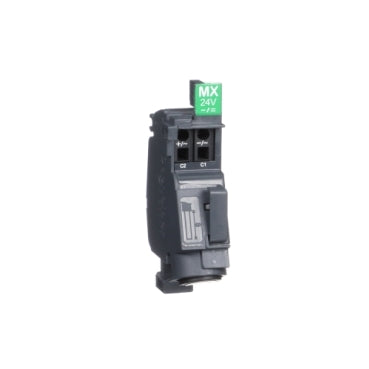

Product Datasheet
LV426843
LV426843
