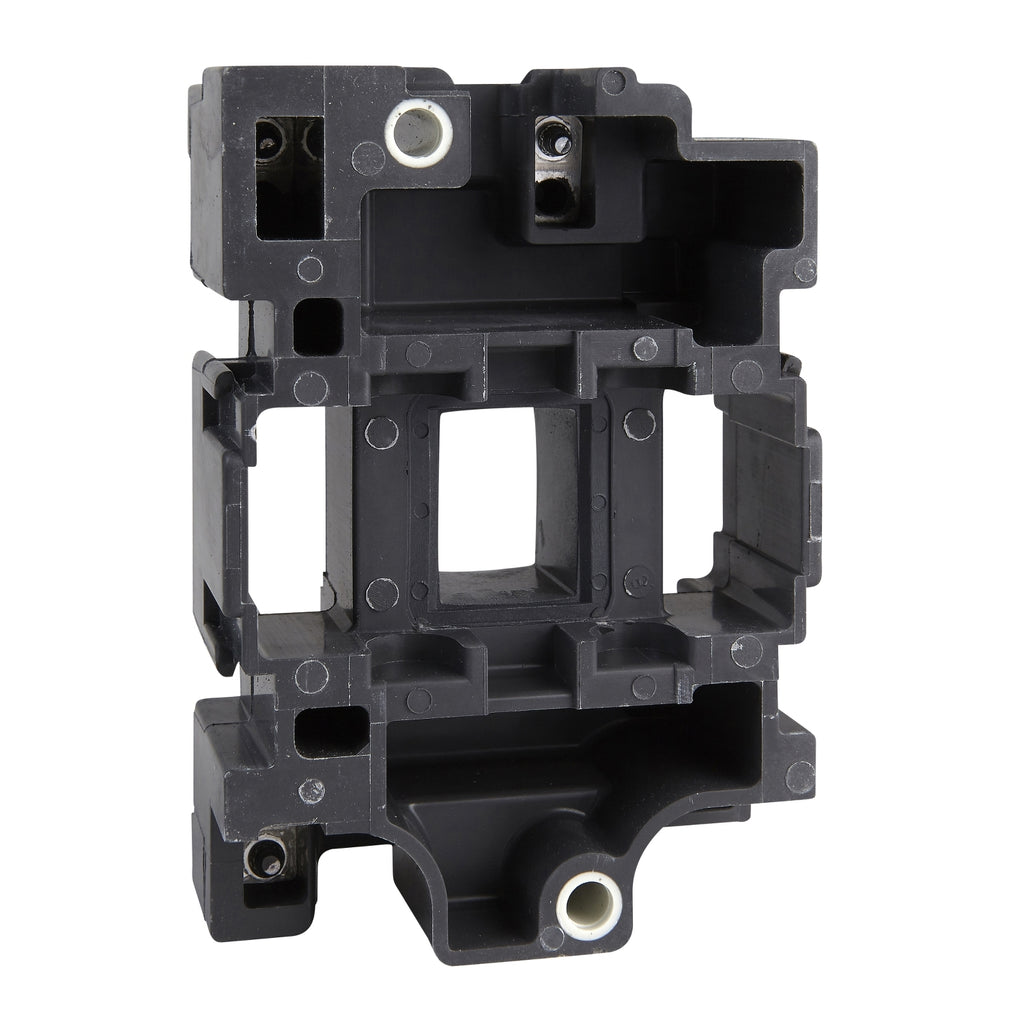

LX1D6G7 - Schneider Electric - 120 V Square D Magnetic Coil
TeSys D replacement coils are for replacing the operating coil in old TeSys D contactors with 40 amperes to 95 ampere ratings. This coil has an operating voltage of 120 Vac 50/60 Hz. This coil has an inrush consumption rating of 220 VA and a sealed consumpation rating ofd 22 VA. The 60Hz operating range is 85 to 110% of nomial voltage at 55 degrees C.
GENERAL SPECIFICATIONS
| Range | TeSys |
|---|---|
| Product or Component Type | Contactor coil |
| Device short name | LX1D6 |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Average resistance | 32 Ohm 68 degF (20 degC) |
| Inductance of closed circuit | 2 H |
| Product Compatibility | LC1D40 LC1D50 LC1D65...D95 |
| Mechanical durability | 4 Mcycles |
| Maximum operating rate | 3600 cyc/h 140 degF (60 degC) |
| Coil technology | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <131 degF (55 degC)) Operational: 0.8...1.1 Uc at 50 Hz (at <131 degF (55 degC)) Operational: 0.85...1.1 Uc at 60 Hz (at <131 degF (55 degC)) |
| Inrush power in VA | 245 VA 60 Hz cos phi 0.75 (at 68 degF (20 degC)) 245 VA 50 Hz cos phi 0.75 (at 68 degF (20 degC)) |
| Hold-in power consumption in VA | 26 VA 60 Hz cos phi 0.3 (at 68 degF (20 degC)) 26 VA 50 Hz cos phi 0.3 (at 68 degF (20 degC)) |
| Heat dissipation | 6...10 W 50/60 Hz |
| Ambient air temperature for operation | 23...140 degF (-5...60 degC) |
|---|---|
| Net Weight | 0.62 lb(US) (0.28 kg) |
| Category | US10I1222341 |
|---|---|
| Discount Schedule | 0I12 |
| GTIN | 3389110208511 |
| Returnability | Yes |
| Country of origin | CZ |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.92 in (12.500 cm) |
| Package 1 Length | 3.54 in (9.000 cm) |
| Package 1 Weight | 11.111 oz (315.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 11.735 lb(US) (5.323 kg) |
