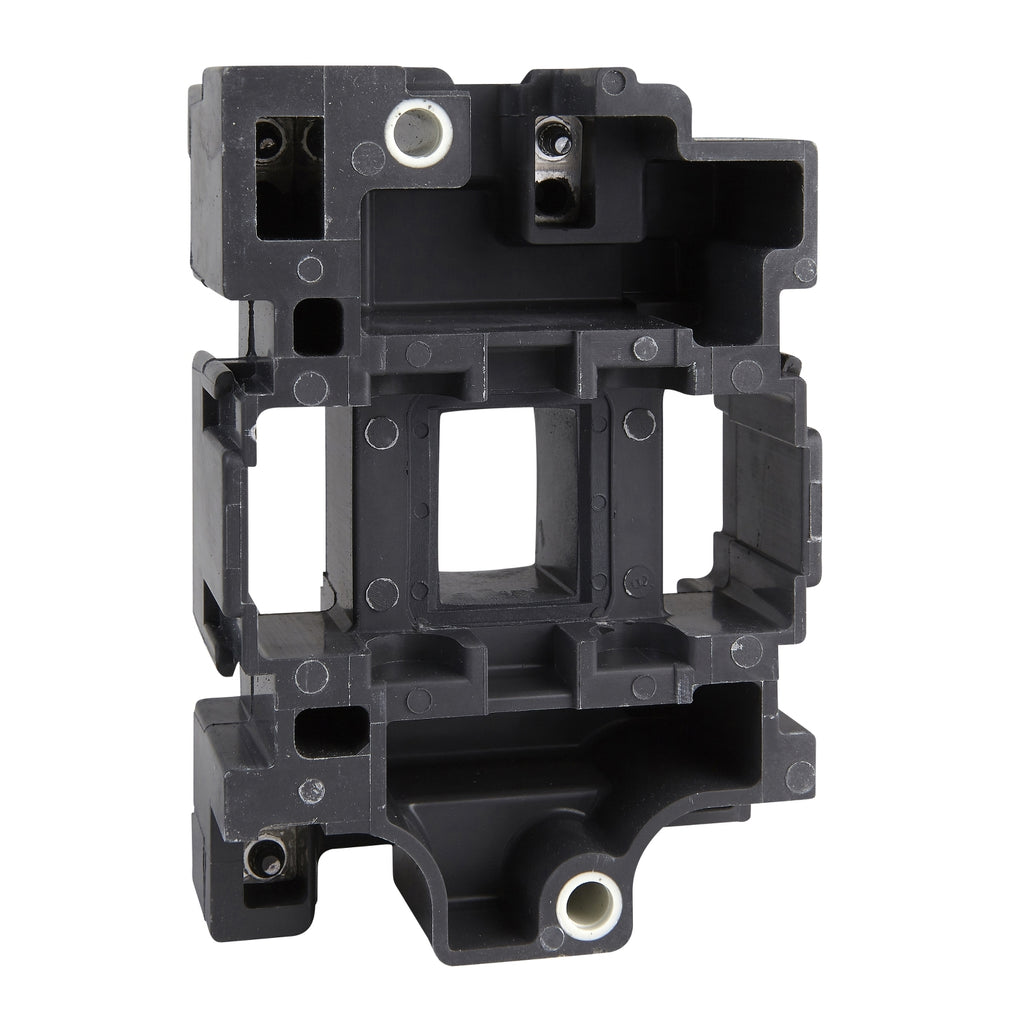

LX1D6U7 - Schneider Electric - 240 V Square D Magnetic Coil
TeSys Deca replacement AC coil 240V 50/60Hz for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1 D40 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55 degC
GENERAL SPECIFICATIONS
| Range | TeSys |
|---|---|
| Product or Component Type | Contactor coil |
| Device short name | LX1D6 |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Average resistance | 131 Ohm 68 degF (20 degC) |
| Inductance of closed circuit | 8.3 H |
| Product Compatibility | LC1D80 LC1D95 |
| Mechanical durability | 4 Mcycles |
| Maximum operating rate | 3600 cyc/h 140 degF (60 degC) |
| Coil technology | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <131 degF (55 degC)) Operational: 0.8...1.1 Uc at 50 Hz (at <131 degF (55 degC)) Operational: 0.85...1.1 Uc at 60 Hz (at <131 degF (55 degC)) |
| Inrush power in VA | 245 VA 60 Hz cos phi 0.75 (at 68 degF (20 degC)) 245 VA 50 Hz cos phi 0.75 (at 68 degF (20 degC)) |
| Hold-in power consumption in VA | 26 VA 60 Hz cos phi 0.3 (at 68 degF (20 degC)) 26 VA 50 Hz cos phi 0.3 (at 68 degF (20 degC)) |
| Heat dissipation | 6...10 W 50/60 Hz |
| Ambient Air Temperature for Operation | 23...140 degF (-5...60 degC) |
|---|---|
| Product Weight | 0.62 lb(US) (0.28 kg) |
| Category | US10I1222341 |
|---|---|
| Discount Schedule | 0I12 |
| GTIN | 3389110208863 |
| Returnability | Yes |
| Country of origin | CZ |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.362 in (6.000 cm) |
| Package 1 Width | 3.504 in (8.900 cm) |
| Package 1 Length | 4.921 in (12.500 cm) |
| Package weight(Lbs) | 11.041 oz (313.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 11.696 lb(US) (5.305 kg) |
