Description

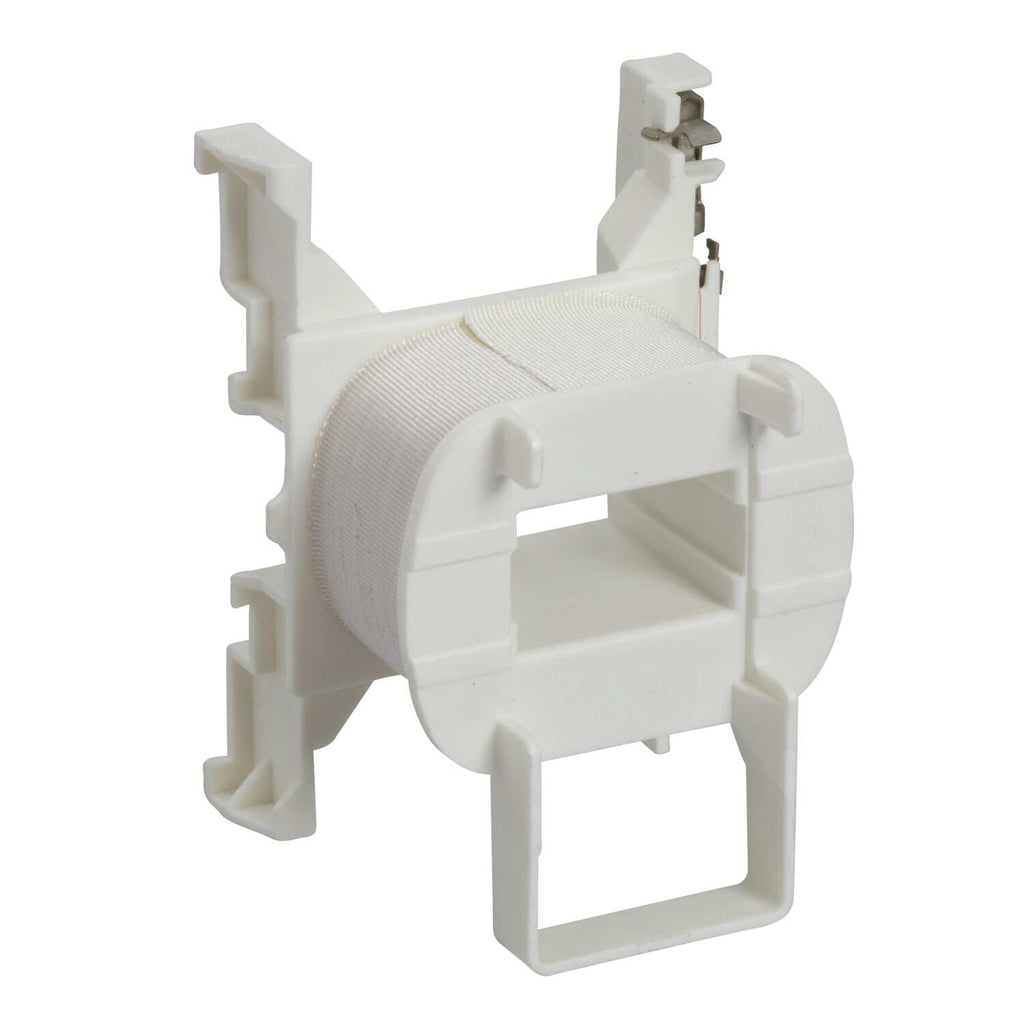

LXD1F7 - Schneider Electric - 110 Volt Square D Magnetic Coil
TeSys Deca replacement coil 110V AC 50/60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60 degC
GENERAL SPECIFICATIONS
| Range | TeSys |
|---|---|
| Product or Component Type | Contactor coil |
| Device short name | LXD1 |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 110 V AC 50/60 Hz |
| Average resistance | 124.1 Ohm 68 degF (20 degC) |
| Inductance of closed circuit | 4.6 H |
| Product Compatibility | LC1DT20...DT40 LC1D09...D38 CAD |
| Mechanical durability | 15 Mcycles |
| Maximum operating rate | 3600 cyc/h 140 degF (60 degC) |
| Coil technology | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <140 degF (60 degC)) Operational: 0.8...1.1 Uc at 50 Hz (at <140 degF (60 degC)) Operational: 0.85...1.1 Uc at 60 Hz (at <140 degF (60 degC)) |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 68 degF (20 degC)) 70 VA 50 Hz cos phi 0.75 (at 68 degF (20 degC)) |
| Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68 degF (20 degC)) 7 VA 50 Hz cos phi 0.3 (at 68 degF (20 degC)) |
| Heat dissipation | 2...3 W 50/60 Hz |
| Ambient air temperature for operation | 23...140 degF (-5...60 degC) |
|---|---|
| Net Weight | 0.15 lb(US) (0.07 kg) |
| Category | US10I1222341 |
|---|---|
| Discount Schedule | 0I12 |
| GTIN | 3389110467734 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.57 in (4.000 cm) |
| Package 1 Width | 2.48 in (6.300 cm) |
| Package 1 Length | 1.77 in (4.500 cm) |
| Package 1 Weight | 2.469 oz (70.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 16.380 lb(US) (7.430 kg) |
