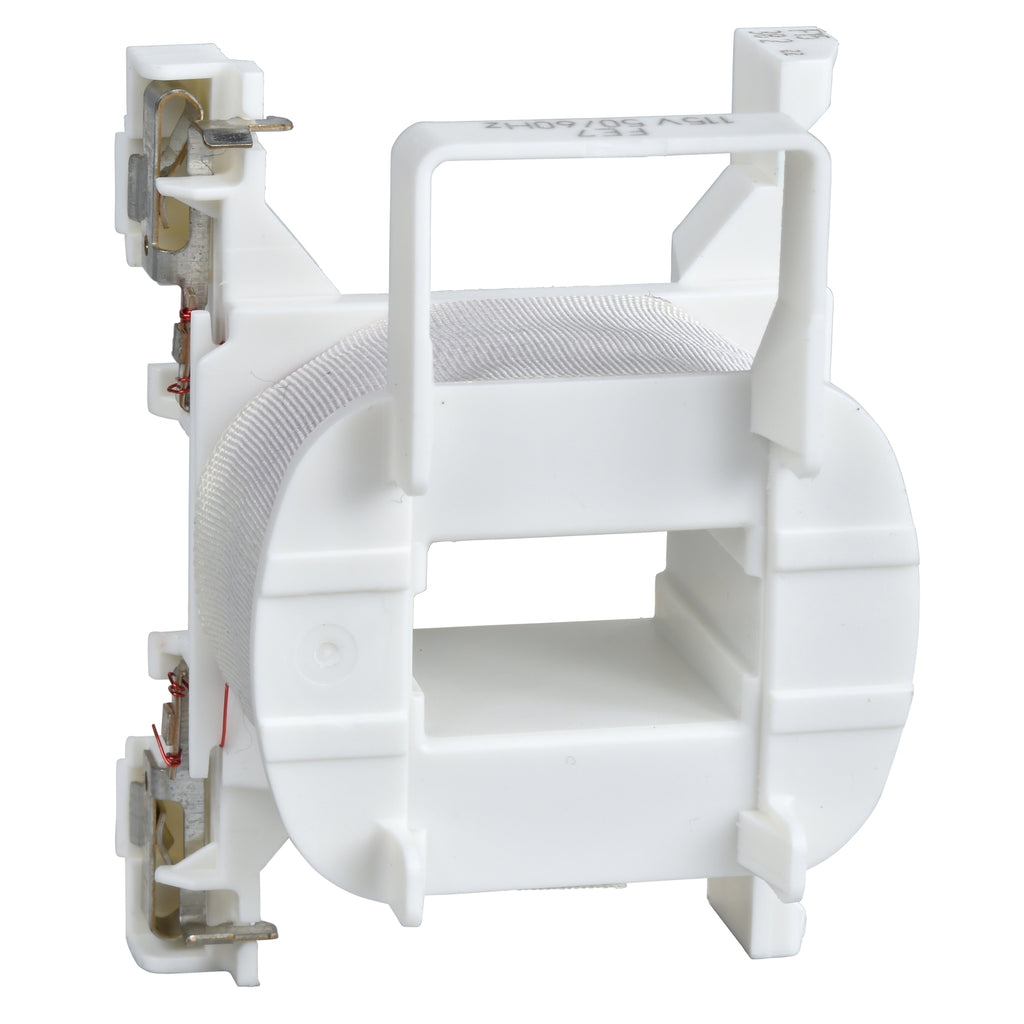

LXD1LE7 - Schneider Electric - 208 V Square D Magnetic Coil
This product is TeSys Deca replacement AC coil 208V 60Hz for TeSys Deca contactors. It is applied on contactors LC1D09...D38 and LC1DT20…DT40. It operates in the voltage limits 0.85-1.1 Uc and environments until 60°C
GENERAL SPECIFICATIONS
| Range | TeSys |
|---|---|
| Product or Component Type | Contactor coil |
| Device short name | LXD1 |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 208 V AC 50/60 Hz |
| Average resistance | 430.4 Ohm 68 °F (20 °C) |
| Inductance of closed circuit | 16 H |
| Product Compatibility | CAD LC1DT20...DT40 LC1D09...D38 |
| Mechanical durability | 15 Mcycles |
| Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Coil technology | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <140 °F (60 °C)) Operational: 0.8...1.1 Uc at 50 Hz (at <140 °F (60 °C)) |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Heat dissipation | 2…3 W 50/60 Hz |
| Ambient air temperature for operation | 23…140 °F (-5…60 °C) |
|---|---|
| Net Weight | 0.15 lb(US) (0.07 kg) |
| Category | US10I1222341 |
|---|---|
| Discount Schedule | 0I12 |
| GTIN | 3389110970913 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.5 in (6.4 cm) |
| Package 1 Width | 1.8 in (4.5 cm) |
| Package 1 Length | 1.6 in (4 cm) |
| Package weight(Lbs) | 2.5 oz (71 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 5.9 in (15 cm) |
| Package 2 Width | 5.9 in (15 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 5.218 lb(US) (2.367 kg) |
