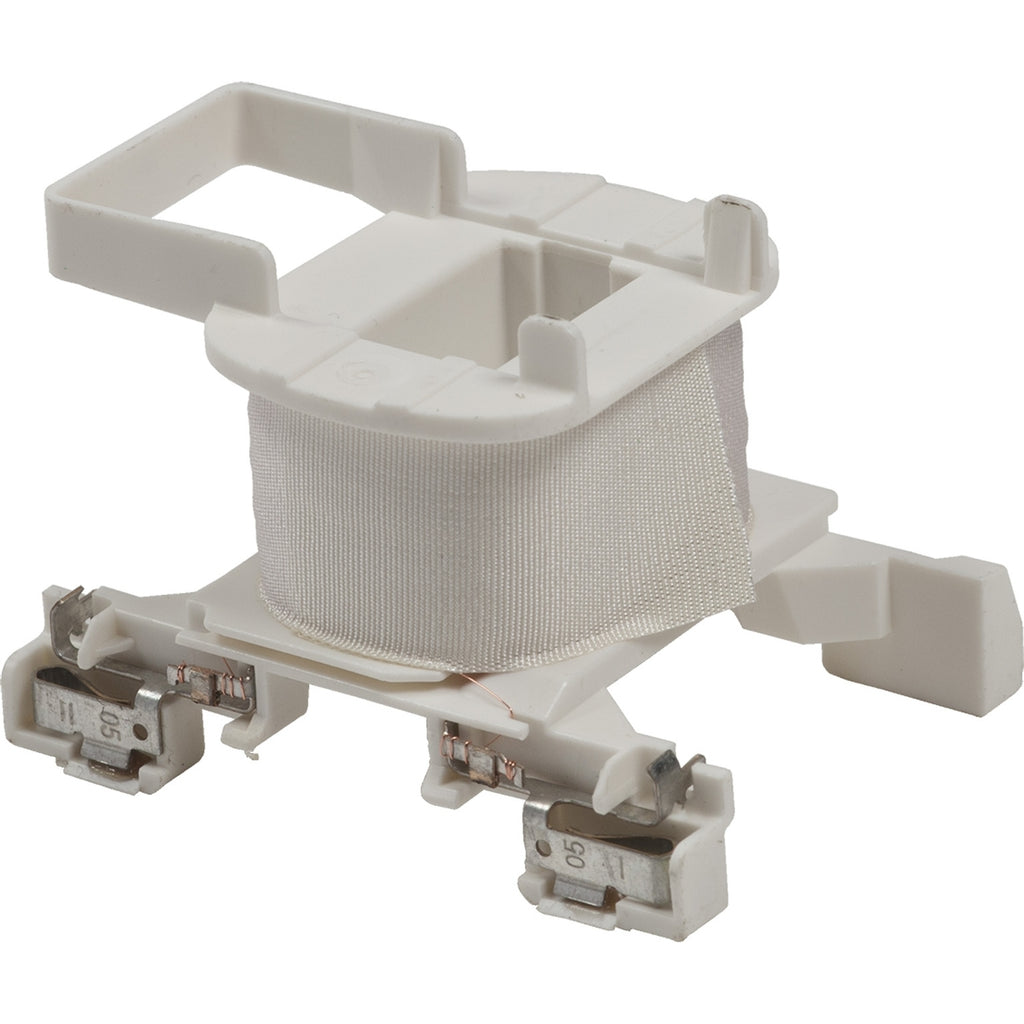

LXD1W7- Schneider Electric - Square D Magnetic Contactor coil
The LXD1W7 is a robust AC magnetic contactor coil from the Schneider Electric TeSys range (Square D product family), designed to provide reliable and efficient control of AC contactors in industrial and commercial electrical systems.
GENERAL SPECIFICATIONS
| Range | TeSys |
| Product or Component Type | Contactor coil |
| Device short name | LXD1 |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 277 V AC 50/60 Hz |
| Average resistance | 800.7 Ohm 68 °F (20 °C) |
| Inductance of closed circuit | 29 H |
| Product Compatibility | LC1DT20...DT40 |
| LC1D09...D38 | |
| CAD | |
| Mechanical durability | 15 Mcycles |
| Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Complementary | |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <140 °F (60 °C)) |
| Operational: 0.8...1.1 Uc at 50 Hz (at <140 °F (60 °C)) | |
| Operational: 0.85...1.1 Uc at 60 Hz (at <140 °F (60 °C)) | |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) | |
| Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) | |
| Heat dissipation | 2…3 W 50/60 Hz |
| Environment | |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) |
| Product Weight | 0.15 lb(US) (0.07 kg) |
| Ordering and shipping details | |
| Category | US10I1222341 |
| Discount Schedule | 0I12 |
| GTIN | 3389110467970 |
| Returnability | No |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.8 in (7.0 cm) |
| Package 1 Width | 1.8 in (4.5 cm) |
| Package 1 Length | 1.4 in (3.5 cm) |
| Package weight(Lbs) | 2.8 oz (79.0 g) |
