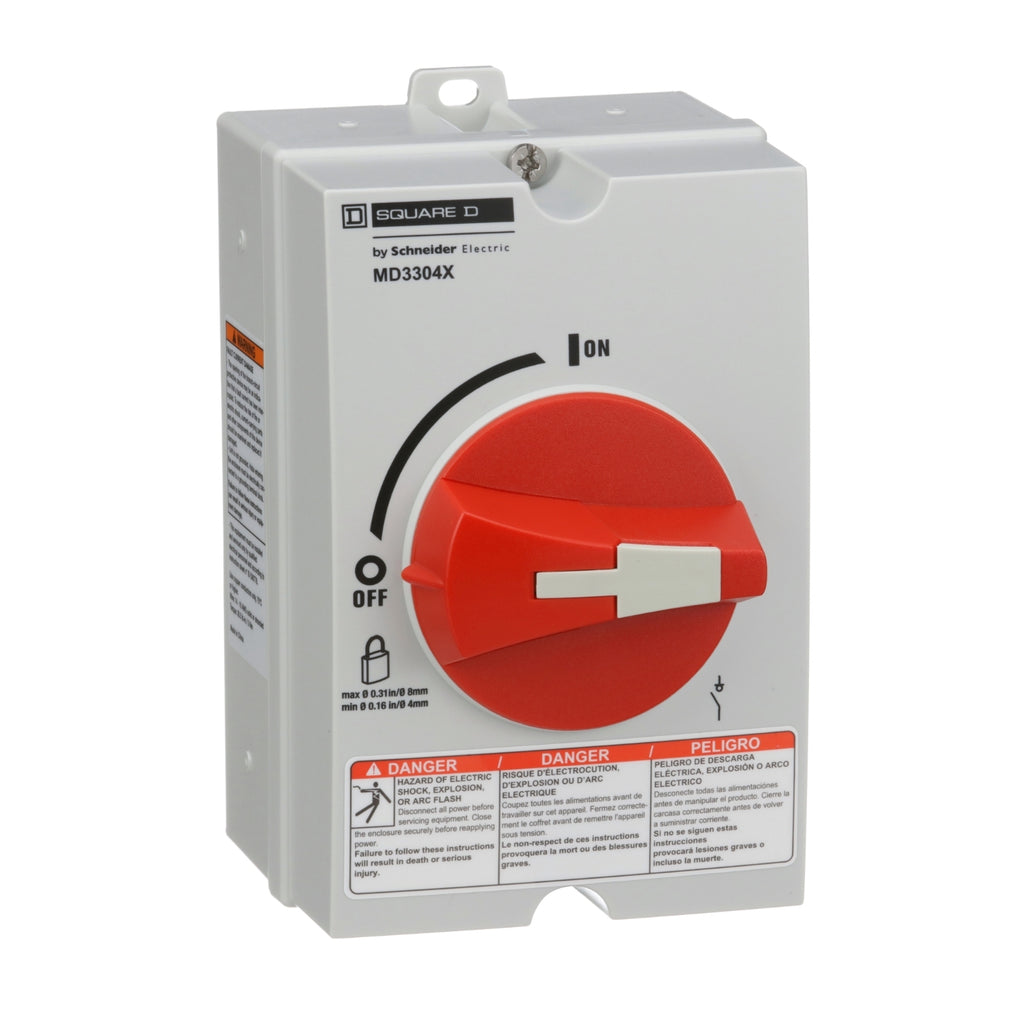

MD3304X - Schneider Electric - 30 Amp NEMA Motor Disconnect Switch
The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This three pole 30 A motor disconnect switch has a 7.5 HP rating at 240 VAC, a 20 HP rating at 480 VAC and a 25 HP rating at 600VAC. The red handle interlock prevents the removal of the cover when the switch is in the ON position. This MD motor disconnect switch has an extremely small footprint. It is 6.38 inches tall, 3.9 inches wide and 4.37 deep. Switch is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Main | |
| Range | MD |
| Product | Motor Disconnect Switch |
| Current Rating | 30 A |
| Horsepower Rating | 7.5 hp 220/240 V AC |
| 20 hp 440/480 V AC | |
| 25 hp 600 V AC | |
| Enclosure Rating | NEMA 4X |
| Certifications | UL Listed |
| Complementary | |
| Height | 6.38 in (162.05 mm) |
| Width | 3.90 in (99.06 mm) |
| Depth | 4.37 in (111.00 mm) |
| Product Weight | 1.50 lb(US) (0.68 kg) |
| Ordering and shipping details | |
| Category | US10CP121734 |
| Discount Schedule | 0CP1 |
| GTIN | 3606480190223 |
| Returnability | Yes |
| Country of origin | TN |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.724 in (12.000 cm) |
| Package 1 Width | 5.000 in (12.700 cm) |
| Package 1 Length | 7.087 in (18.000 cm) |
| Package weight(Lbs) | 24.004 oz (680.500 g) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 15.748 in (40.000 cm) |
| Package 2 Length | 23.622 in (60.000 cm) |
| Package 2 Weight | 28.867 lb(US) (13.094 kg) |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 17.717 in (45.000 cm) |
| Package 3 Width | 31.496 in (80.000 cm) |
| Package 3 Length | 47.244 in (120.000 cm) |
| Package 3 Weight | 159.562 lb(US) (72.376 kg) |
