Description

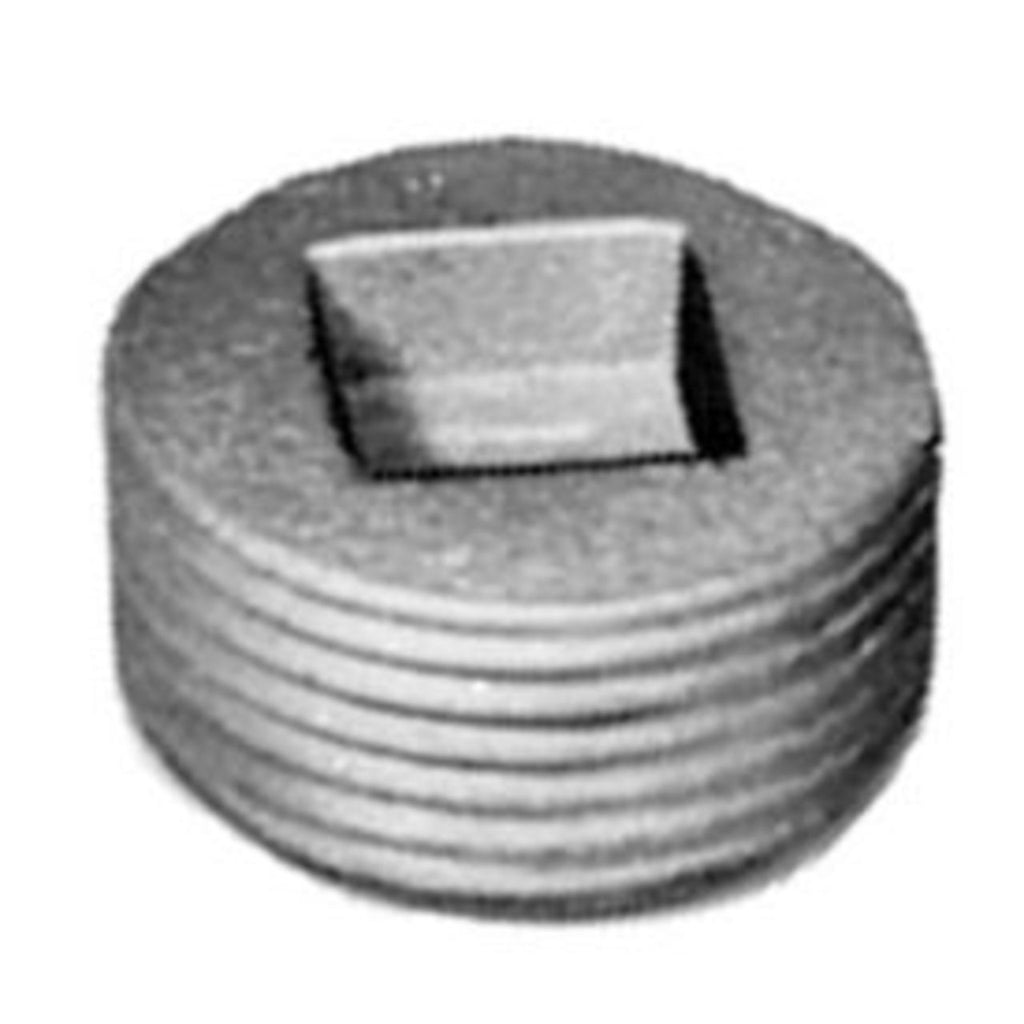

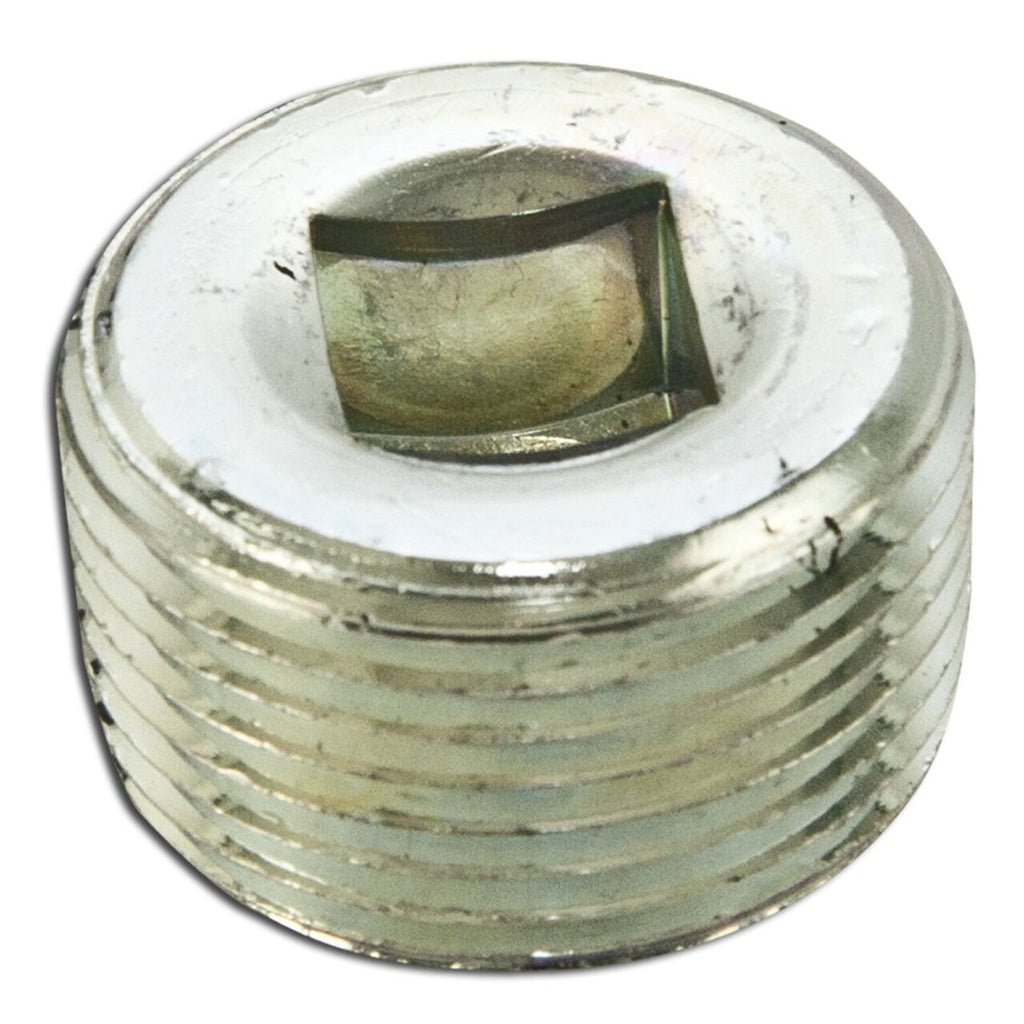

PLG100RA - Appleton - 1" Recessed Head Aluminum Explosion Proof Close-Up Plug
Aluminum version of the APPPLG100R conduit plug, also for 1" conduit. Offers lightweight, corrosion-resistant sealing for threaded hubs. Ideal for wet or corrosive areas. Maintains equipment safety and enclosure integrity.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
- PLG Plugs Standard Materials and Finishes
- 1/2 thru 1: copperfree (4/10 of 1% max.) aluminum with natural finish or steel with zinc electroplate. 1-1/4 thru 6: copperfree (4/10 of 1% max.) aluminum with natural finish or malleable iron with zinc electroplate
- BR Reducers Standard Materials and Finishes
- Copperfree (4/10 of 1% max.) aluminum with epoxy powder coat finish or malleable iron triple-coat finish of (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat
- Options
- Urethane paint available on select items (add suffix -UP)
PRODUCT DATASHEET
