Description

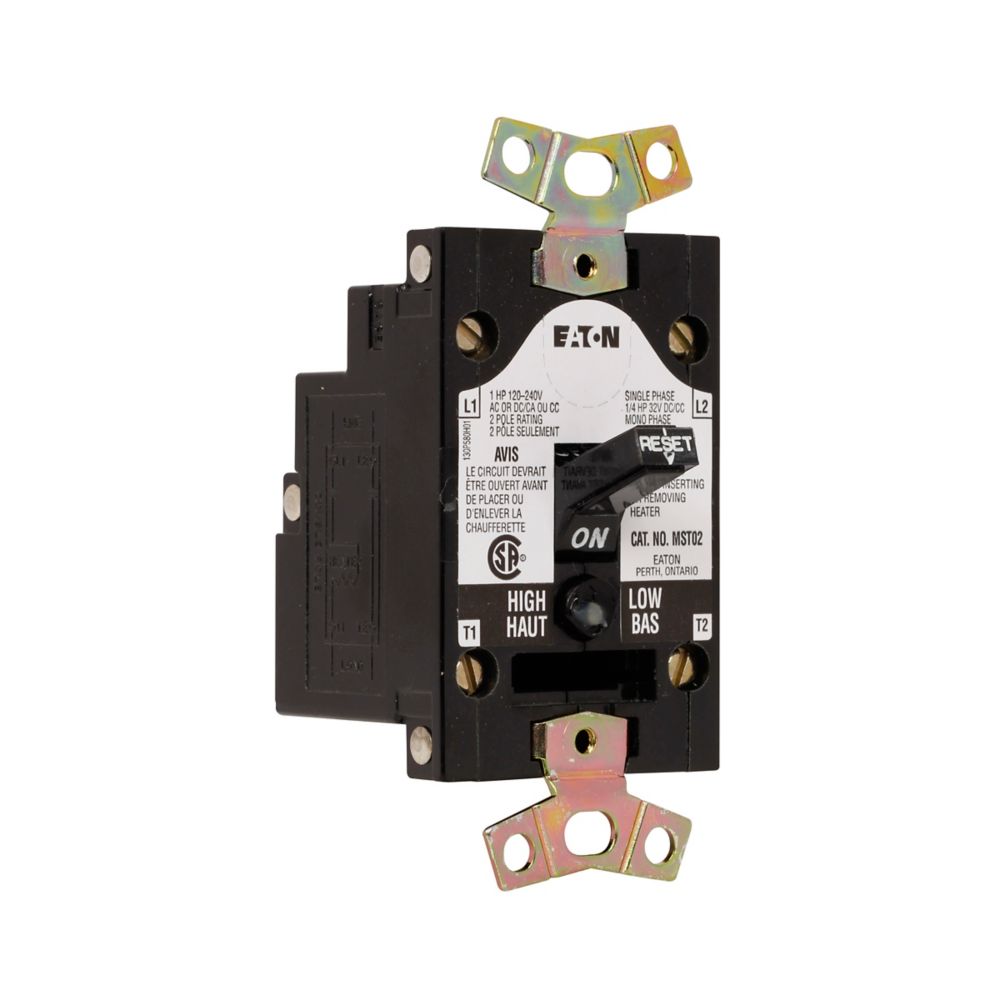

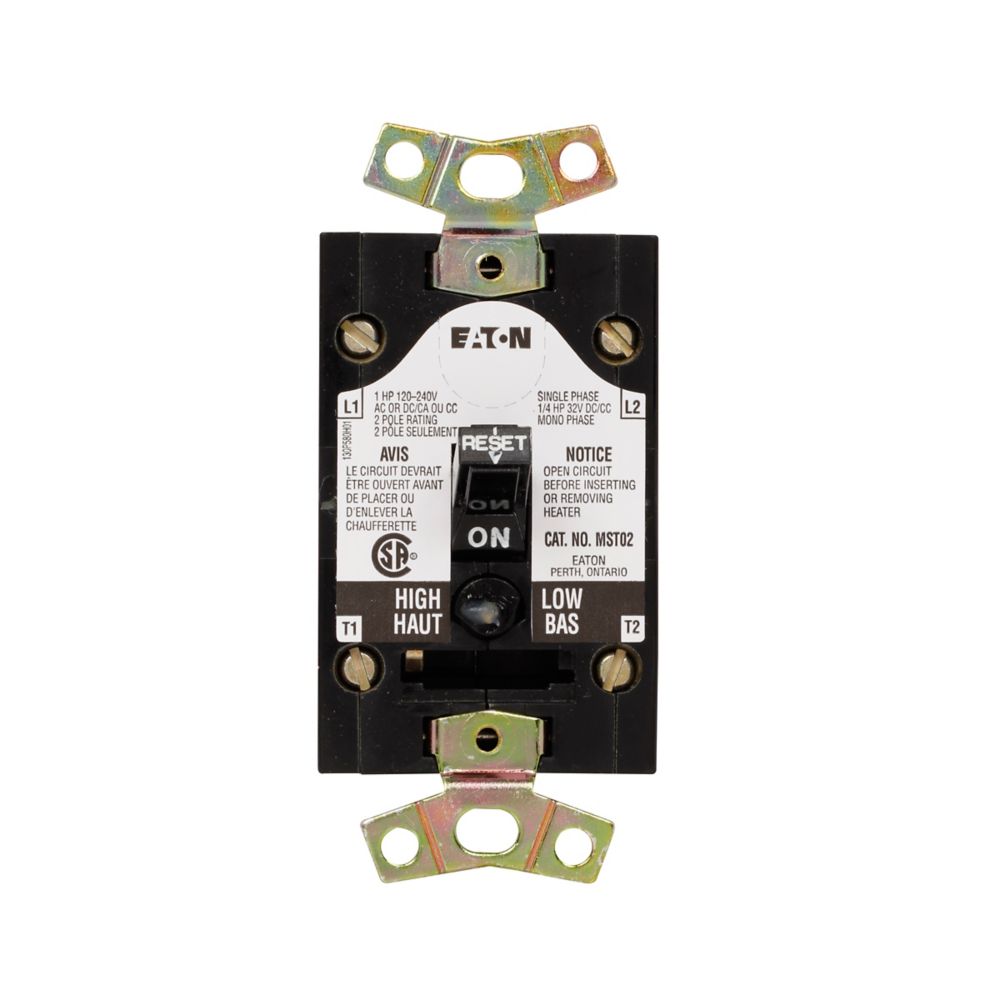

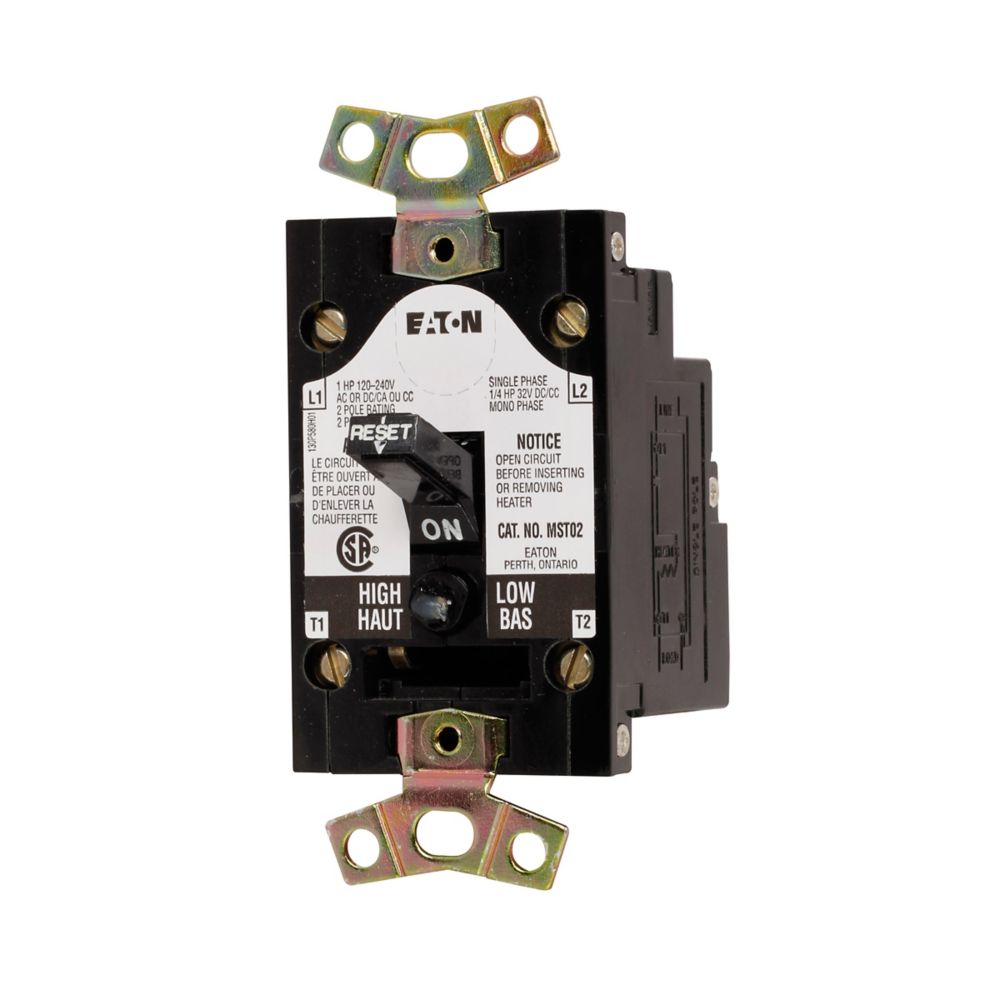

MST02 - Eaton Cutler Hammer - 1PH 2P Manual Motor Starter Toggle Switch
Eaton NEMA starter, Space SVG reversing starter, 1NO contacts, 208V Coil, Nema Size 0, 0.35-1.65 A
GENERAL SPECIFICATIONS
| Product Name | Eaton NEMA starter |
| Catalog Number | MST02 |
| UPC | 786678201269 |
| Product Length/Depth | 5.5 in |
| Product Height | 6.3 in |
| Product Width | 1.77 in |
| Product Weight | 1.12 lb |
| Certifications | CSA Certified UL Listed |
| Catalog Notes | Does not include heater. |
| Global Catalog | MST02 |
| Product Type | Starter |
PRODUCT SPECIFICATIONS
| Horsepower | 0.25 hp, 1 hp |
| Number of poles | Two-pole |
| Type | Open |
| Voltage rating | 120/240 Vac/dc at 1 hp, 32 Vdc at 0.25 hp |
| Size | NEMA size 0 |
