Description

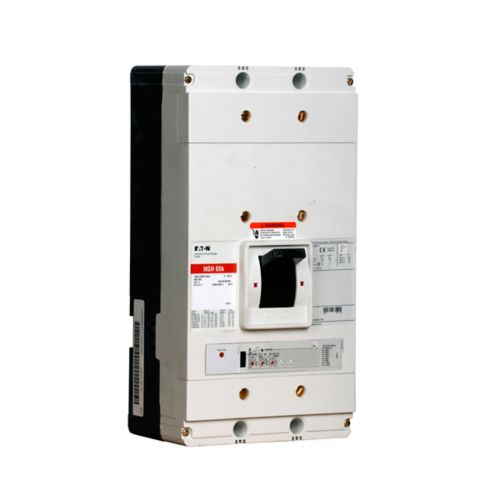

NGH312036E - Eaton - 1200 A 480 Vac Series G Electronic Molded Case Circuit Breakers
Eaton Series G electronic molded case circuit breaker, NG-frame, NG, Digitrip 310 RMS, Electronic LSIG trip, Three-pole, 1200 A, 480 Vac, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, Imperial, 50/60 Hz, 80% rated
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series G electronic molded case circuit breaker
|
| Catalog Number |
NGH312036E
|
| UPC |
786685379289
|
| Product Length/Depth |
6 in
|
| Product Height |
9 in
|
| Product Width |
9 in
|
| Product Weight |
48 lb
|
| Compliances |
HACR Rated
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
All Eaton NG-Frame circuit breakers are suitable for reverse feed use. Breakers do not ship with lugs
|
| Product Type |
Electronic molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
1200 A
|
| Voltage rating |
480 Vac
|
| Trip Type |
T172
|
| Circuit breaker type |
NG
|
| Rating |
80% rated
|
| Series |
Series G
|
| Terminals |
Line and load
|
| Frame |
NG
|
| Frequency rating |
50 to 60 Hz
|
| Mounting hardware |
Imperial
|
| Interrupt rating |
100 kAIC at 240 Vac
65 kAIC at 480 Vac |
| Number of poles |
Three-pole
|
| Type |
Complete breaker
|
PRODUCT DATASHEET
