Description

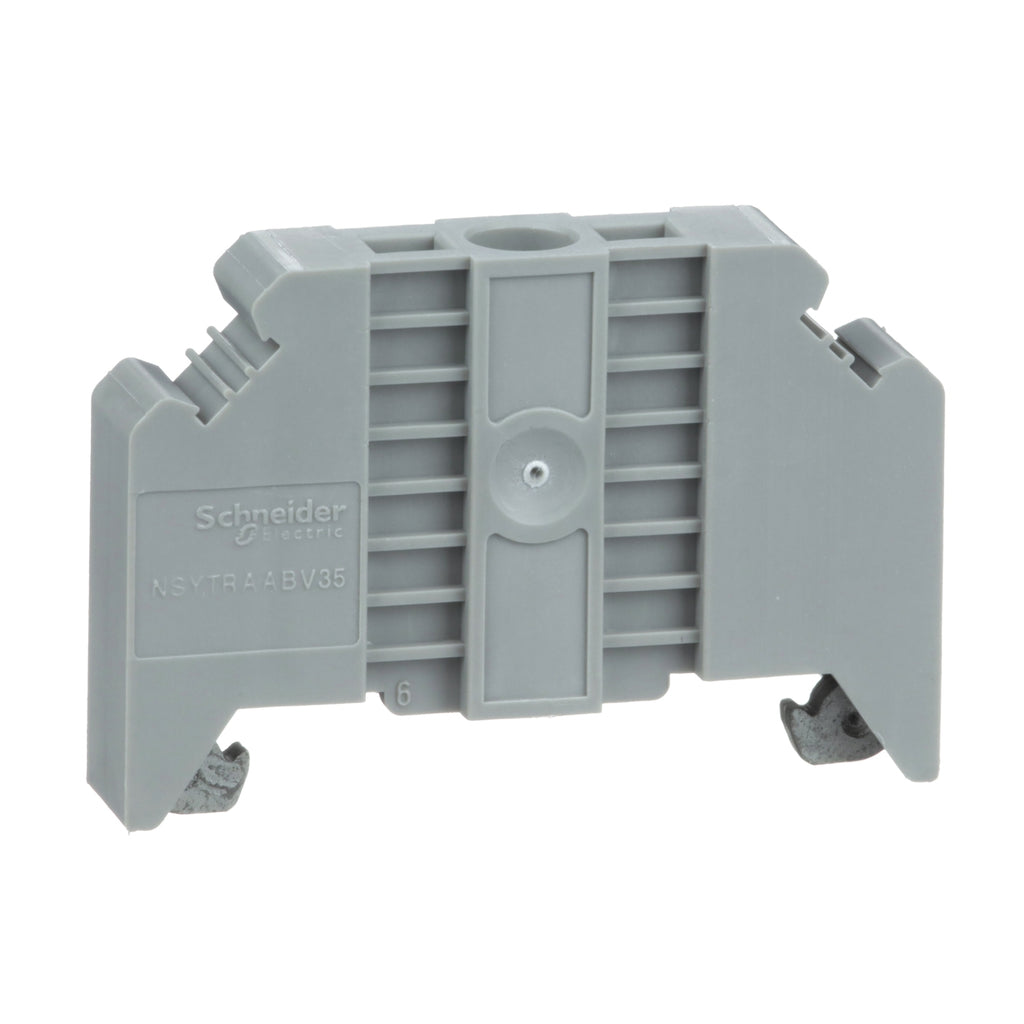

NSYTRAABV35 - Schneider Electric - Square D Linergy Terminal Blocks
Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. Mounting by screws. Sold in lots of 50 units.
GENERAL SPECIFICATIONS
| Range | Linergy |
|---|---|
| product name | TR |
| Product or Component Type | End stop |
| Device short name | TRA |
| Accessory / separate part category | Mounting accessory |
| Product compatibility | TRV screw terminal terminal block TRP push-in terminal block TRR spring terminal terminal block TRH IDC terminal block |
| Length | 2.0 in (50.5 mm) |
| Thickness | 0.4 in (9.5 mm) |
| Mounting Mode | By screws |
|---|---|
| Quantity per Set | Set of 50 |
| Net Weight | 0.5 oz (14.8 g) |
| color | Gray |
| Category | US10CP521715 |
|---|---|
| Discount Schedule | 0CP5 |
| GTIN | 3606480534683 |
| Returnability | Yes |
| Country of origin | DE |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.374 in (0.950 cm) |
| Package 1 Width | 1.299 in (3.300 cm) |
| Package 1 Length | 1.929 in (4.900 cm) |
| Package weight(Lbs) | 0.494 oz (14.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 1.457 in (3.700 cm) |
| Package 2 Width | 4.134 in (10.500 cm) |
| Package 2 Length | 9.646 in (24.500 cm) |
| Package 2 Weight | 25.256 oz (716.000 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 1150 |
| Package 3 Height | 11.811 in (30.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 37.390 lb(US) (16.960 kg) |
PRODUCT DATASHEET
