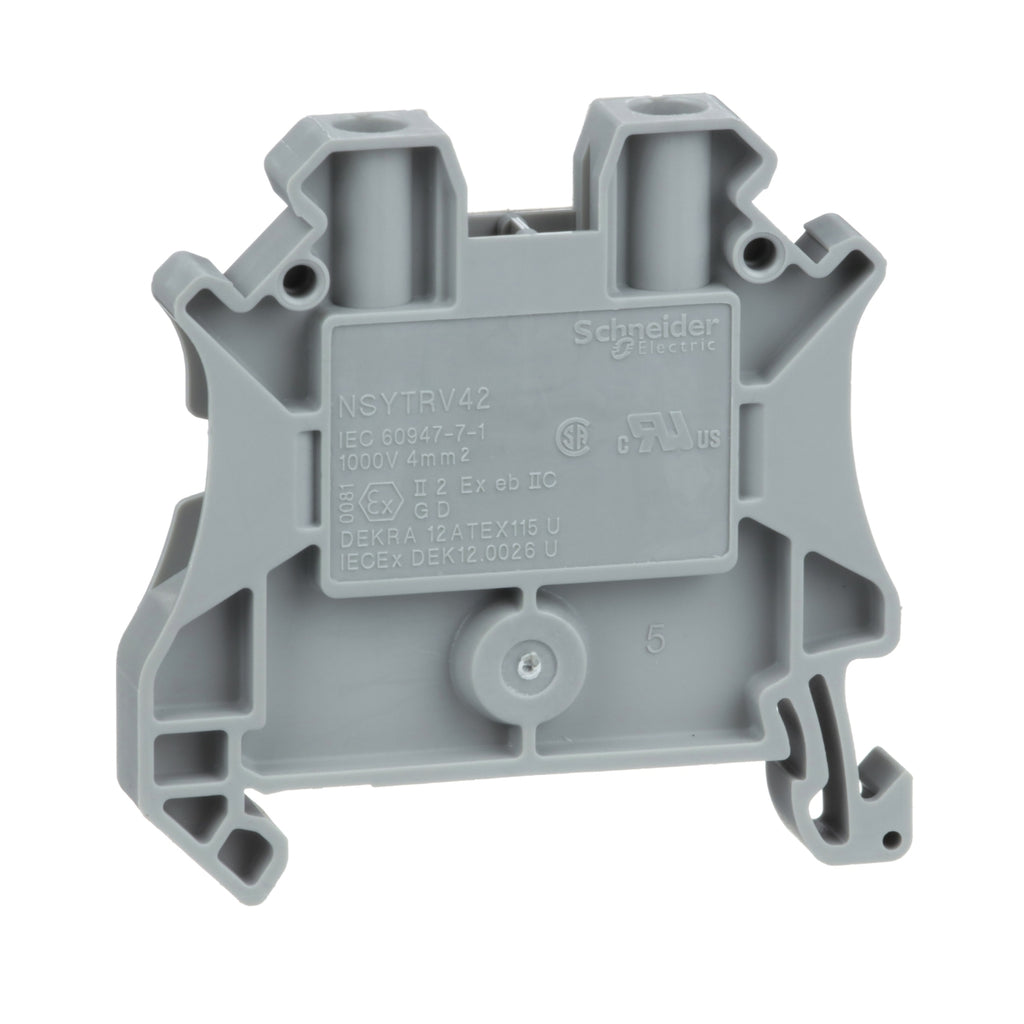

NSYTRV42 - Schneider Electric - Square D Linergy Terminal Blocks
Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).
GENERAL SPECIFICATIONS
| Range | Linergy |
|---|---|
| product name | Linergy TR |
| Product or Component Type | Terminal block |
| Device short name | TRV |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting Mode | Clip-on |
| Nominal cross section | 0.006 in² (4 mm²) |
| Length | 1.9 in (47.7 mm) |
| color | Gray |
| Quantity per Set | Set of 50 |
| Width | 0.2 in (6.2 mm) |
|---|---|
| Height | 1.9 in (47.5 mm) |
| Connections - terminals | 1 x screw terminal upstream M3) 1 x screw terminal downstream M3) |
| number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | 2 |
| Cable cross section | 0.0002…0.009 in² (0.14…6 mm²), solid with cable end 0.0003…0.006 in² (0.2…4 mm²), flexible with cable end 0.0003…0.009 in² (0.2…6 mm²), solid without cable end 0.0003…0.009 in² (0.2…6 mm²), flexible without cable end |
| Tightening torque | 5.3…7.08 lbf.in (0.6…0.8 N.m) |
| Wire stripping length | 0.4 in (9 mm) |
| Tool type | Connection screwdriver Disconnection screwdriver |
| [Ue] rated operational voltage | 1000 V EN/IEC 60947-7-1 600 V CSA 600 V UL |
| Line Rated Current | 32 A EN/IEC 60947-7-1 30 A CSA 30 A UL |
| Material | Polyamide 6/6: insulating case Copper alloy: connector and screw Copper alloy: commoning link Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30 |
| Surface resistance | 1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30 |
| Flame retardance | V0 0.03 in (0.8 mm) UL 94 |
| Net Weight | 0.3 oz (9.4 g) |
| Range compatibility | PrismaSeT G PrismaSeT P PrismaSet HD PrismaSeT Pack 250 PanelSeT Mureva PrismaSeT XS TeSys |
| Product Compatibility | Spacial enclosures |
| Product Certifications | VDE GL CSA DNV |
|---|---|
| Dielectric strength | 1000 V IEC 60243-1 |
| Ambient air temperature for operation | -40…266 °F (-40…130 °C) IEC 60216-1 -40…266 °F (-40…130 °C) VDE 0304-T21 |
| Category | US10CP521715 |
|---|---|
| Discount Schedule | 0CP5 |
| GTIN | 3606480531897 |
| Returnability | Yes |
| Country of origin | DE |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.31 in (0.800 cm) |
| Package 1 Width | 1.93 in (4.900 cm) |
| Package 1 Length | 1.97 in (5.000 cm) |
| Package 1 Weight | 0.317 oz (9.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 1.97 in (5.000 cm) |
| Package 2 Width | 2.36 in (6.000 cm) |
| Package 2 Length | 12.60 in (32.000 cm) |
| Package 2 Weight | 16.614 oz (471.000 g) |
| Unit Type of Package 3 | S06 |
| Number of Units in Package 3 | 10400 |
| Package 3 Height | 29.53 in (75.000 cm) |
| Package 3 Width | 23.62 in (60.000 cm) |
| Package 3 Length | 31.50 in (80.000 cm) |
| Package 3 Weight | 251.433 lb(US) (114.048 kg) |
