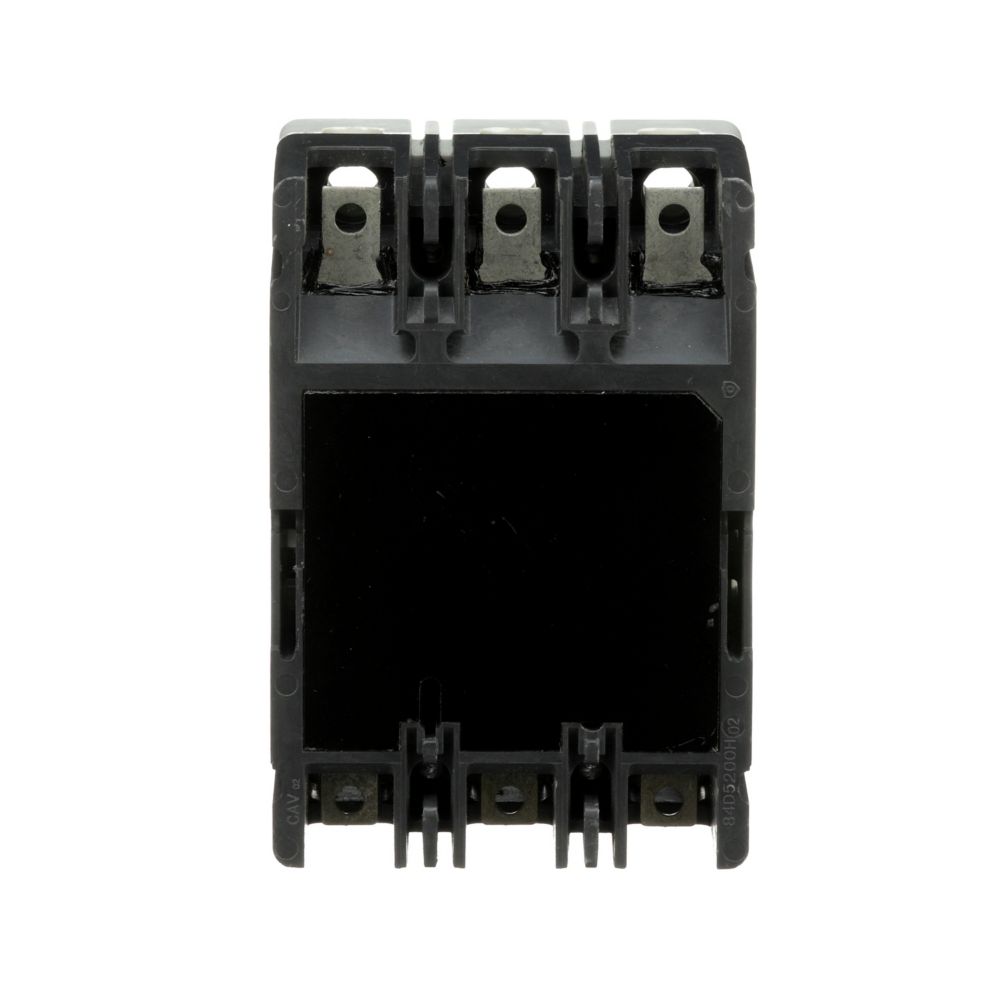

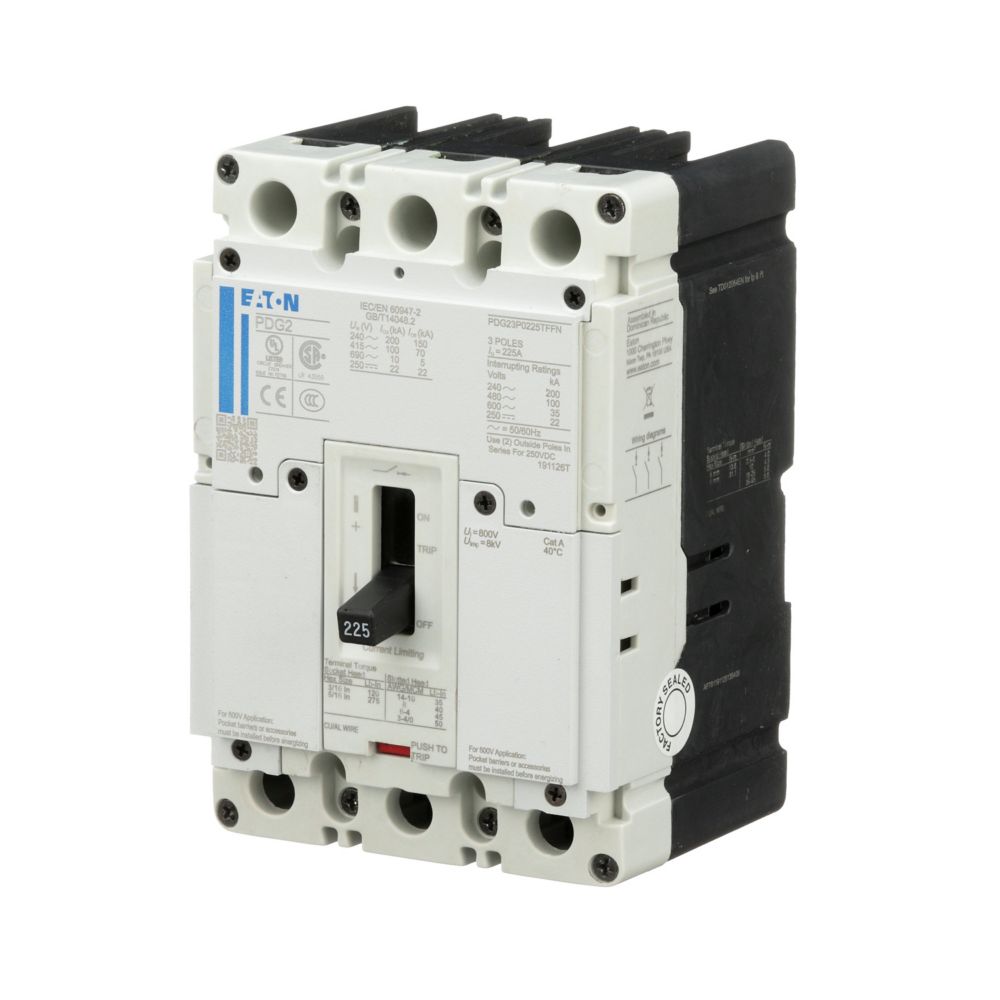

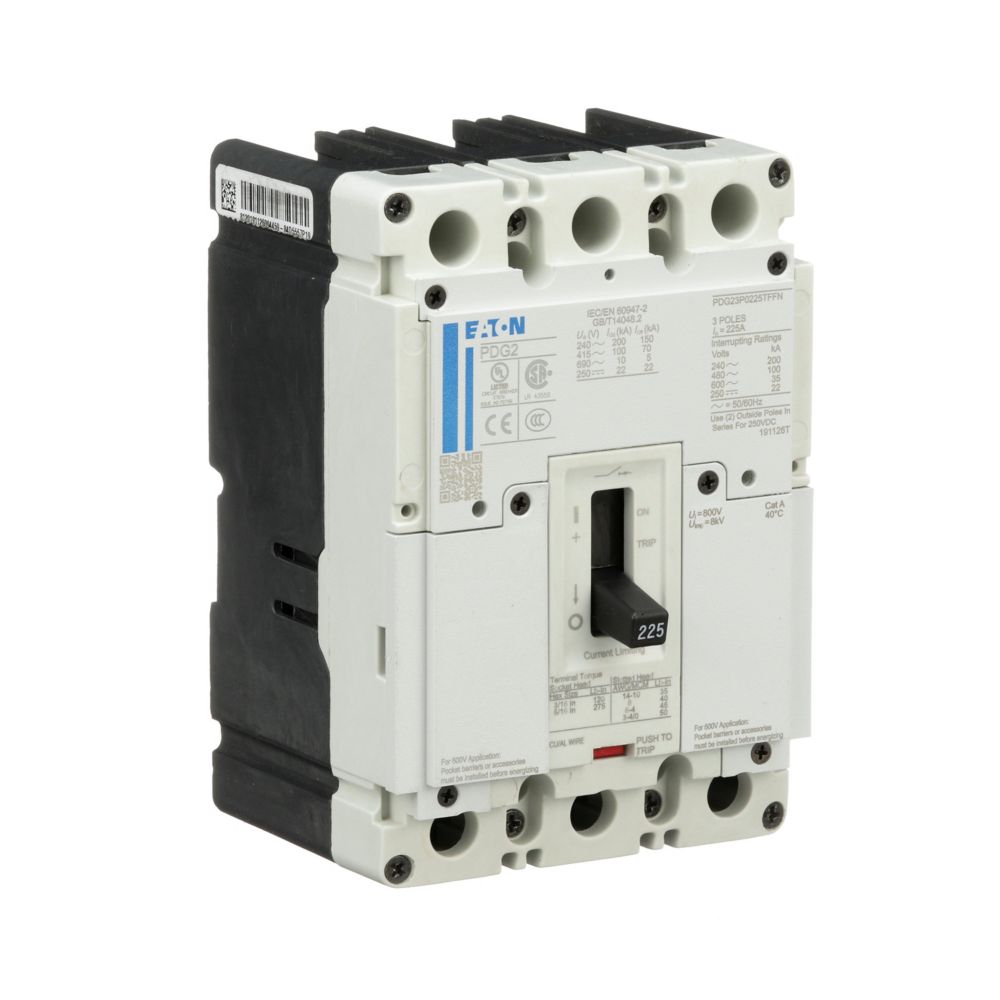

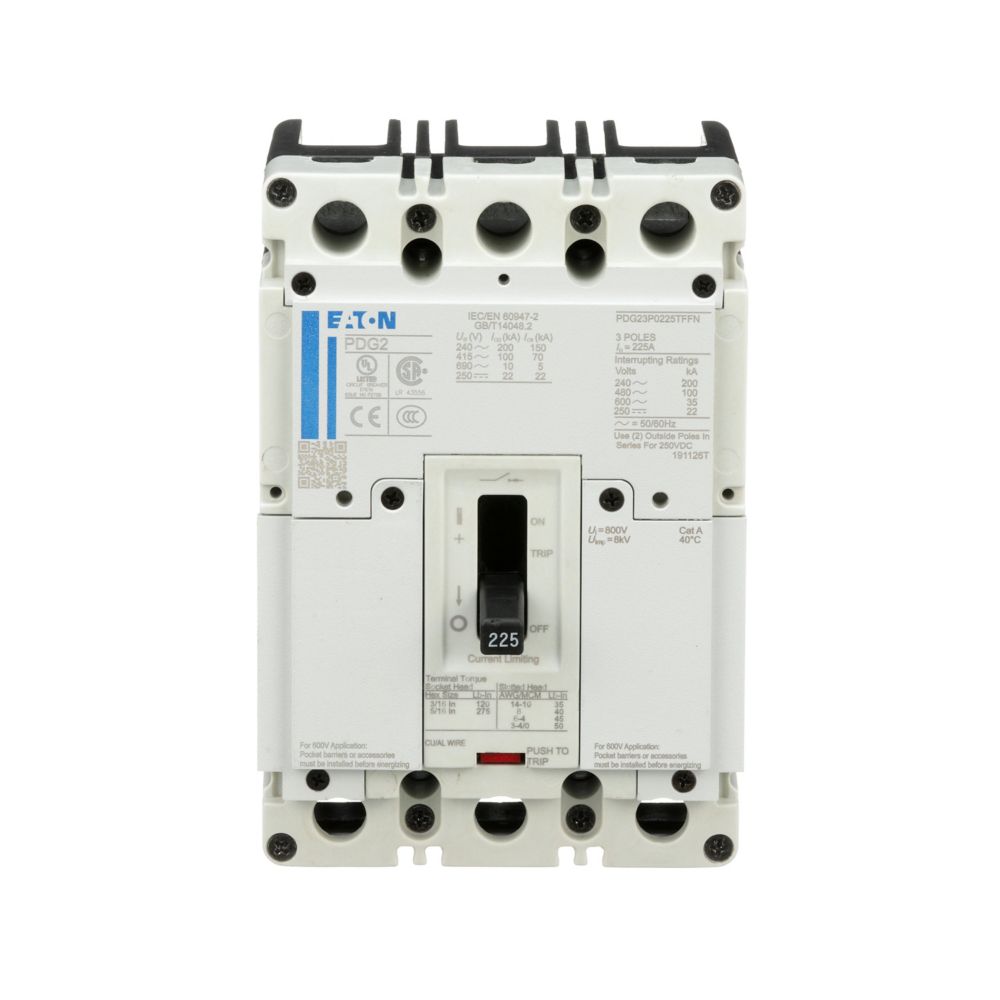

PDG23M0100TFFJ - Eaton Cutler Hammer - 100A Three-Pole Power Defense Circuit Breakers
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Three Pole, 100A, 65kA/480V, T-M (Fxd-Fxd) TU, Standard Line and Load (PDG2X3T100)
GENERAL SPECIFICATIONS
| Product Name | Eaton Power Defense molded case circuit breaker |
| Catalog Number | PDG23M0100TFFJ |
| UPC | 786679278307 |
| Product Length/Depth | 88.9 mm |
| Product Height | 152.4 mm |
| Product Width | 104.6 mm |
| Product Weight | 1.82 kg |
| Compliances | RoHS Compliant |
| Certifications | CSA UL 489 IEC 60947-2 CCC Marked |
| Product Type | Molded case circuit breaker |
DELIVERY PROGRAM
| Amperage Rating | 100 A |
| Circuit breaker frame type | Complete breaker |
| Frame | 2 |
| Number of poles | Three-pole |
GENERAL INFORMATION
| Circuit breaker type | PD2 Global |
| Class | Class A |
| Trip Type | T298 |
TECHNICAL DATA - ELECTRICAL
| Voltage rating | 600 Vac |
TECHNICAL DATA - MECHANICAL - TERMINAL
| Terminals | Standard Line and Load |
TECHNICAL INFORMATION
| Interrupt rating | 65 kAIC at 480 Vac |
| Interrupt rating range | 100 kAIC @240V (UL) 22 kAIC Icu @125 Vdc 30/25 kAIC Icu/ 15/13 kAIC Ics @525V South Africa (IEC) 65 kAIC @480V (UL) 10 kAIC Icu/ 5 kAIC Ics/ 21 kAIC Icm @690V (IEC) 50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC) 50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC) 22 kAIC Icu @250 Vdc 70 kAIC Icu/ 53 kAIC Ics/ 154 kAIC Icm @380-415V (IEC) 35 kAIC @600V (UL/CSA) 100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC) |
